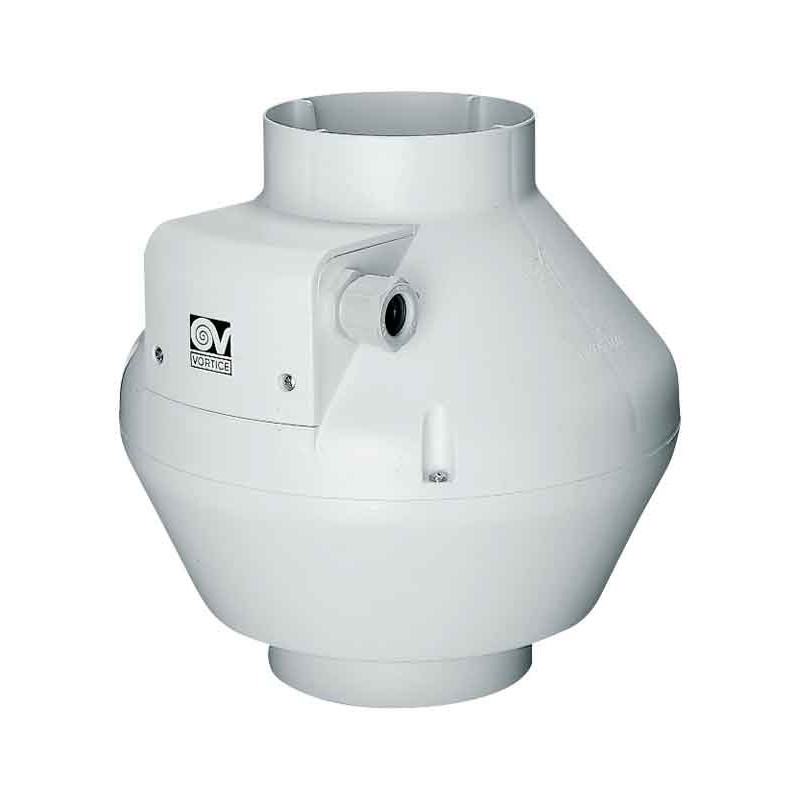

Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008


VOR 0000016008 8010300160085

Air and odor aspirator Vortice model CA 100 V0 D centrifugal resin self-extinguishing resin In Line, Rated diameter 100 mm.

Request info about this product

Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008

€177.43
€177.43

Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008

€177.43
Tax included
klarna Pay in installments with Klarna
qty

Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008

€177.43

Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Self-extinguishing PP thermoplastic resin structure V0
  • Rated diameter 100 mm
  • 3-speed fan with optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support

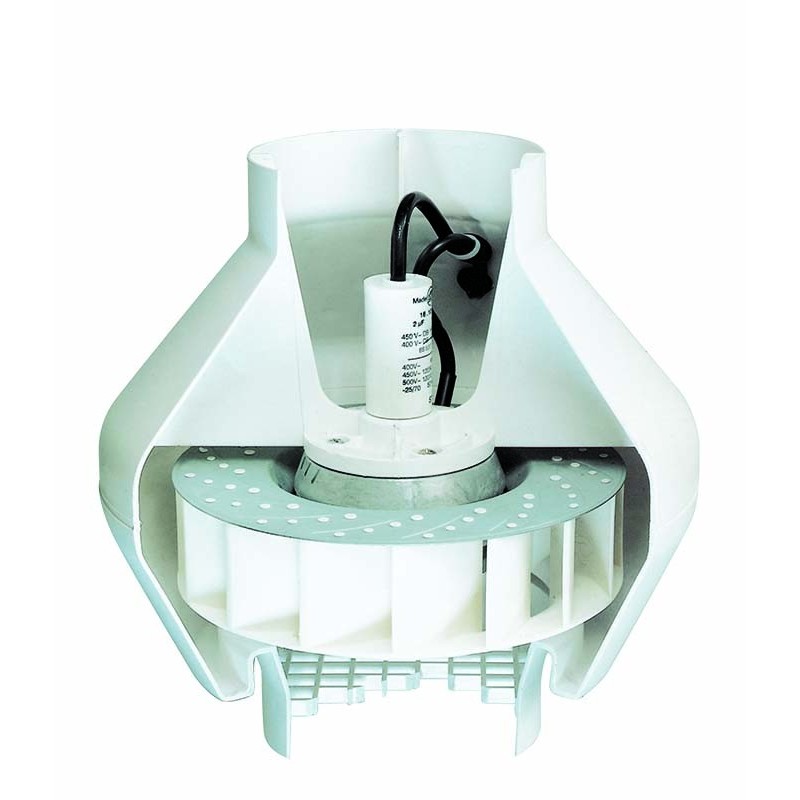

  • Centrifugal impeller with inverted blades
  • Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
  • Metal brackets for wall mounting in galvanized steel.



Technical specifications:

  • Max. current consumption at max. speed (A) 0.22
  • Max. current consumption at min. speed (A) 0,14
  • Rated Duct Diameter (mm) 100
  • Frequency (Hz) 50
  • IP X4 Degree of Protection
  • Insulation Class II
  • Ø Exhaust (mm) 97
  • Weight (Kg) 2.4
  • Power consumption max (W) 50
  • Max. power consumption at min. speed (W) 14
  • Max. ambient temp. continuous operation (°C) 50
  • Voltage (V) 220-240
  • Max flow rate at max speed (l/s) 69.7
  • Max. flow rate at max. speed (m³/h) 251
  • Max. flow rate at min. speed (l/s) 24
  • Max. flow rate at min. speed (m³/h) 85
  • Max pressure at max speed (Pa) 366
  • Max. pressure at min. speed (mmH2O) 27
  • Max. pressure at min. speed (Pa) 269
  • Sound pressure Lp [dB (A)] 3m - max vel 56 db

Data sheet

Diameter:
100
Type:
Centrifugal fans
