Vortice Axial Centrifugal Vacuum Cleaner 250 16166


VOR 0000016166 8010300161662

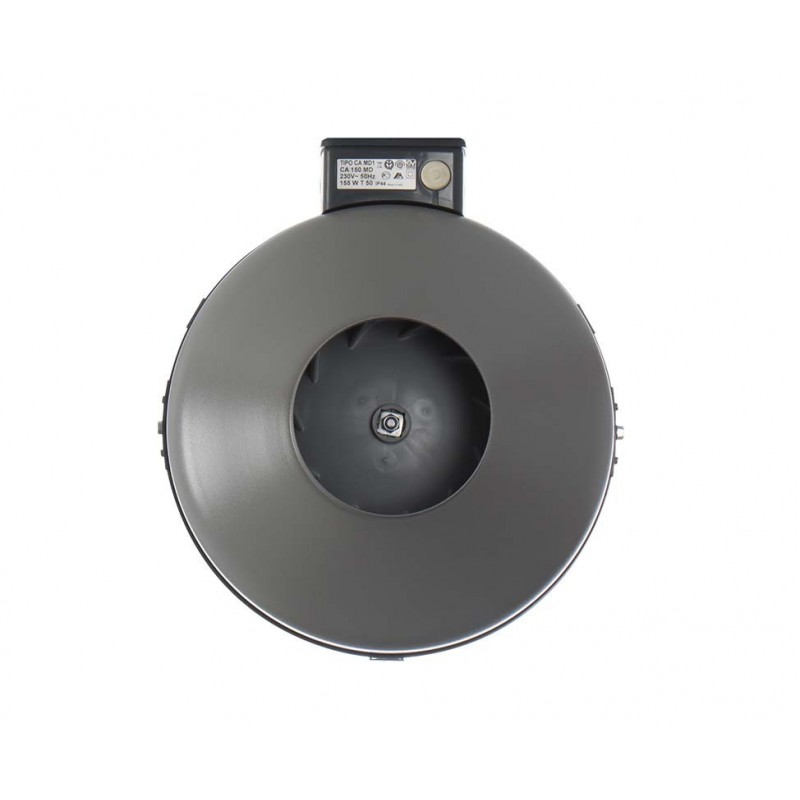

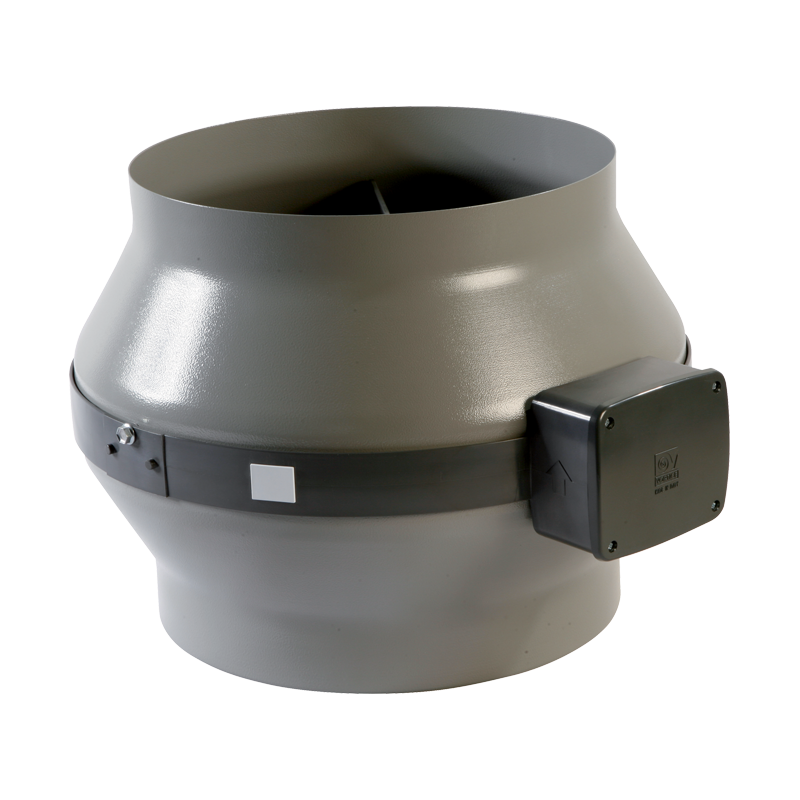

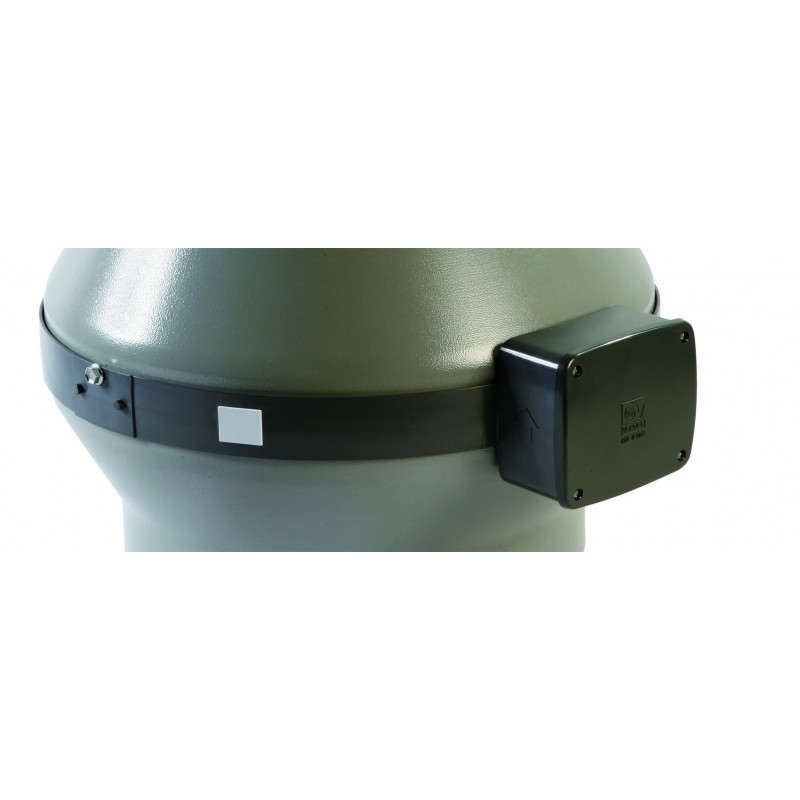

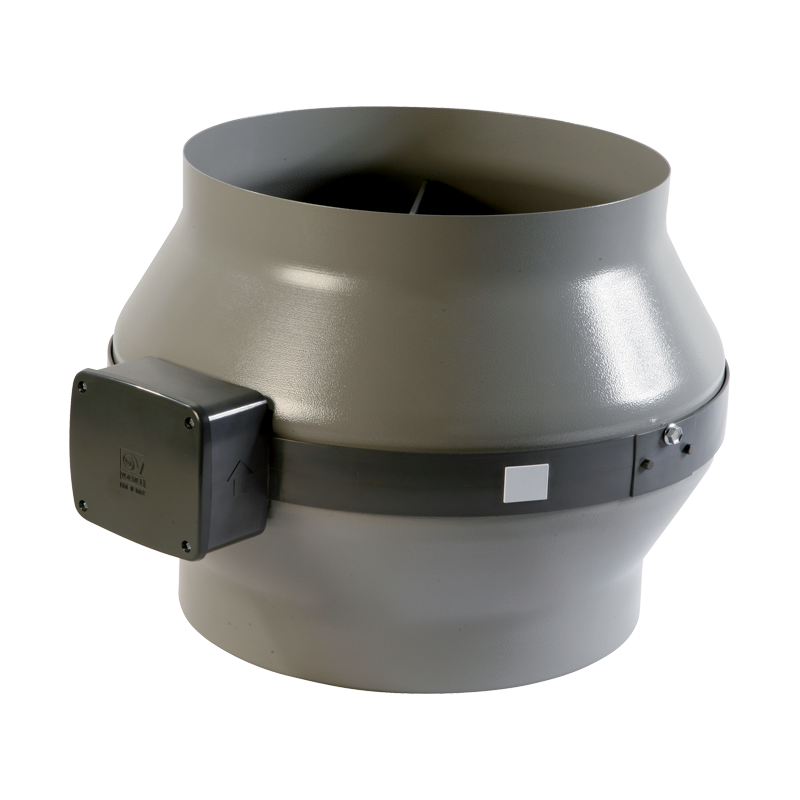

Air and odor extractor fan Vortice model CA 250 MD E axial centrifugal steel duct, Rated diameter 250 mm.

Request info about this product

Vortice Axial Centrifugal Vacuum Cleaner 250 16166

€504.43
€504.43

Vortice Axial Centrifugal Vacuum Cleaner 250 16166

€504.43
Tax included
klarna Pay in installments with Klarna
qty

Vortice Axial Centrifugal Vacuum Cleaner 250 16166

€504.43

Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
  • Rated diameter 250 mm
  • 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor with external rotor, thermally protected, with shaft mounted on ball bearing support, reverse blade centrifugal impeller
  • Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
  • Metal brackets for wall mounting in galvanized steel.

Technical specifications:

  • Max. current consumption at max. speed (A) 0,53
  • Max. current consumption at min. speed (A) 0.51
  • Rated Duct Diameter (mm) 250
  • Frequency (Hz) 50-60
  • IP 44 Degree of Protection
  • Insulation Class II
  • Weight (Kg) 7.6
  • Power consumption max 60Hz (W) 175
  • Max. power consumption at max speed (W) 120
  • Max. power consumption at min speed (W) 58
  • Max. ambient temp. continuous operation (°C) 50
  • Voltage (V) 220-240
  • Max. flow rate at max. speed (l/s) 278
  • Max flow rate at max speed (m³/h) 1000
  • Max. flow rate at min. speed (l/s) 167
  • Max. flow rate at min. speed (m³/h) 600
  • Max pressure at max speed (mmH2O) 53
  • Max pressure at max speed (Pa) 520
  • Max. pressure at min. speed (mmH2O) 42
  • Max pressure at min speed (Pa) 412
  • Sound pressure Lp [dB (A)] 3m - max vel 52.7
  • Sound pressure Lp [dB (A)] 3m - min vel 38.3
  • RPM max 1615
  • RPM min 2660



Data sheet

Diameter:
250
Type:
Centrifugal fans
