Vortice Axial Centrifugal Vacuum Cleaner 200 16165
VOR 0000016165
8010300161655

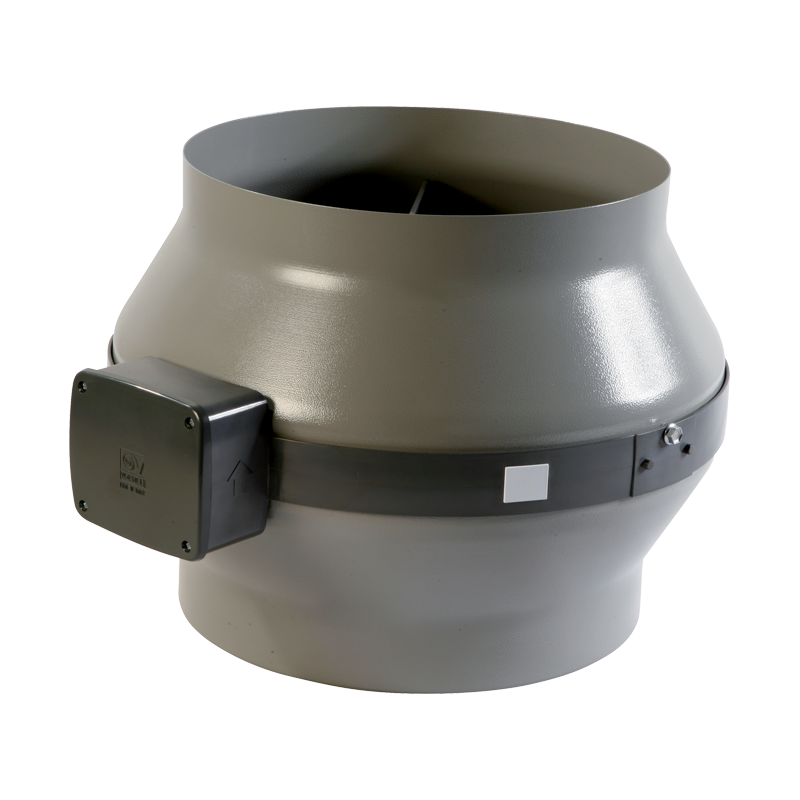

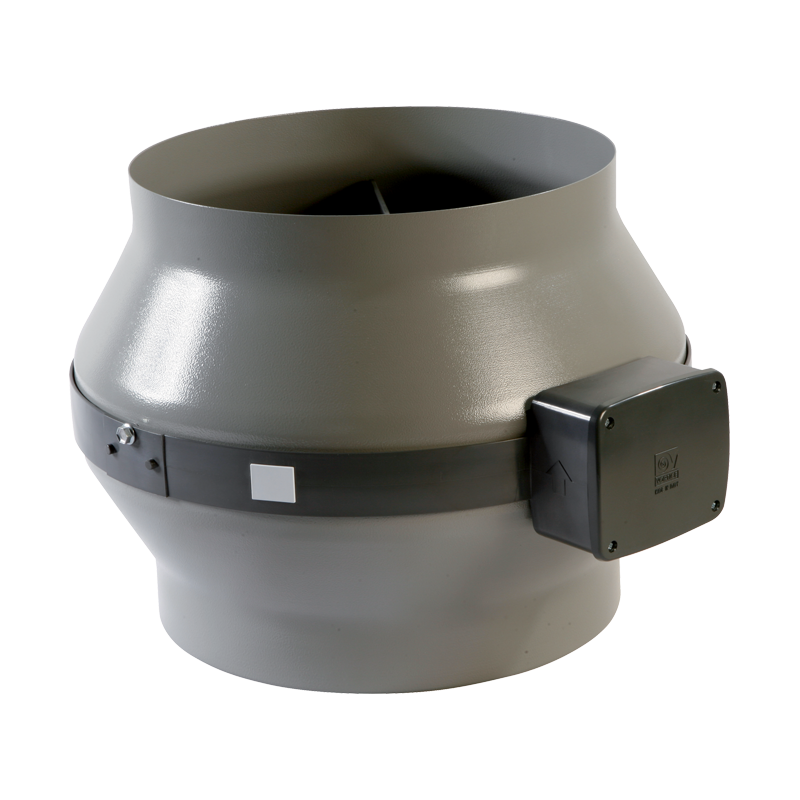

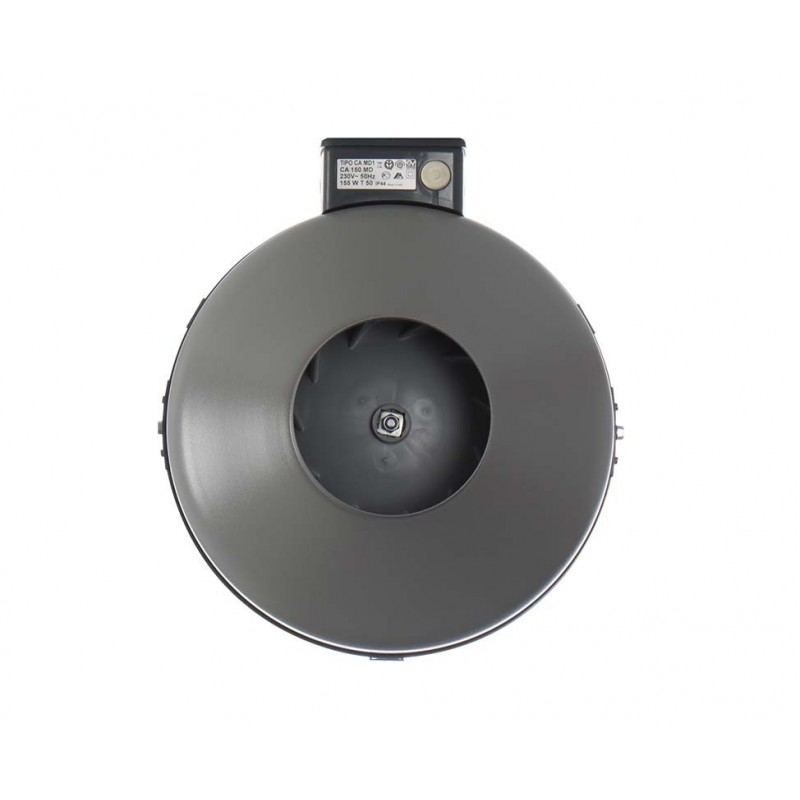

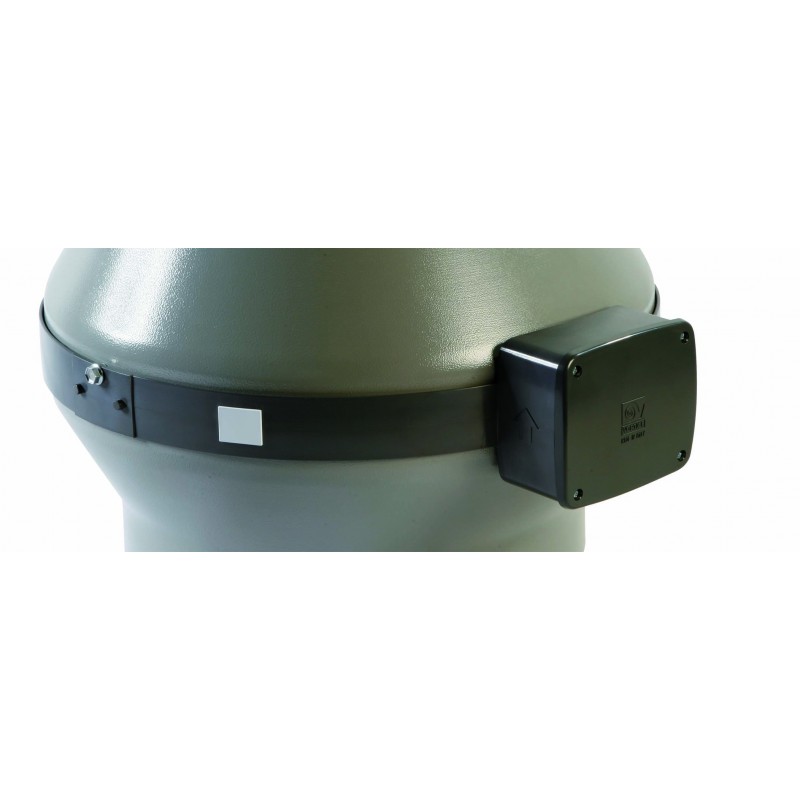

Air and odor aspirator Vortice model CA 200 MD E axial duct axial duct steel in Line, Rated diameter 200 mm.
€367.78
Items Available: 15
: 2
Frequently bought together
Features:
- Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
- Rated diameter 200 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor with external rotor, thermally protected, with shaft mounted on ball bearing support, reverse blade centrifugal impeller
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
- Metal brackets for wall mounting in galvanized steel.
Technical specifications:
- Max. current consumption at max. speed (A) 0,40
- Max. current consumption at min. speed (A) 0,37
- Rated Duct Diameter (mm) 200
- Frequency (Hz) 50-60
- IP 44 Degree of Protection
- Insulation Class II
- Weight (Kg) 6
- Power consumption max 60Hz (W) 115
- Max. power consumption at max speed (W) 90
- Max. power consumption at min speed (W) 45
- Max. ambient temperature continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 231
- Max. flow rate at max. speed (m³/h) 830
- Max. flow rate at min. speed (l/s) 139
- Max. flow rate at min. speed (m³/h) 500
- Max pressure at max speed (mmH2O) 46
- Max pressure at max speed (Pa) 451
- Max. pressure at min. speed (mmH2O) 42
- Max. pressure at min. speed (Pa) 412
- Sound pressure Lp [dB (A)] 3m - max vel 48.1
- Sound pressure Lp [dB (A)] 3m - min vel 36.2
- RPM max 2610
- RPM min 1610
Data sheet
- Diameter: 200
- Type: Centrifugal fans
