Vortice Axial Centrifugal Vacuum Cleaner 150 16163
VOR 0000016163
8010300161631

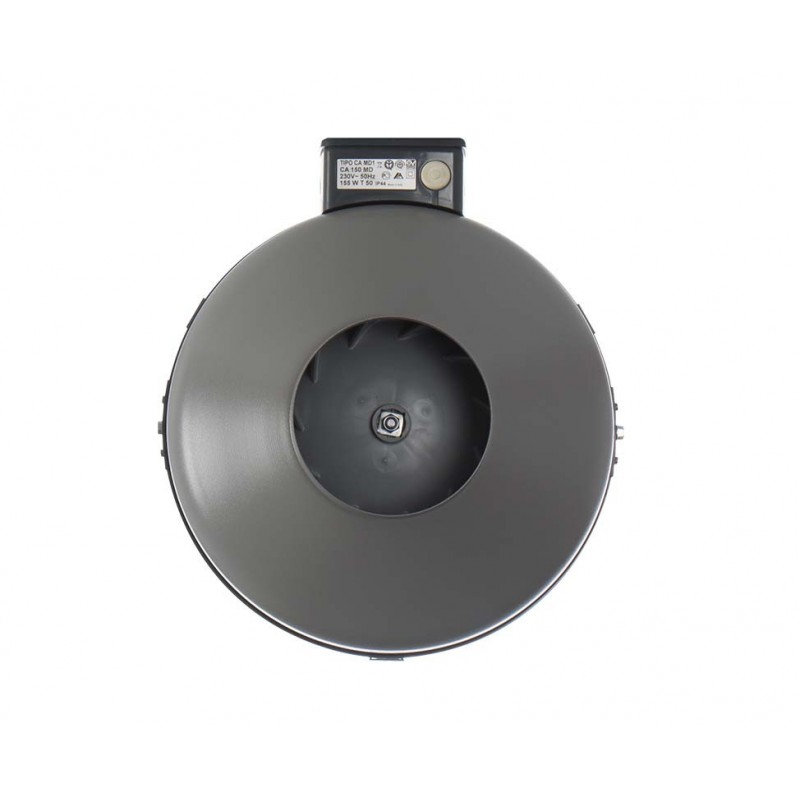

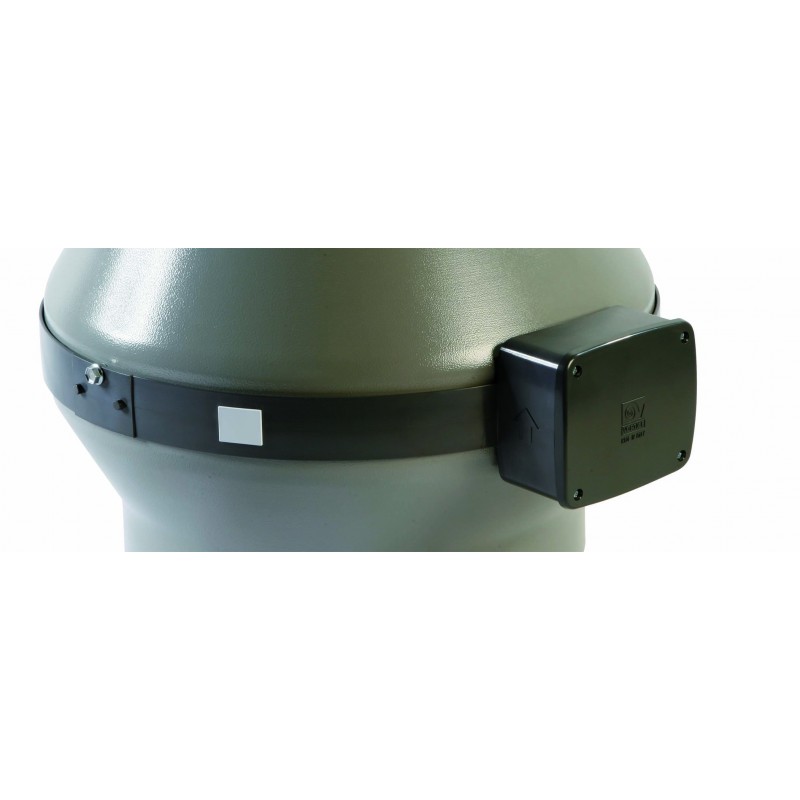

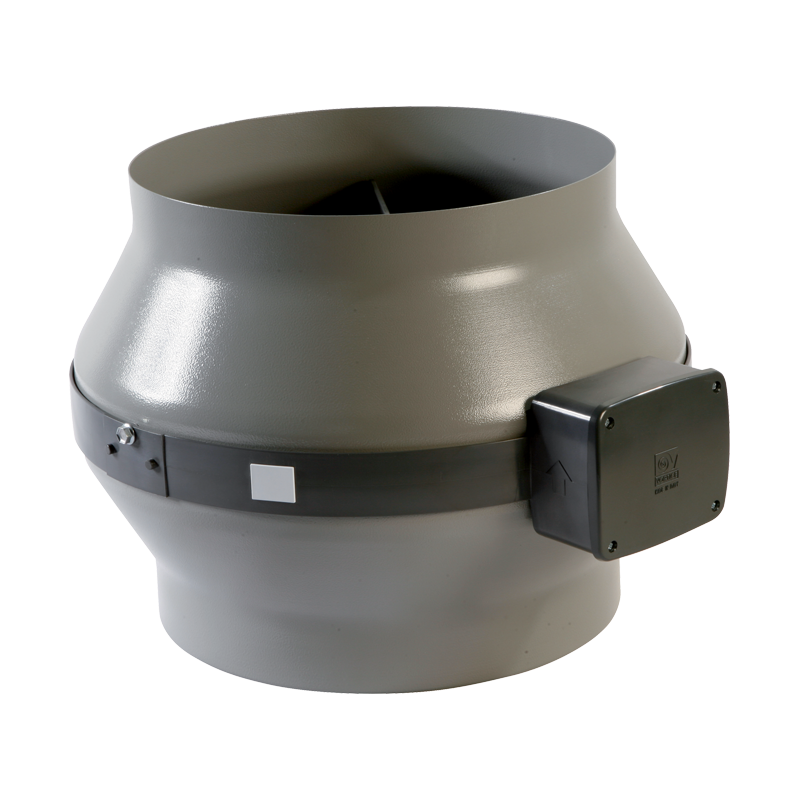

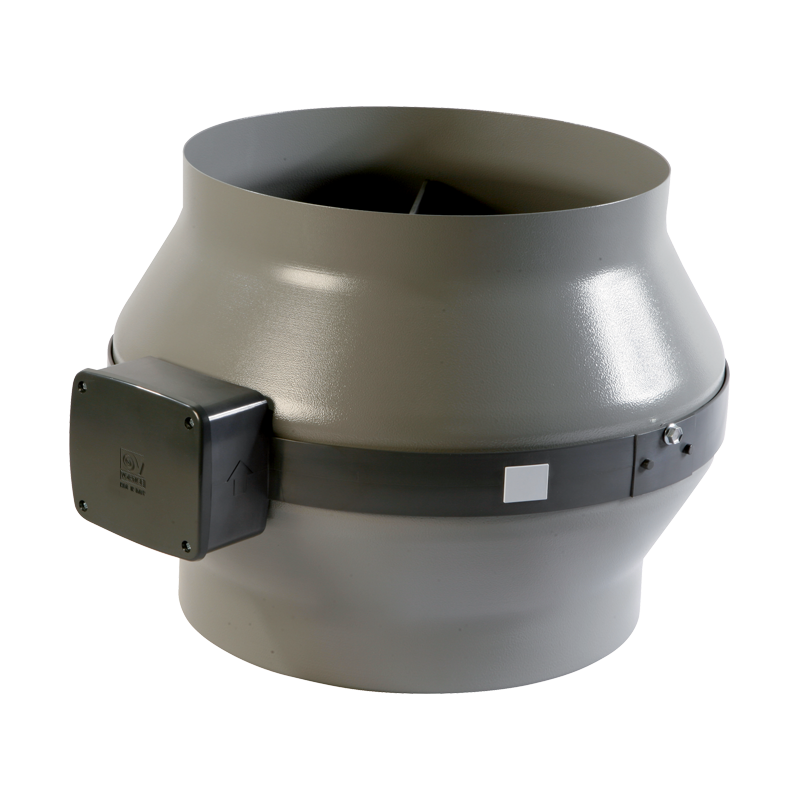

Air and odor aspirator Vortice model CA 150 MD E axial centrifugal steel duct, Rated diameter 150 mm.
€240.66
Items Available: 17
: 2
Frequently bought together
Features:
- Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
- Rated diameter 150 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor with external rotor, thermally protected, with shaft mounted on ball bearing support, reverse blade centrifugal impeller
- Can be connected to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
- Metal brackets for wall mounting in galvanized steel.
Technical specifications:
- Max absorbed current at max speed (A) 0,38
- Max. current consumption at min. speed (A) 0,37
- Rated Duct Diameter (mm) 150
- Frequency (Hz) 50-60
- IP 44 Degree of Protection
- Insulation Class II
- Weight (Kg) 4.9
- Power consumption max 60Hz (W) 115
- Max. power consumption at max speed (W) 85
- Max. power consumption at min speed (W) 45
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 153
- Max. flow rate at max. speed (m³/h) 550
- Max. flow rate at min. speed (l/s) 94
- Max. flow rate at min. speed (m³/h) 340
- Max pressure at max speed (mmH2O) 45
- Max. pressure at max. speed (Pa) 441
- Max. pressure at min. speed (mmH2O) 40
- Max. pressure at min. speed (Pa) 392
- Sound pressure Lp [dB (A)] 3m - max vel 53.2
- Sound pressure Lp [dB (A)] 3m - min vel 42.4
- RPM max 2670
- RPM min 1775
Data sheet
- Diameter: 150
- Type: Centrifugal fans
