Vortice Automatic Axial fan with Timer 120 11331
VOR 0000011331
8010300113319

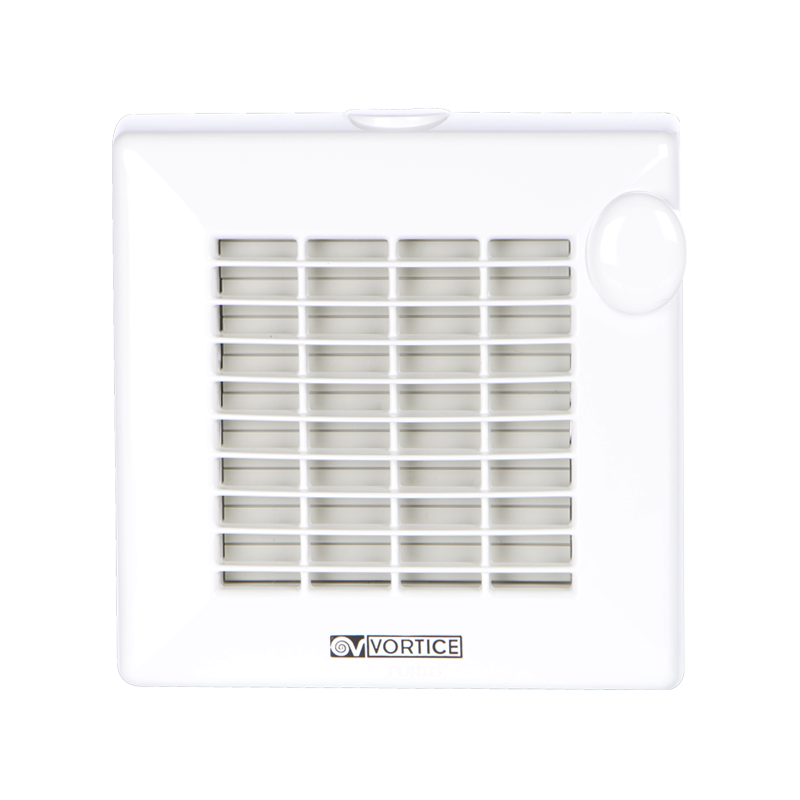

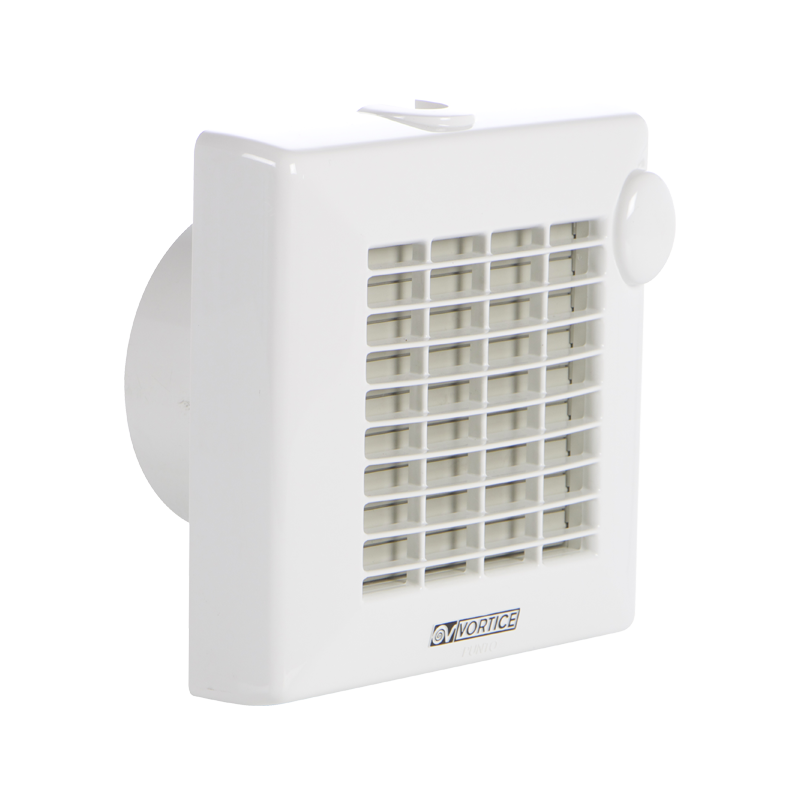

Vortice Axial fan model M 120/5" AT (Automatic with Timer) from Wall with electrically opening and closing fins and adjustable TIMER 3-20 minutes, White colour, Rated diameter 120 mm.
Vortice Automatic Axial fan with Timer 120 11331
€143.44
€143.44
Tax included
Tax included
Pay in installments with Klarna
Items Available: 14
Frequently bought together
Features:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Rated diameter 120 mm

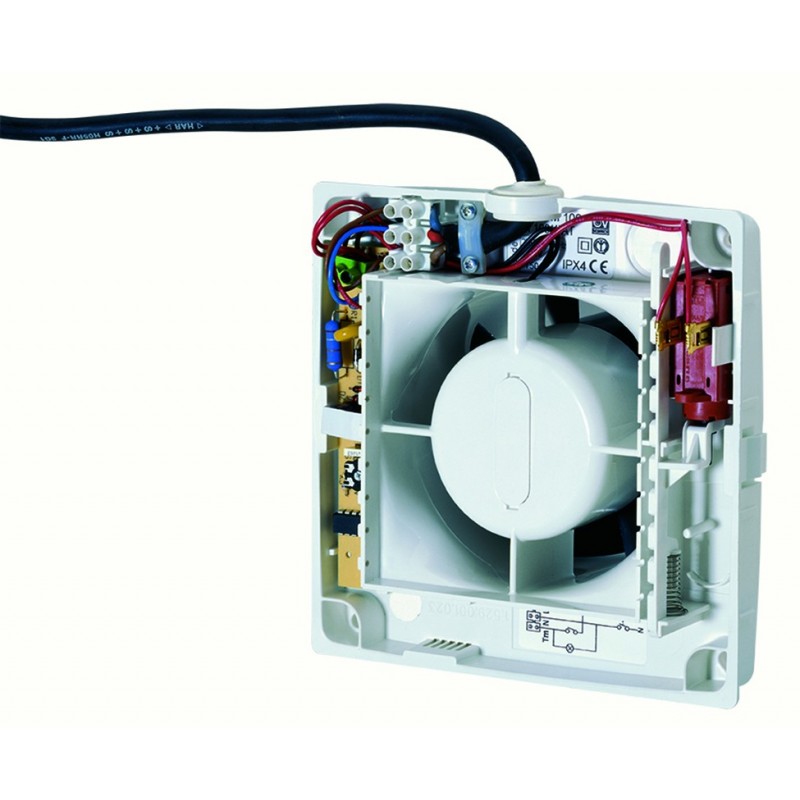

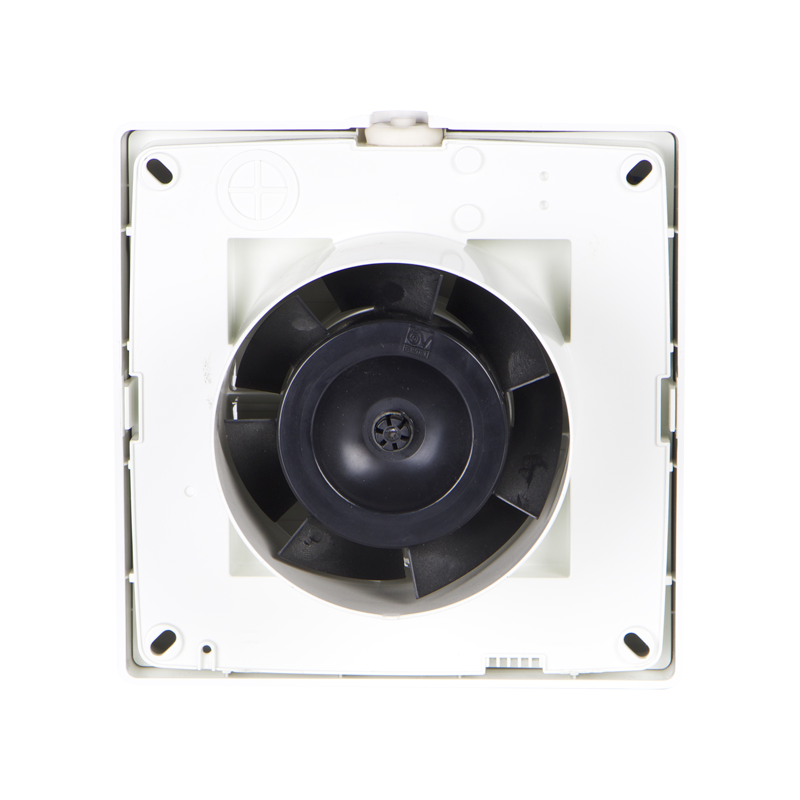

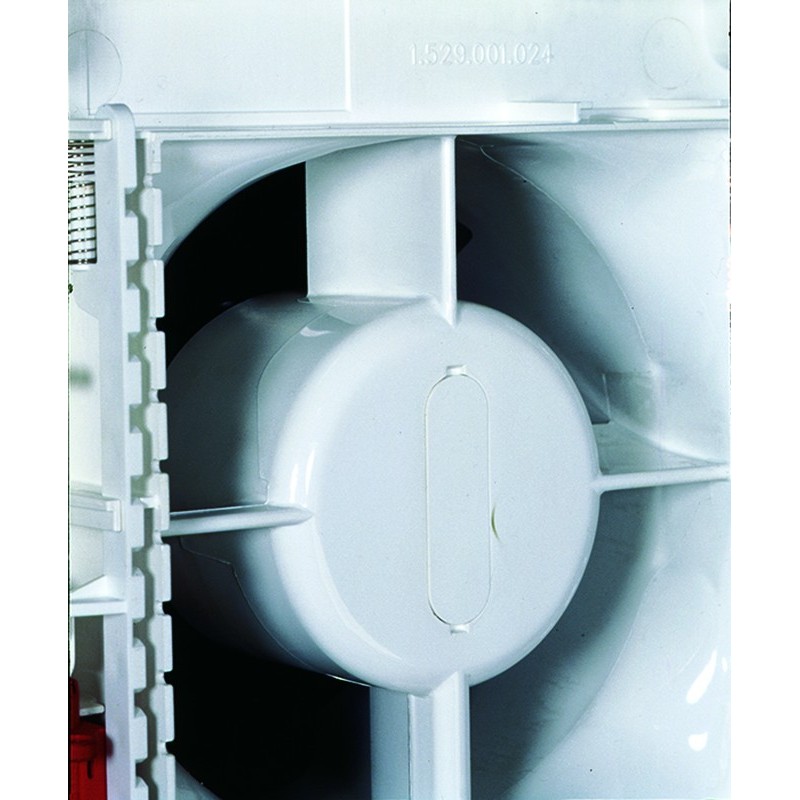

- Thermally protected motor with shaft on self-lubricating bushings supports, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 175 m3/h
- Equipped with electronic timer for the automatic shutdown of the product after a preset time that can be set, during installation, in the interval 3'-20' (default setting 3').
- Equipped with automatic opening and closing system of the front grille flaps
- Safety and performance certified IMQ and IMQ PERFORMANCE.
Technical specifications:
- Automatic Wing Opening
- Current consumption max (A) 0.12
- Rated Duct Diameter (mm) 120
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation 2nd class
- Ø Exhaust (mm) 119
- Weight (Kg) 0.8
- Power consumption max (W) 20
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate (l/s) 48.6
- Max flow rate (m³/h) 175
- Max pressure (mmH2O) 4.5
- Max pressure (Pa) 44
- Sound Pressure Lp [dB (A)] 3m 39.5
- RPM 2100
Data sheet
- Diameter:
- 120
- Type:
- Axial fans
- Functions:
- Fins and Timer
