Vortice Concealed Axial fan 120 11116
VOR 0000011116
8010300111162

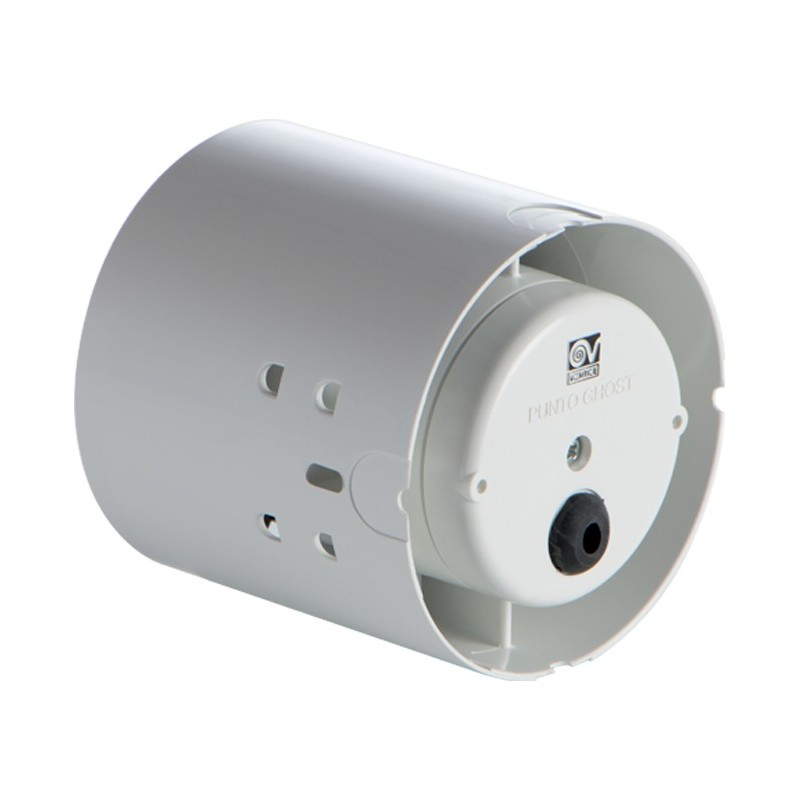

Vortice air and odour extractor fan model MG 120/5" in line axial flush mounted, rated diameter 120 mm.
Vortice Concealed Axial fan 120 11116
€46.23
€46.23
Tax included
Tax included
Pay in installments with Klarna
Items Available: 32
Frequently bought together
Features:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Nominal diameter 120 mm
- Thermally protected motor with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 160 m3/h
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulators.
Technical specifications:
- Current consumption max (A) 0.12
- Nominal Duct Diameter (mm) 120
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation II class
- Weight (Kg) 0,56
- Power consumption max (W) 20
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate (m³/h) 160
- Max pressure (mmH2O) 4.5
- Max pressure (Pa) 44
- Sound Pressure Lp [dB (A)] 3m 43 db
l’aspiratore che cercavo per sostituire un vecchio modello, ormai a fine vita.
Cercavo un modello “invisibile”, su elettronews sono riuscito a scegliere quello più idoneo
Ottimo prodotto per il rapporto qualità prezzo
Data sheet
- Diameter:
- 120
- Type:
- Axial fans
