Elicent Axial fan ELEGANCE Diameter 100 2EL0000
ELI 2EL0000
8016510034888

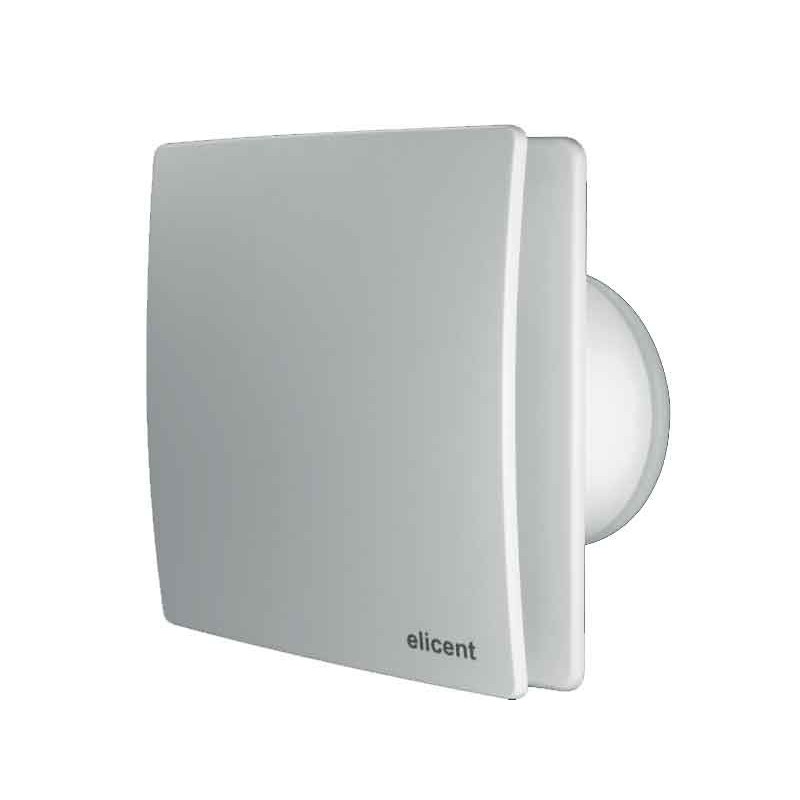

Air and odour exhaust fan Elicent model ELEGANCE 100 / BASE helical duct exhaust with smooth frontal design
Elicent Axial fan ELEGANCE Diameter 100 2EL0000
€48.11
€48.11
Tax included
Tax included
Pay in installments with Klarna
Items Available: 63
ELEGANCE is a complete series of helical vacuum cleaners suitable for classic direct ejection or in short ducts and for intermittent or continuous operation. Installable on the wall or ceiling, they are particularly efficient in the extraction of stale air from small and medium residential and commercial environments and in rooms where protection against water splashes is required, as indicated in current standards (CEI 64/8).
Features:
- Innovative design with smooth front and perimeter suction
- Advanced profile designed to improve the fluid dynamic performance of the product
- Equipped with anti-turbulence deflectors (Maico patent) that optimize performance and promote a homogeneous perception of sound frequencies
- Complete with sturdy non-return damper with anti-tilt system that prevents the return of air (this component can be removed in case of installation with external gravity grille)
- 230V-50 Hz induction motor with high magnetic permeability and thermal protection suitable for continuous duty.
- Long Life Bearings 30,000 hours that ensure durability
- Structure made of high quality antistatic technopolymers
- Activation / switching off via light switch or separate
- Protected against splash water (IPX4)
- Made of double insulation: no grounding required
- Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU standards
Technical specifications:
- Max flow rate 90 cubic meters/h
- Pressure Max 41 Pa
- Power 14 W
- Sound pressure (at 3 meters) 31.4 db (A)
- IPX4 degree of protection
- Activation / switching off by light switch or separate
Data sheet
- Diameter:
- 100
- Type:
- Axial fans
