Vortice Axial fan A-E 404 T 42261
VOR 0000042261
8010300422619

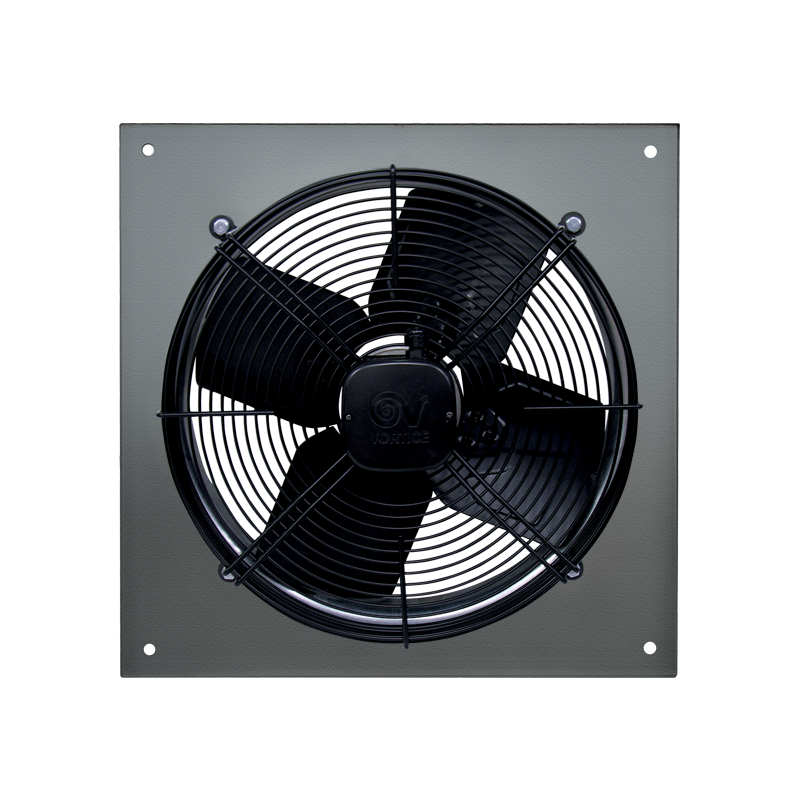

Air and odour Axial fan Vortice model A-E 404 T, wall mounted, Rated diameter 400 mm.
Vortice Axial fan A-E 404 T 42261
€549.98
€549.98
Tax included
Tax included
Pay in installments with Klarna
Items Available: 6
Frequently bought together
Features:
- Panels, pressed in phosphated steel sheet, painted with grey epoxy powder with hammered effect to guarantee resistance over time to atmospheric agents.
- Mouthpiece, made up of a single body with panels, calibrated to optimise airflow, with an elongated aerodynamic profile to optimise performance and facilitate connection to the supply air duct.
- Protection grille (conforming to UNI ISO 13857), integral to the motor support function, made of electrowelded steel rings painted with black epoxy paint. The simple removal facilitates the maintenance and cleaning of the fan.
- Three-phase AC motor with 1 speed, external rotor type to minimize axial encumbrance, with shaft mounted on ball bearing supports, class F, thermo-protected
- Maximum flow rate 3832 m3/h

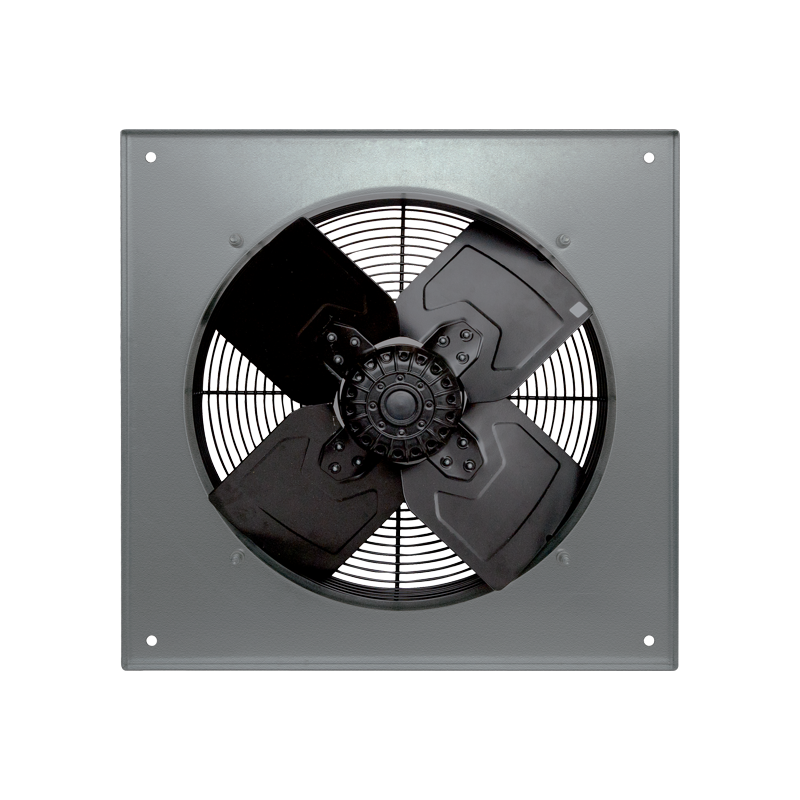

- Dynamically balanced impeller (UNI ISO 1940, Point 1 - Class 6.3); 4 electro-galvanized sheet steel stamped blades and polyester powder coated in black colour
- Speed controllable by Vortex regulator.
Technical specifications:
- Current consumption max (A) 0.65
- Rated Duct Diameter (mm) 400
- Frequency (Hz) 50
- IP 54 degree of protection
- Insulation 1st class
- Phase Number (Ph) 3
- Number Poles 4
- Weight (Kg) 6.3
- Max. power consumption (W) 318
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 380-415
- Max. flow rate (l/s) 1064
- Max. flow rate (m³/h) 3832
- Sound power Lw [dB(A)] 73.5
- Max pressure (Pa) 246
- Max pressure at max speed (mmH2O) 25
- Sound pressure Lp in free field [dB(A)] 1 m 53
- Sound pressure Lp in free field [dB(A)] 3 m 62.5
- RPM 1400
Data sheet
- Diameter:
- 406
- Type:
- Axial fans
