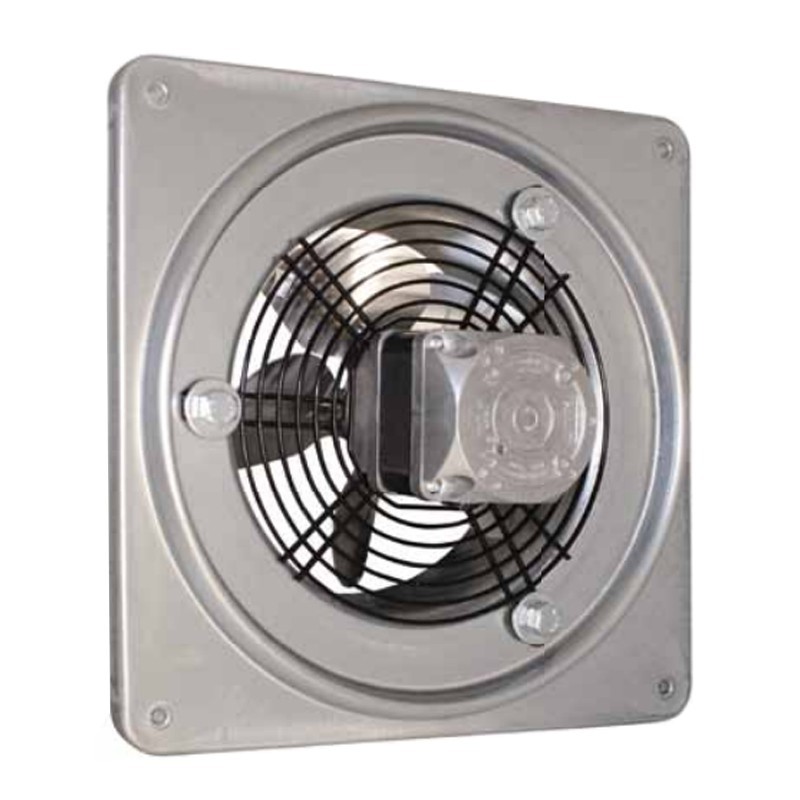

Elicent Light Weight Axial Fan IES 250 1EL0250
ELI 1EL0251
9000005812333
Axial air and odour exhaust fan Elicent model IES 250 with direct expulsion Flow rate for small flow rates and small rooms such as: storerooms, warehouses, cellars, workshops, etc..
Elicent Light Weight Axial Fan IES 250 1EL0250
€144.94
€144.94
Tax included
Tax included
Pay in installments with Klarna
Items Available: 4
For construction and performance characteristics the IES series can only be used for direct ejection. The air sucked in must not be dusty or corrosive.
Features:
- Small helical aspirators for direct external expulsion
- Wall or panel installation
- Suitable for clean air with temperature from -10°C to 40°C
- Compactness, lightness and extreme practicality of installation
Construction:
- Pressed and drawn galvanized sheet metal bearing frame, with wide suction radius
- Moulded aluminium impeller, suitably shaped to ensure maximum aeraulic performance
- Execution 5 (direct coupling with cantilevered impeller). Air flow from motor to impeller
- Protective net on motor side, in drawn and painted steel rod
- Made to UNI EN ISO 12499 standards
- Shielded pole motor, single-phase, IP20, class B, with power cable and built-in thermal protection. S1 service (continuous operation at constant load).
Technical characteristics:
- Max flow rate 1015 cubic meters/h
- Voltage at 50 Hz 230V
- Current consumption 0.42 A
- Power 60 W
- Speed 1300 rpm
- 4 Poles
- IP20 degree of protection
- Engine class B
- Sound data (at 3 meters) 37.8 Lp - 55.3 Lw
Non c'è niente da migliorare va bene così.
grazie per tutto
cordiali saluti
santo samperi
Ventola efficiente, buona la silenziosità.
Ottimo prodotto, come da caratteristiche tecniche
Tutto ok ottimo acquisto già collaudato
Data sheet
- Diameter:
- 265
- Type:
- Axial fans
