Vortice fan wire stitch MF diameter 90 white colour 11122
VOR 0000011122
8010300111223

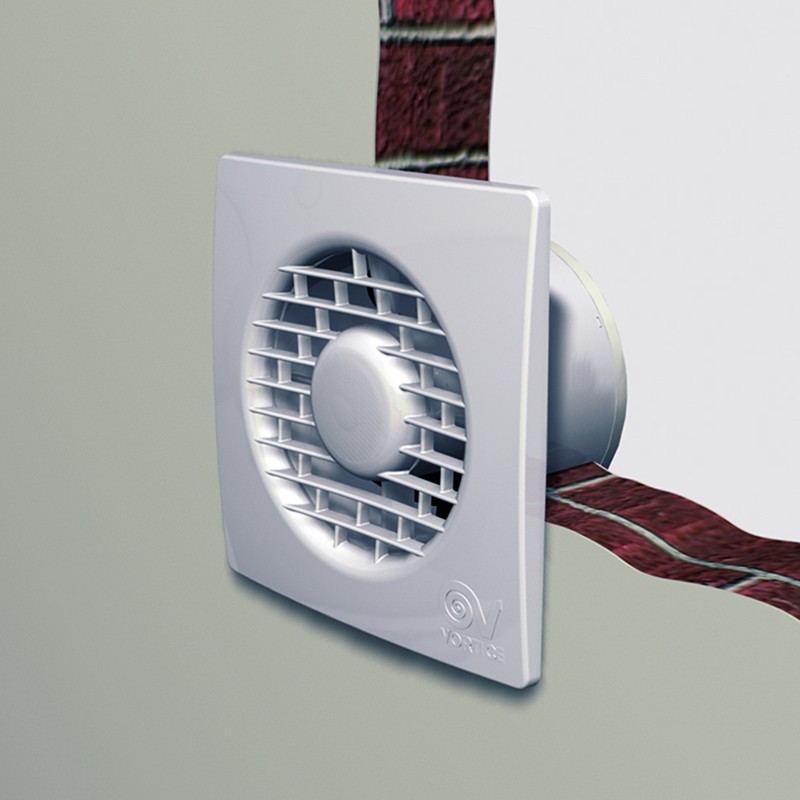

Vortice fan Wall mounted wire point MF diameter 90/3.5 white colour, wall application
Vortice fan wire stitch MF diameter 90 white colour 11122
€45.55
€45.55
Tax included
Tax included
Pay in installments with Klarna
Items Available: 128
Frequently bought together
Features:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Nominal diameter 90 mm
- Thermally protected motor, with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 65 m3/h

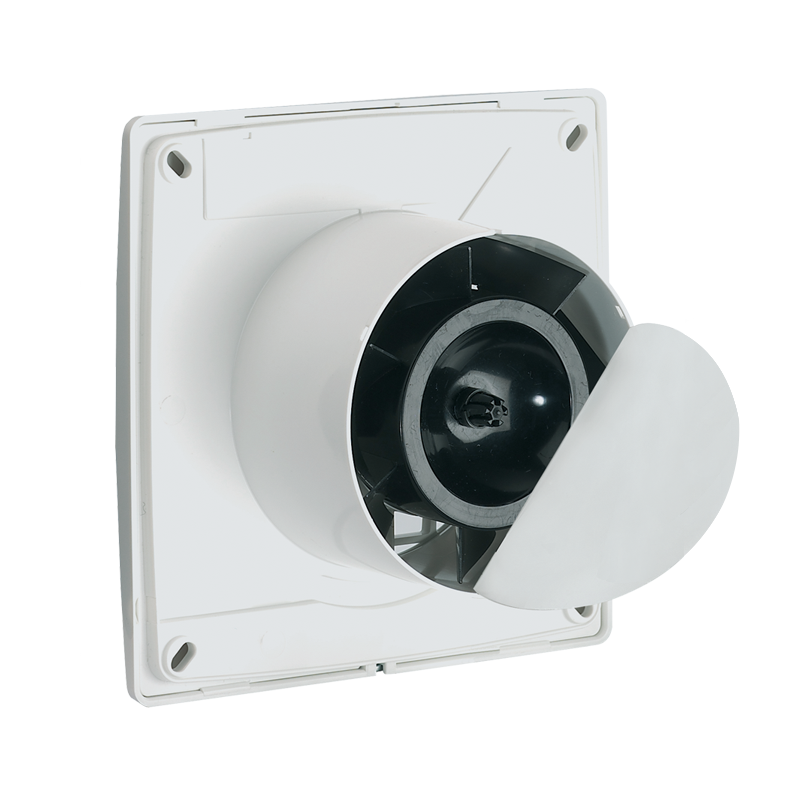

- Anti-return valve applied to the delivery port
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical specifications:
- Current consumption max (A) 0.08
- Nominal Duct Diameter (mm) 90
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Exhaust (mm) 92.5
- Weight (Kg) 0.50
- Power consumption max (W) 14
- Max. ambient temperature continuous operation (°C) 50
- Voltage (V) 220-240
- Minute revolutions 2500
- Max flow rate (m³/h) 65
- Max pressure (mmH2O) 2.5
- Max pressure (Pa) 25
- Sound Pressure Lp [dB (A)] 3m 28.8
Data sheet
- Diameter:
- 90
- Type:
- Axial fans
