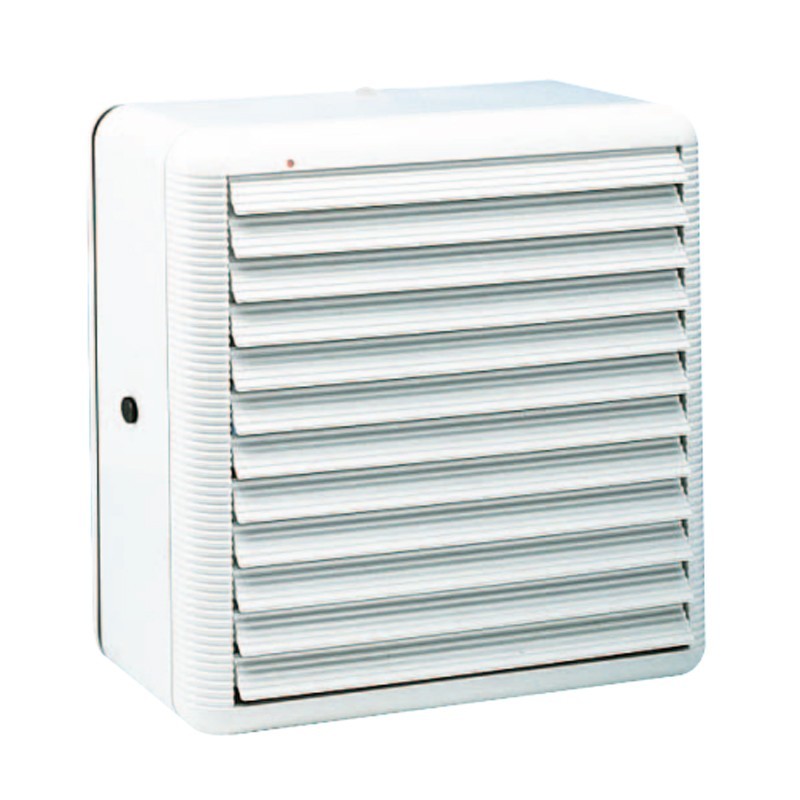

Elicent Manual Axial fan VITRO 6/150 2VI0672
ELI 2VI0672
8016510008629
Air and odour extractor fan Elicent model Vitro 6/150 manual for mounting on glass, helicoidal window, direct expulsion, for air extraction in medium and large environments such as: public places, shops, offices, surgeries, schools, gaming rooms, bars, restaurants, canteens, kitchens, gyms, changing rooms, etc..
Elicent Manual Axial fan VITRO 6/150 2VI0672
€94.16
€94.16
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Features:
- Helical exhaust fans for direct external ejection
- Glass installation
- Accessories for double glazing, double window and wall installation
- IPX4 protection (external part)
- Made of double insulation, they do not require earthing
- Motor with Long Life bushings 230V-50 Hz with thermal protection suitable for continuous duty
- Easily removable and washable front
- Equipped with external rain grill
- Structure made of high quality antistatic technopolymers
- The vacuum cleaners can be controlled by our regulators which are supplied separately.
- Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU standards.
Technical characteristics:
- Flow rate Max 200 cubic meters/h
- Pressure Max 36 Pa
- Power 24 W
- Sound Pressure (at 3 meters) 40 db (A)
- Diameter 184÷188
Data sheet
- Diameter:
- 185-190
- Type:
- Axial fans
- Functions:
- Flaps automatic
