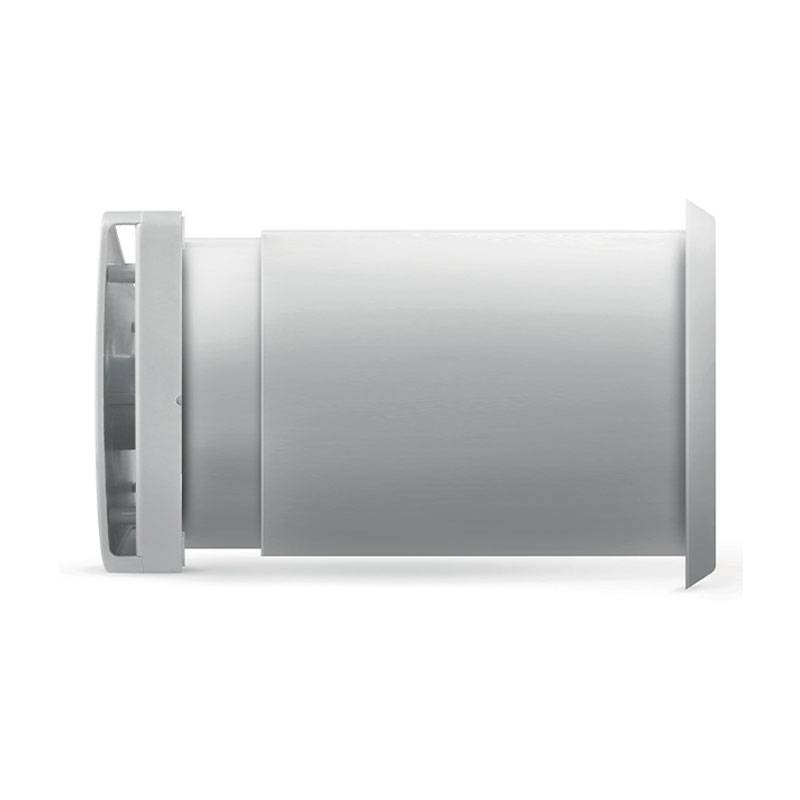

Fantini Ecocomfort Plus Fan and Heat Recovery Unit AP19993
FAN AP19993
8025863058632
The Fantini Ecocomfort Plus AP19993 is a high-efficiency point mechanical ventilation system designed to provide air exchange in rooms up to 35 square meters. The unit draws in stale air and injects filtered fresh air, drastically reducing the formation of moisture and mold, even in closed rooms.
-
Regenerative ceramic heat recovery (up to 90 percent)
-
Built-in sensors: temperature, humidity, VOC and twilight sensor
-
Control via infrared remote control
-
Wall installation with Ø160 mm telescopic tube
-
For rooms up to 35 sq. m.
-
Silent and low energy consumption
-
Exchanger type: regenerative ceramic
-
Sensors: temperature, VOC, humidity, twilight sensor
Package includes:
-
Ventilation unit with heat recovery unit
-
Telescopic tube and external grille
-
Infrared remote control
€259.13
Items Available: 16
: 3

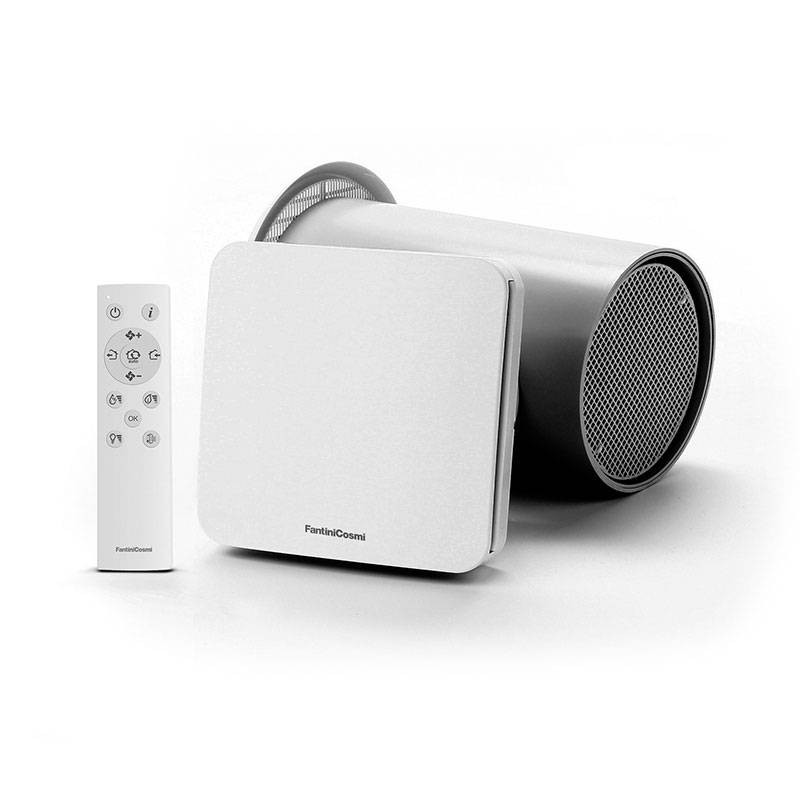

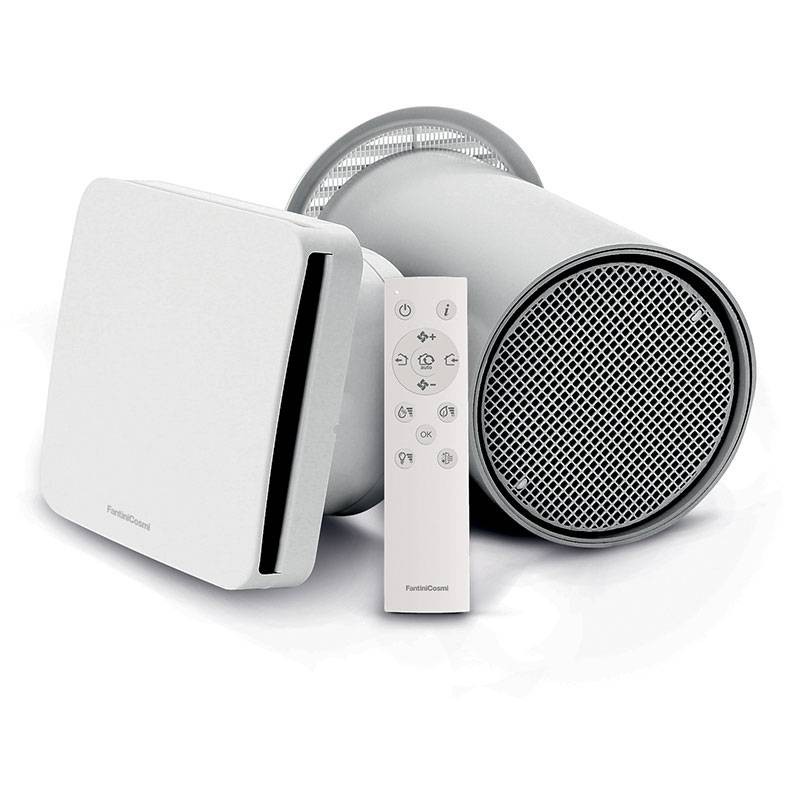

Fantini Ecocomfort Plus AP19993 exhaust fan with heat recovery and remote control
ECOCOMFORT PLUS is a ventilation system that allows clean air exchange in indoor environments at all times, without the need to open windows, while also preventing the formation of moisture and mold.
A high-efficiency regenerative ceramic heat exchanger, located inside the unit, stores the heat given off by the airflow extracted from the room and returns it by heating the air during the inlet cycle, thus recovering the outgoing heat and avoiding energy waste.
ECOCOMFORT PLUS is equipped with an ISO COARSE efficiency class filter that retains any impurities in the air injected into the room and a low-consumption brushless DC motor controlled by a microprocessor that processes information from the sensors on the unit: of temperature, VOC (Volatile Organic Compounds), humidity and brightness. All these sensors enable the unit to adopt the most suitable ventilation modes automatically and ensure the best environmental comfort.
The remote control enables easy operation by the end user. Thanks to infrared (IR) technology, communication with the device is immediate, and the user can easily manage the sensors with which the unit is equipped. In addition, the LED at the bottom of the front cover indicates the current functions with different colors: the user and installer are only required to determine which comfort thresholds are desired in the home.
Installing several ECOCOMFORT PLUS units will require only one remote control to control them all.
Construction characteristics of the Fantini Ecocomfort Plus recuperator
Fan unit
-
Helical extractor/fan and Brushless DC motor;
-
Telescopic PVC shockproof tube;
-
Regenerative ceramic exchanger with efficiency up to 90%;
-
Cross-linked polyurethane filter, ISO Coarse filtration class according to EN799;
-
Flow rectifier to ensure higher performance, only for 160 mm diameter version (AP19993)
Electrical characteristics
-
Fan unit: Power supply 110V ÷ 230V~ 50/60Hz
-
Infrared remote control: Power supply: 2 AAA batteries (not included)
-
Signal LEDs at the bottom of the front shell;
-
Temperature, VOC air quality, humidity and twilight sensors;
-
IPX4 degree of protection.
Infrared remote control
-
Simple and functional 12-button keypad;
-
Infrared technology for communication is even faster with the device;
-
Functional acknowledgements via indicator LEDs at the bottom of the front shell;
-
Compatible with all devices in the ECOCOMFORT PLUS series;
-
Degree of protection: IP40;
-
Battery life: > 24 months
Technical Specifications - ECOCOMFORT PLUS 160 (Ref. AP19993)
General Data
| Parameter | Value |
|---|---|
| Code | AP19993 |
| Model | ECOCOMFORT PLUS 160 |
| Pipe diameter | 160 mm |
| Maximum room size | 35 m² |
| Power supply voltage | 110V to 230V~ / 50-60 Hz |
Performance by Operating Mode
| Mode | Air flow rate (m³/h) | Power consumption | Sound level at 1.5 m |
|---|---|---|---|
| Sleep | 15 | 1,6 W | n.a. |
| Low | 28 | 2,8 W | 26 dB(A) |
| Average | 33 | 5,2 W | 30 dB(A) |
| High | 50 | 8,9 W | 36 dB(A) |
There are no reviews
Data sheet
- Diameter: 160
- Type: Axial fans
Heat recovery units
