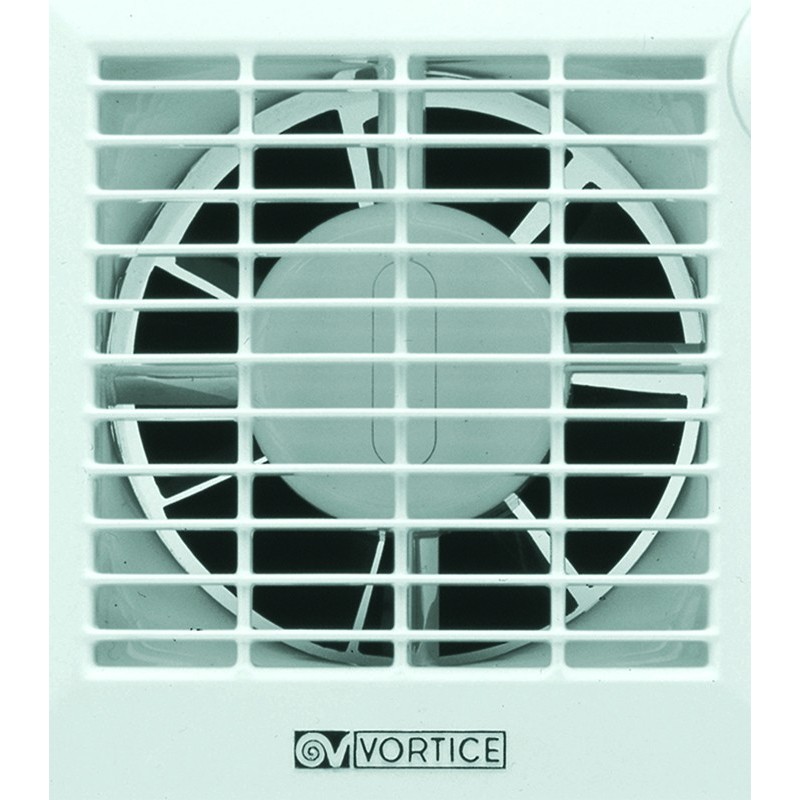

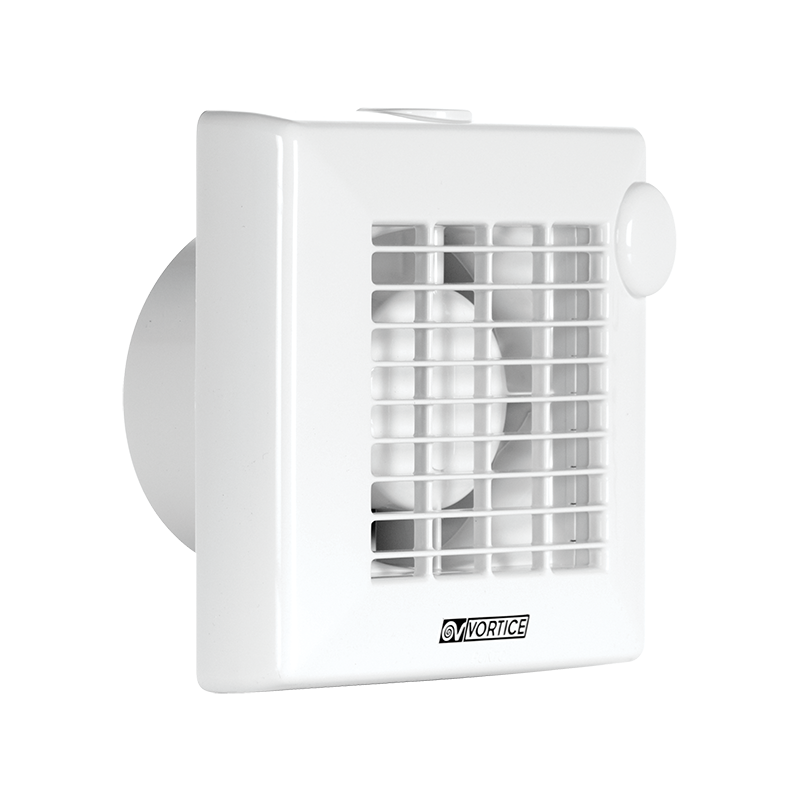

Vortice Axial fan Wall mounting and Glass Diameter 100 11201
VOR 0000011201
8010300112015
Air and odor Axial fan Vortice model M 100/4" wall or glass.
€46.23
Items Available: 342
: 63
Frequently bought together
Features:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Rated diameter 100 mm

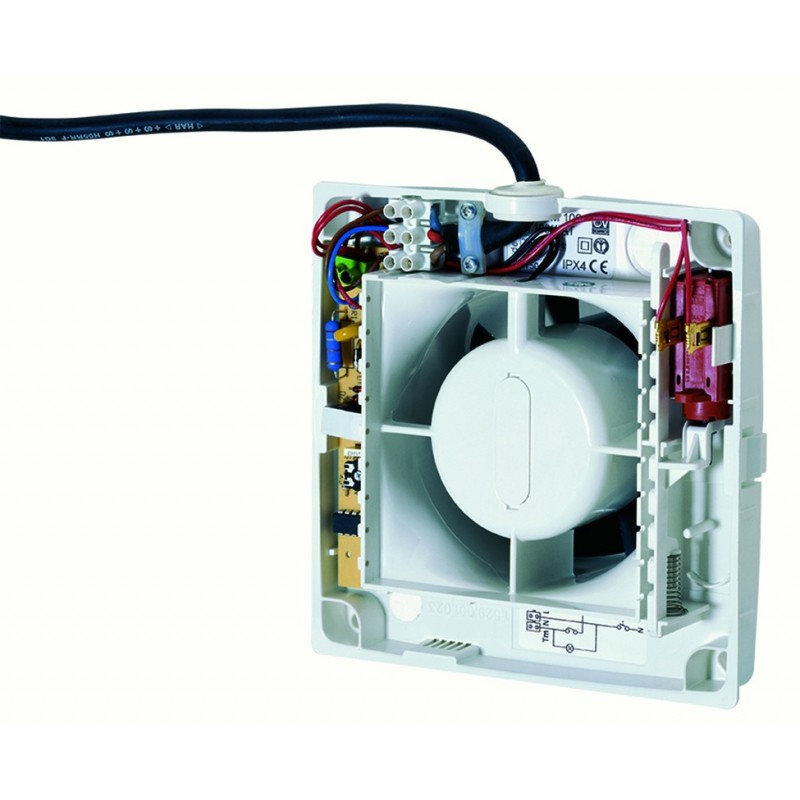

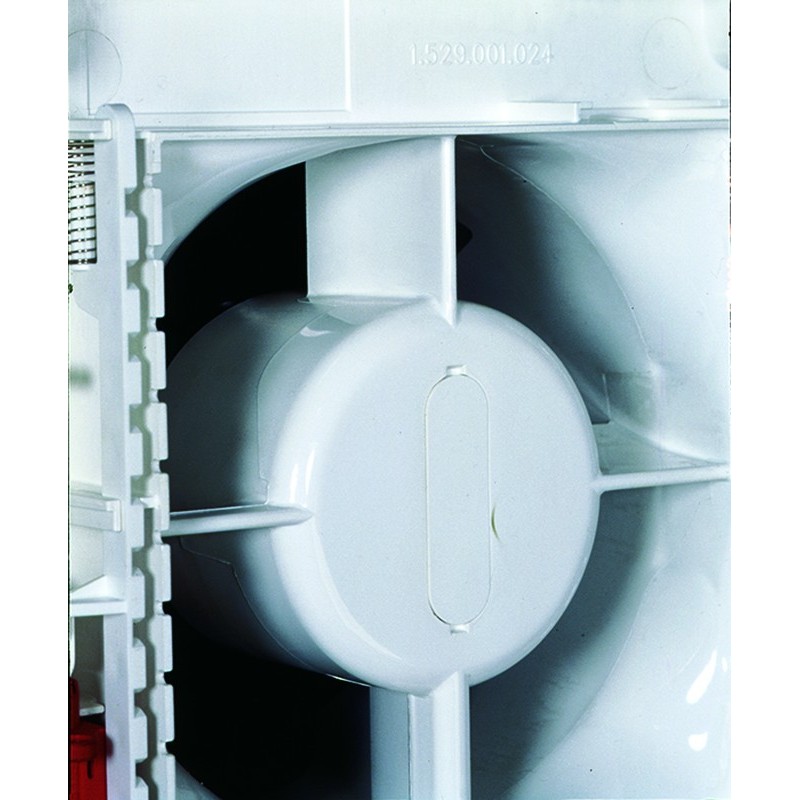

- Thermally protected motor with shaft on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 90 m3/h
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical specifications:
- Current consumption max (A) 0.1
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Exhaust (mm) 99
- Weight (Kg) 0.6
- Power consumption max (W) 18
- Max. power consumption at max speed (W) 18
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 230/240
- Max pressure (mmH2O) 3
- Max pressure (Pa) 29
- Sound Pressure Lp [dB (A)] 3m 37.5
There are no reviews
Data sheet
- Diameter: 100
- Type: Axial fans
