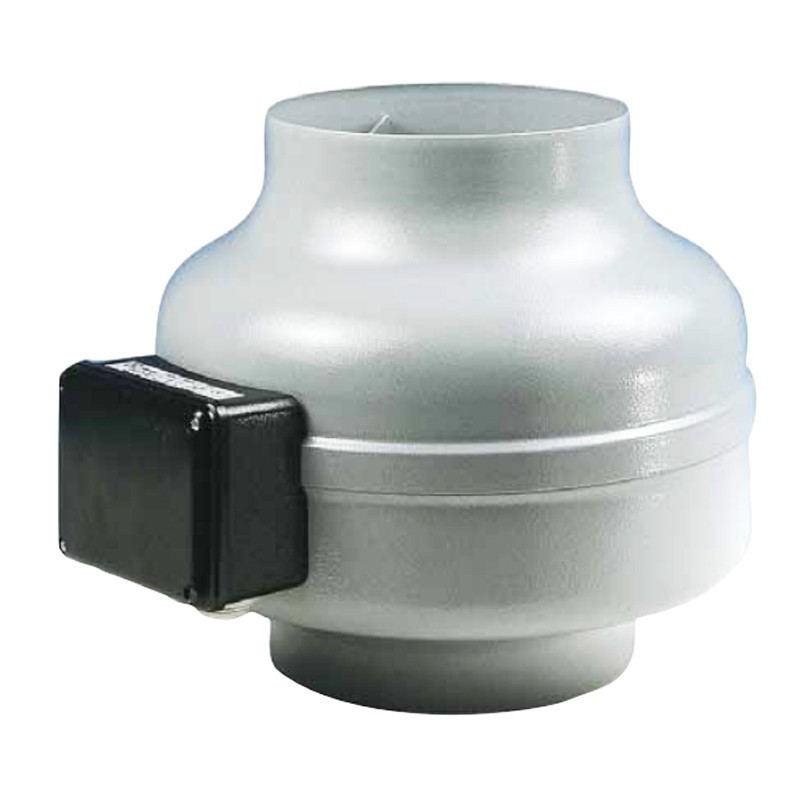

Elicent Centrifugal duct vacuum cleaner AXC 100B 2AX1123
ELI 2AX1123
8016510038978
Air and odour extractor fan Elicent model AxC 100B in-line centrifugal duct model, complete with brackets, Application in environments such as: public places, offices, gaming rooms, shops, homes, gyms, laboratories, bars, restaurants, canteens, hoods (with filter), etc..
€152.99
Items Available: 10
: 2
Due to its construction and performance characteristics, the AXC series can be used horizontally or vertically at any point in the pipeline. The air sucked in must not be dusty or corrosive.
Features:
- Centrifugal duct fans
- Installation in line with the pipeline
- Brackets and fixing brackets supplied as standard
- Suitable for clean air with max temperature 60°C
- IMQ Certificates
- Protected against splash water (IPX4)
- Reverse paddle fan
- Static and dynamic balancing according to ISO 1940 standards
- Epoxy powder coated steel structure
- Galvanized steel flow rectifiers
- Single-phase motor (230V-50Hz) with long life bearings with thermoprotector
- Ventilation unit suitable for continuous duty
- Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE
Technical specifications:
- Pipe diameter 100 mm
- Max. flow rate 260 cubic meters/h
- Pressure Max 383 Pa
- Voltage at 50 Hz 230V
- Absorbed current 0.23 A
- Power 50 W
- Speed 2530 RPM/1'
- Sound Pressure (at 3 meters) 36 db (A) ( Lp(A) at 3 m in free field 230V/50Hz)
- IPX4 degree of protection
- Max temperature 60 C°.
Data sheet
- Diameter: 100
- Type: Centrifugal fans
