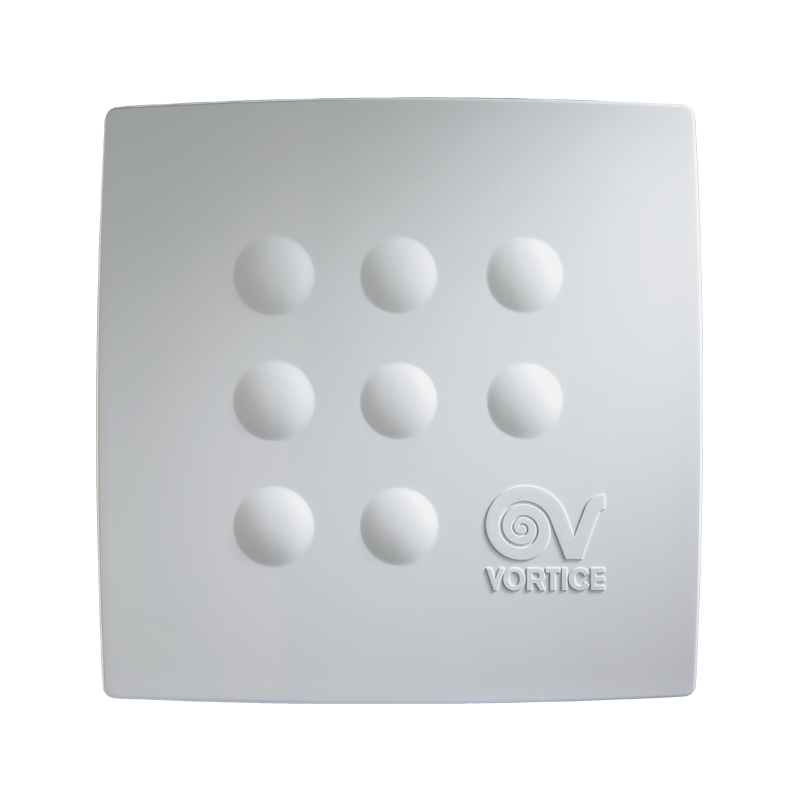

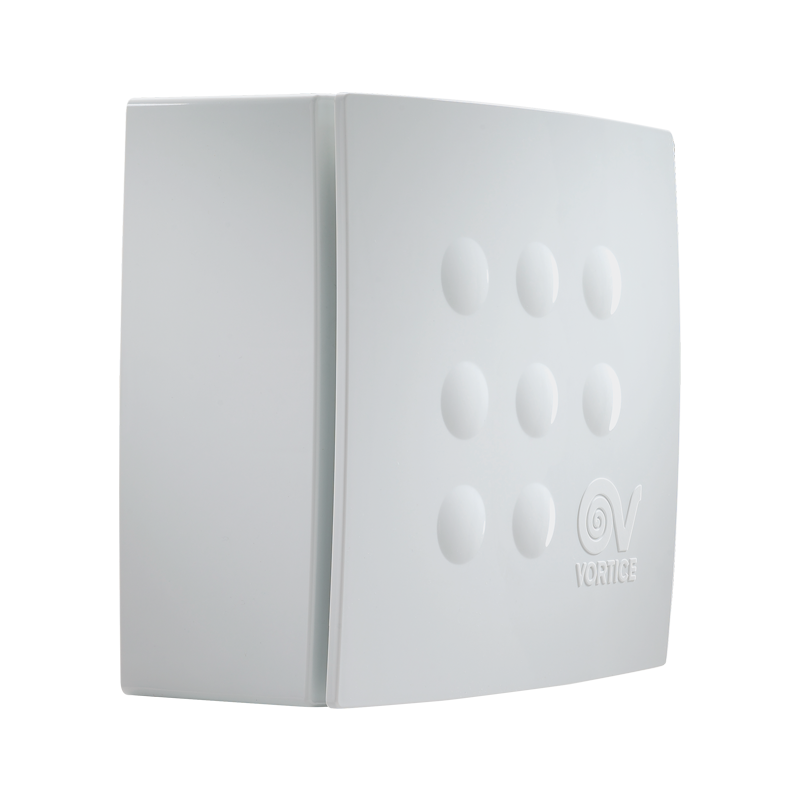

Vortice Centrifugal Vacuum cleaner MEDIO 100 11944
VOR 0000011944
8010300119441
Air and odor aspirator Vortice model MEDIO 100 centrifugal, duct, wall mounted, Rated diameter 100 mm.
€195.11
Items Available: 13
Features:
- White ABS plastic resin construction
- 2-speed induction type motor with starting capacitor, coupled to a forward centrifugal blade impeller
- Equipped with thermo-fuse protection and self-lubricating bushings
- Rated diameter 100 mm
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical specifications:
- Max. current consumption at max. speed (A) 0.18
- Max. current consumption at min. speed (A) 0,14
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Exhaust (mm) 97
- Weight (Kg) 2.5
- Max power consumption at max speed (W) 29
- Max. power consumption at min speed (W) 25
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Free field sound emission [dB(A)] 3m 36.7
- Max. flow rate at max. speed (l/s) 33
- Max. flow rate at max. speed (m³/h) 120
- Max. flow rate at min. speed (l/s) 19
- Max. flow rate at min. speed (m³/h) 70
- Max pressure at max speed (mmH2O) 34
- Max pressure at max speed (Pa) 329
- Max. pressure at min. speed (mmH2O) 22
- Max. pressure at min. speed (Pa) 216
- Sound pressure Lp [dB (A)] 3m - max vel 43.4
- Sound pressure Lp [dB (A)] 3m - min vel 36,7
- RPM max 1890
- RPM min 1150
Ottimo prodotto. Silenzioso ma con un'ottima potenza di aspirazione.
Bel design pulito
Prodotto perfetto arrivato nei tempi stabilito
Data sheet
- Diameter: 100
- Type: Centrifugal fans
