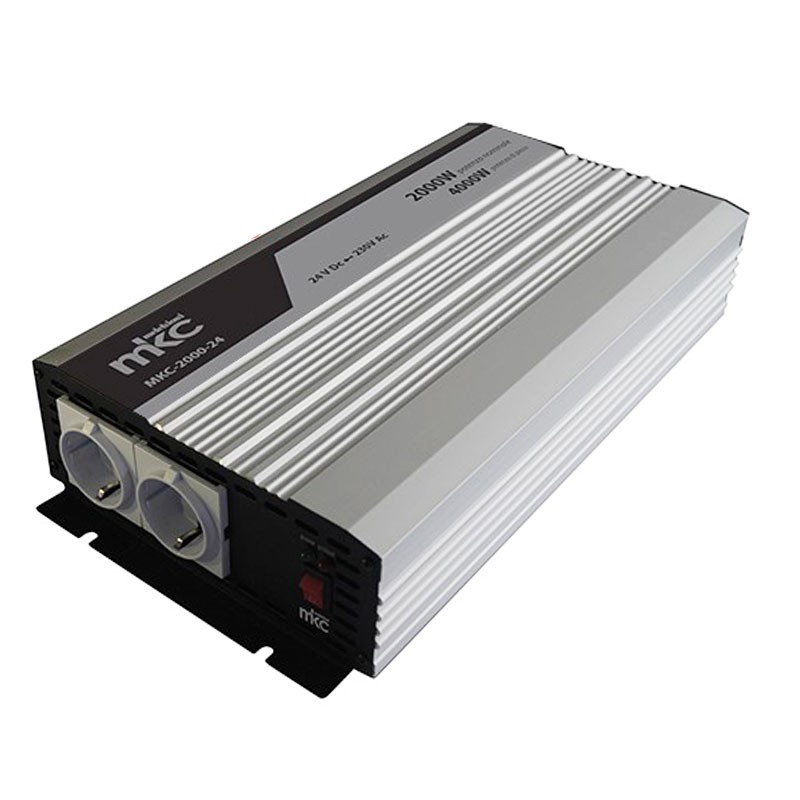

Inverter Melchioni MKC-2024 2000W 24VDC/230VAC 491929513
MEM 491929513
8006012340297
Melchioni Inverter softstart modified sine wave, with the following characteristics:
- Output waveform: Modified sine wave
- Rated output power: 2000 watts
- Peak output power: 4000 Watt
- Output voltage: 230V AC
- Input voltage: 24 VDC
- Frequency: 50 Hz
- Reverse polarity protection: internal fuses
- Output connection: 2 Schuko sockets
- Efficiency > 90%.
- Operating temperature: 0° C / 30° C
- Cooling: internal fan
- Dimensions: 414x80x200 mm
- Weight: 4.25 kg
- Connection: input connection screw terminals for eyelets
- Installation: wall-mounted or horizontal
€288.02
Items Available: 2
: 1
INPUT PROTECTION: Overvoltage, Undervoltage, Reverse polarity.
OUTPUT PROTECTION: Overload, Short circuit, Overtemperature.
ALARMS: Minimum battery voltage Overload, Overtemperature.
USE: Island systems also called stand-alone or off-grid systems for mountain cabins/homes, parks and gardens, cars, trucks, boats, roulettes, RVs, etc.
WARNINGS:
- Connect directly to batteries using the supplied cables. Reversing battery polarity will damage the device. Damage not covered by warranty. Do not connect the inverter output to the mains: such connection will damage the inverter irreparably. Damage not covered by warranty.
- Do not place the inverter near heat sources, humid places.
- Connection to power sources with output voltage other than continuous 24V is not compliant or allowed!
There are no reviews
Data sheet
- Type: Inverter
