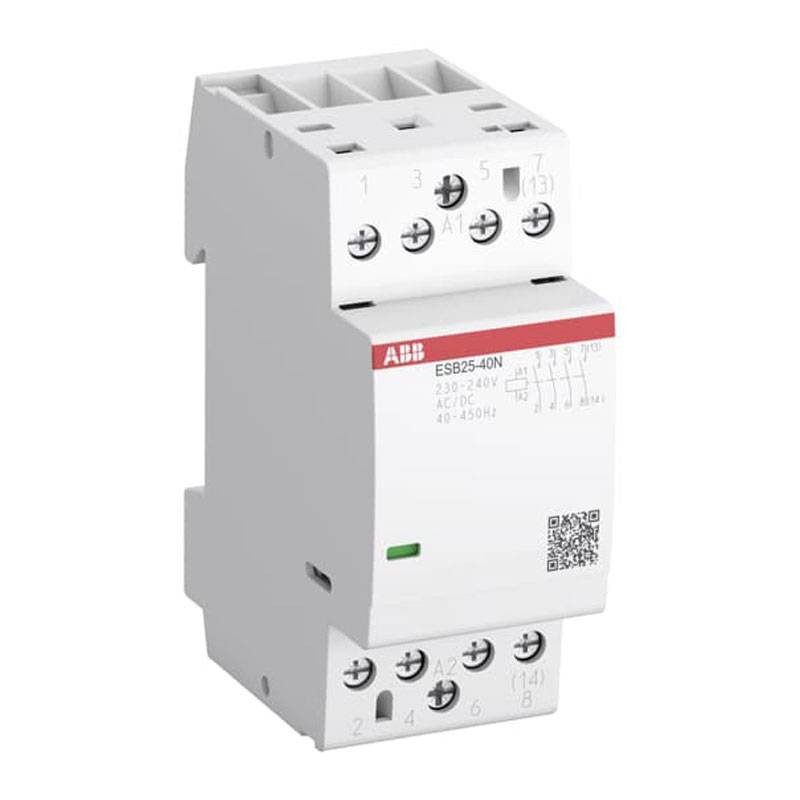

Abb Modular Contactor ESB2440 25A 4NA 230 Vac 2 Modules ESB2540N06


ABB ESB2540N06 4013614524257

Abb ESB2440 modular contactor with the following characteristics:

  • Rated control circuit voltage: 230... 240V
  • Rated operating current: 25A
  • Impulse withstand voltage: 6 kV
  • Rated insulation voltage: 500V
  • Number of poles: 4
  • Number of modules: 2
  • Number of NO main contacts: 4
Request info about this product

Abb Modular Contactor ESB2440 25A 4NA 230 Vac 2 Modules ESB2540N06

€42.55
€42.55

Abb Modular Contactor ESB2440 25A 4NA 230 Vac 2 Modules ESB2540N06

€42.55
Tax included
klarna Pay in installments with Klarna
qty

Abb Modular Contactor ESB2440 25A 4NA 230 Vac 2 Modules ESB2540N06

€42.55

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

The ESB25..N installation contactors are used to control single-phase and three-phase loads up to 25 A and can be operated on alternating or direct current. These contactors are made for use in domestic applications and industrial environments.

Buzz-free operation, low power consumption, and built-in overvoltage protection.

Various combinations of contacts and accessories are available.

A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control.

IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a kind of switch to be used for all eventualities.

Features:

  • Rated operating voltage: Main Circuit 220 V DC - Main Circuit 400 V AC
  • Tightening torque: Control Circuit 0.9 Nm - Main Circuit 1 -m
  • Wire stripping length: Control Circuit 7 mm - Main Circuit 10 mm
  • Degree of protection: IP20
  • Pollution degree: 3
  • Ambient temperature: In operation -25/+55 °C - In storage -40/+80 °C
  • Product width: 36 mm
  • Product height: 85 mm
  • Product depth: 65 mm
  • Product net weight: 235 grams

Data sheet

Type:
Contactors
Voltage:
230/240VAC
Modules:
2
Poles:
4P
Degree of protection:
IP20
Amps:
25A
