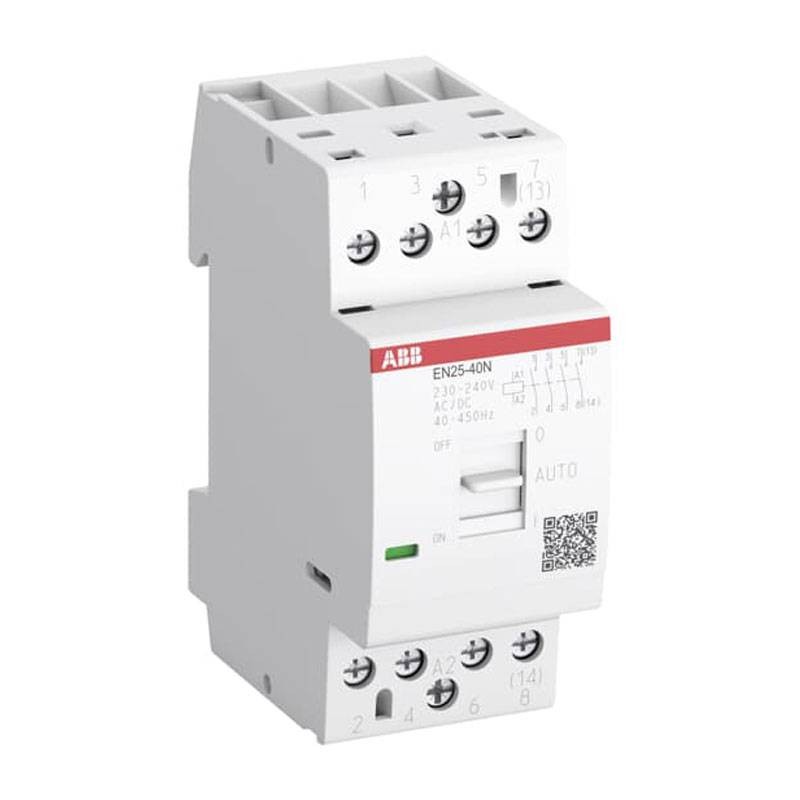

Abb Modular Contactor 25A 4NA 230V 2 Modules EN2540N06


ABB EN2540N06 4013614524554

Abb EN2540 modular contactor manual control with the following characteristics:

  • Rated control circuit voltage: 230 - 240V
  • Rated operating current: 25A
  • Impulse withstand voltage: 4 kV
  • Rated insulation voltage: 500V
  • Number of poles: 4
  • Number of NO main contacts: 4
  • Number of modules: 2
  • Degree of protection: IP20
Request info about this product

Abb Modular Contactor 25A 4NA 230V 2 Modules EN2540N06

€45.97
€45.97

Abb Modular Contactor 25A 4NA 230V 2 Modules EN2540N06

€45.97
Tax included
klarna Pay in installments with Klarna
qty

Abb Modular Contactor 25A 4NA 230V 2 Modules EN2540N06

€45.97

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

EN25..N installation contactors are used to control single-phase and three-phase loads up to 25 A and can be operated in AC or DC and/or manually. These contactors are made for use in domestic applications and industrial environments.



The following advantages are provided:

  • Buzz-free operation, low power consumption, built-in overvoltage protection, and manual operation
  • A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control


IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a kind of switch to be used for all eventualities.


Features:

  • Rated operating voltage: 220 V DC Main Circuit - 400 V AC Main Circuit.
  • Rated operating current AC-3 (Ie):(230 V) Single Phase, NO 9 A - (400 V) Three Phase, NO 9 A
  • Rated operating current AC-1 (Pe):(230 V) Single-phase 5.8 kW - (400 V) Three-phase, NO 17.3 kW
  • Rated operating current AC-3 (Pe):(230 V) Single-phase 1.3 kW - (400 V) Three-phase, NO 4 kW
  • Rated operating current AC-7a (Pe):(230 V) Single-phase 5.8 kW - (400 V) Three-phase, NO 17.3 kW
  • Rated operating current AC-7b (Ie):(230 V) Single-phase, NO 9 A - (400 V) Three-phase, NO 9 A
  • Rated operating current AC-7b (Pe):(230 V) Single-phase 1.3 kW - (400 V) Three-phase, NO 4 kW
  • Number of NC auxiliary contacts:0
  • Number of NO auxiliary contacts:0
  • Number of NC main contacts:0
  • Number of NO main contacts:4
  • Width in number of modular intervals:2
  • Pollution degree:3
  • Product width:36 mm
  • Product height:85 mm
  • Product depth:65 mm
  • Product net weight:240 grams

Data sheet

Type:
Contactors
Voltage:
230/240VAC
Modules:
2
Poles:
4P
Degree of protection:
IP20
Amps:
25A
