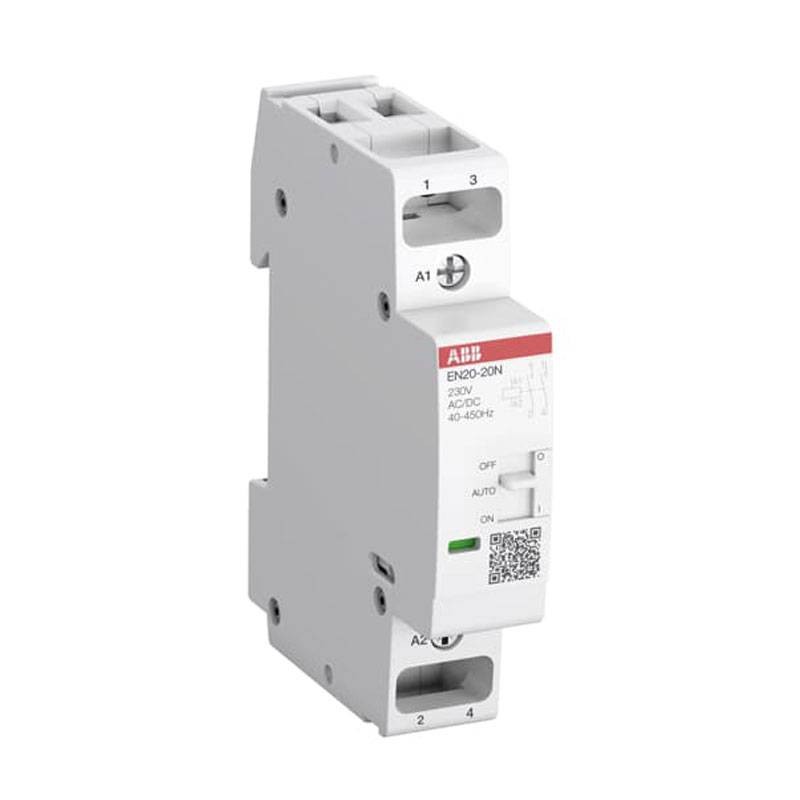

Abb Modular Contactor 20A 2NA 230V 1 Module EN2020N01

Abb
Abb
ABB EN2020N01 3471523004689

Abb EN2020 modular contactor manual control with the following characteristics:


  • Rated control circuit voltage: 24V
  • Rated operating current AC-1: 20 amps
  • Impulse withstand voltage: 4 kV
  • Rated insulation voltage: 400V
  • Number of poles: 2
  • Number of NO main contacts: 2
  • Number of modules: 1
  • Degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Modular Contactor 20A 2NA 230V 1 Module EN2020N01
€43.84
€43.84

€43.84
Tax included
Calculate shipping cost
Items Available: 27
Further availability of the manufacturer
€43.84

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

EN20..N installation contactors are used to control individual loads up to 20 A and can be operated in alternating or direct current and/or manually. These contactors are made for use in domestic applications and industrial environments.


The following advantages are provided:

  • Buzz-free operation, low power consumption, built-in overvoltage protection, and manual operation


A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control.

IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a kind of switch to be used for all eventualities.


Features:

  • Rated operating voltage: 220 V DC Main Circuit - 250 V AC Main Circuit.
  • Rated operating current AC-3 (Ie):(230 V) Single phase, NO 9 A
  • Rated operating current AC-1 (Pe):(230 V) Single-phase 4.6 kW
  • Rated operating current AC-3 (Pe):(230 V) Single-phase 1.3 kW
  • Rated operating current AC-7a (Pe):(230 V) Single-phase 4.6 kW
  • Rated operating current AC-7b (Ie):(230 V) Single-phase, NO 9 A
  • Rated operating current AC-7b (Pe):(230 V) Single-phase 1.3 kW
  • Number of NC auxiliary contacts:0
  • Number of NO auxiliary contacts:0
  • Number of NC main contacts:0
  • Number of NO main contacts:2
  • Width in number of modular intervals:1
  • Pollution degree:3
  • Product width:18 mm
  • Product height:85 mm
  • Product depth:65 mm
  • Product net weight:140 grams

There are no reviews

Data sheet

Type:
Contactors
Voltage:
24VAC
Modules:
1
Poles:
2P
Degree of protection:
IP20
Amps:
20A
