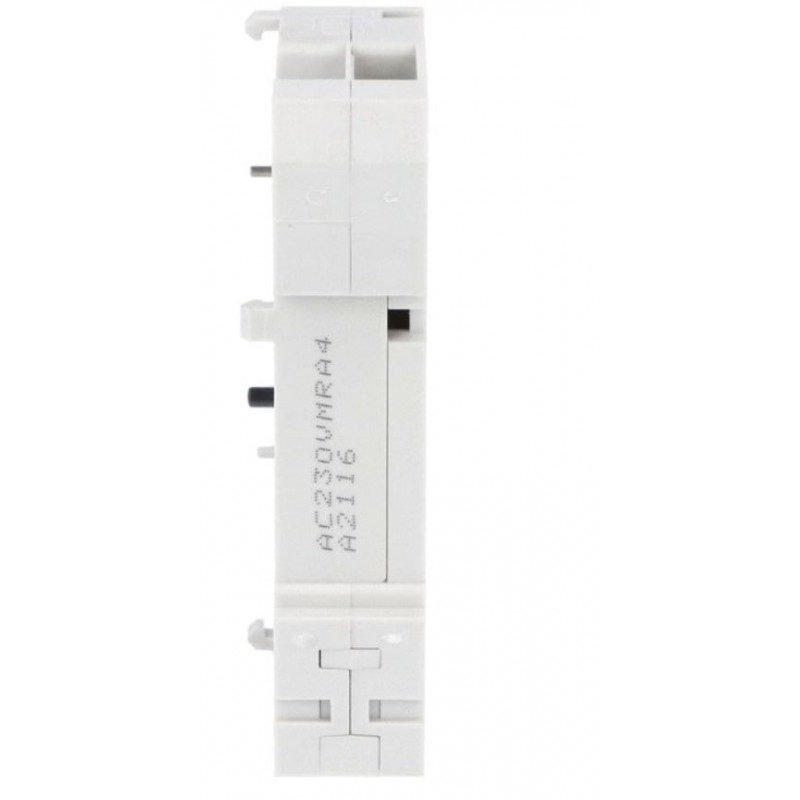

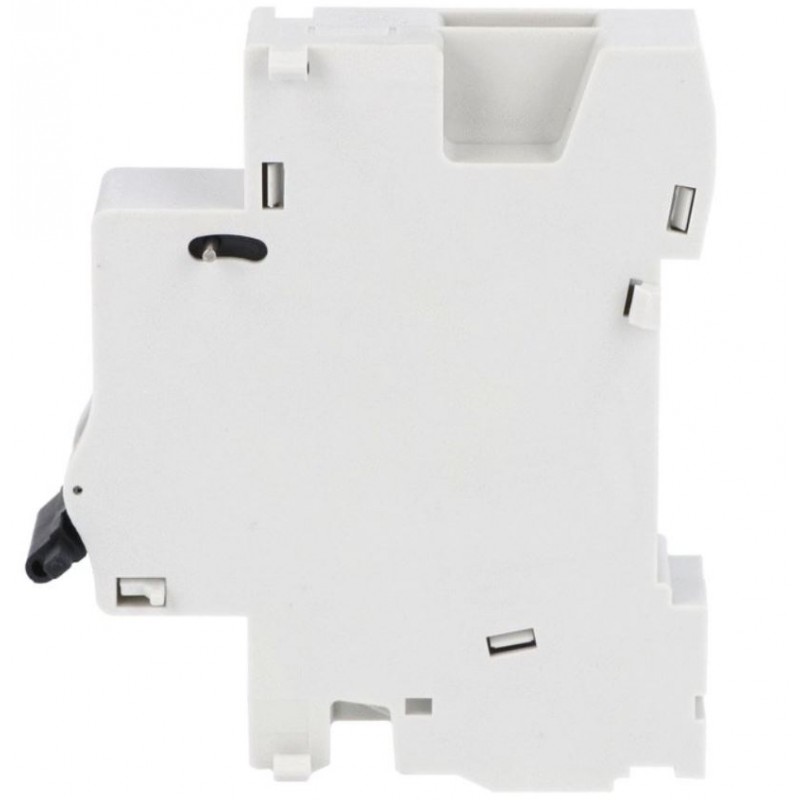

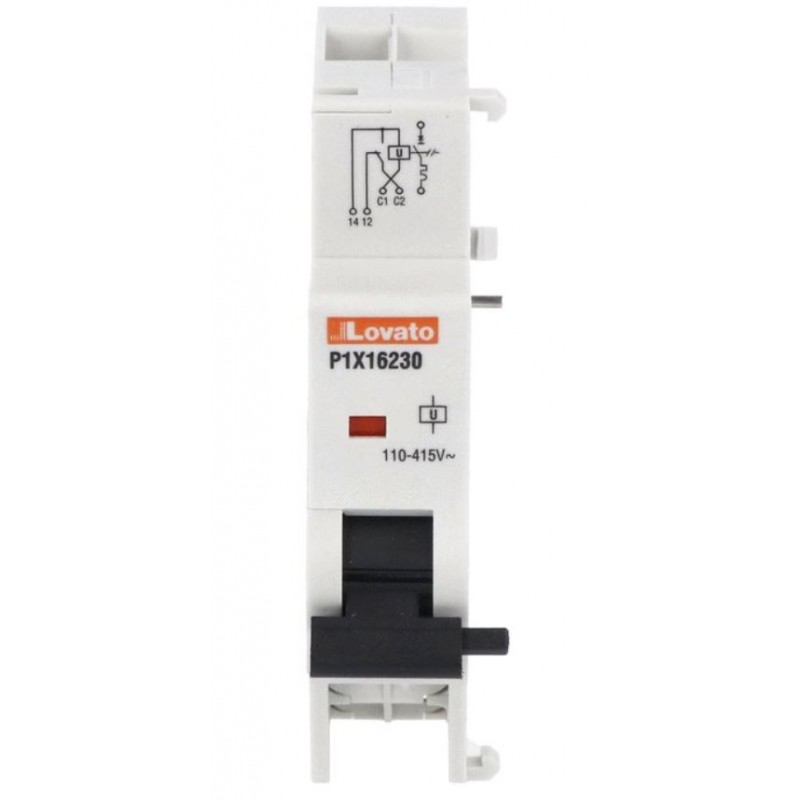

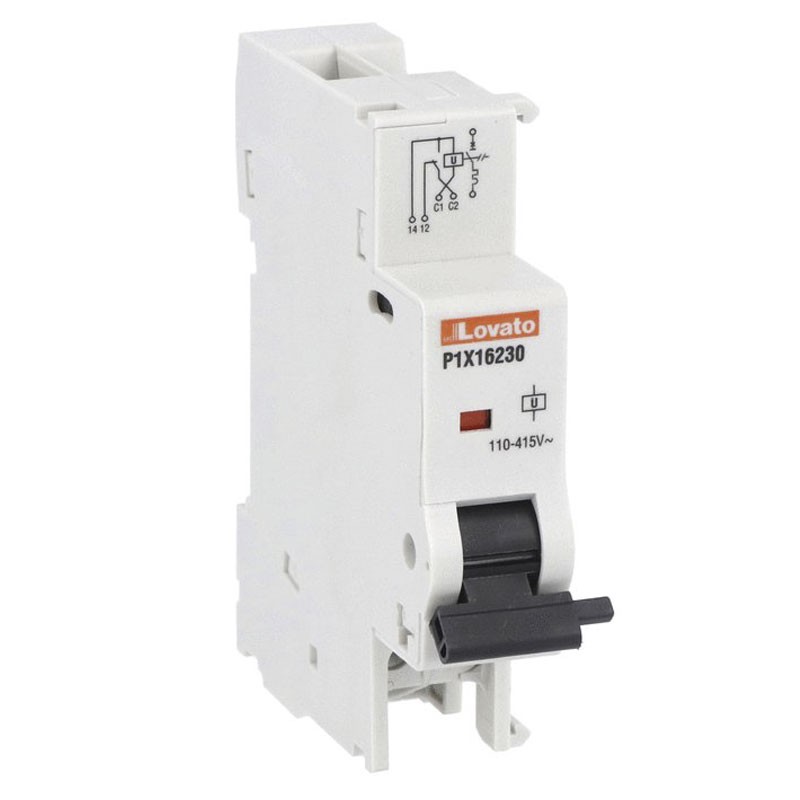

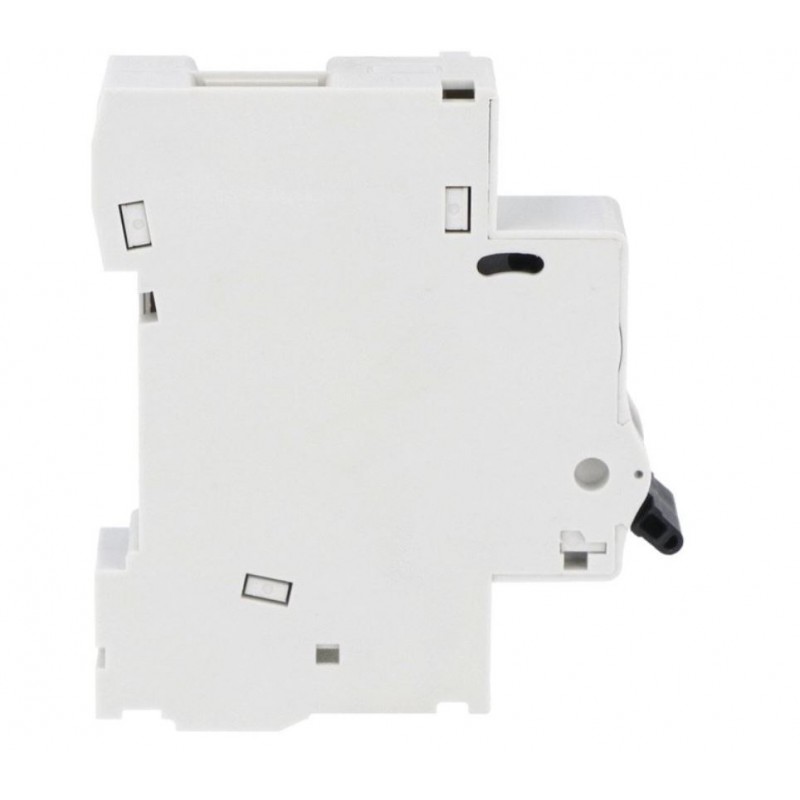

Lovato opening coil 110/415V 50/60Hz 1 module P1X16230
LOV P1X16230
8013975204931
The Lovato P1X16230 opening coil 110–415V 50/60Hz (1 module) enables remote release of P1MB, P1RD, and P1RE series circuit breakers and residual current devices. Ideal for emergency commands and automation systems:
-
Operating voltage 110–415 Vac
-
Lateral mounting – 1 DIN module
-
Remote opening (current pulse coil)
-
Insulation voltage (Ui): 500 V
-
Impulse voltage (Uimp): 2.5 kV
-
DIN modules: 1
-
Front protection degree: IP20
-
Max conductor section: 2.5 mm²
-
Operating temperature: -40…+70 °C
-
Max altitude: 2000 m
-
Rated frequency: 50/60 Hz
€41.37
Items Available: 40
: 15
Frequently bought together
Opening coil Lovato P1X16230: safe remote release
The Lovato P1X16230 opening coil is an electromechanical accessory designed to control the remote opening of compatible circuit breakers and residual current devices. Also known as a current pulse coil, it allows the device to be released via an electrical impulse from an external control circuit.
It is particularly suitable for applications where it is necessary to quickly interrupt the power supply, such as in emergency systems, automated industrial plants, or centralized control panels.
Operation and areas of use
When powered, the coil generates an impulse that causes the immediate opening of the associated switch. This allows:
-
Emergency stop (E-Stop)
-
Integration with fire protection systems
-
Commands from PLC or supervision systems
-
Centralized management of electrical panels
Thanks to the voltage range of 110–415 Vac 50/60 Hz, the device offers wide compatibility with different control systems.
Installation and protection
The coil occupies 1 DIN module and is mounted laterally on the switch, ensuring perfect mechanical and electrical integration.
The front protection degree IP20 makes it suitable for installation inside protected electrical panels.
| General data | |
|---|---|
| Rated insulation voltage (IEC/EN) | 500 V |
| Rated impulse withstand voltage (Uimp) | 2500 kV |
| Rated operational voltage AC (IEC) | 110…415 VAC |
| Rated frequency | 50/60 Hz |
| Operating temperature | min -40 °C / max +70 °C |
| Maximum altitude | 2000 m |
| Terminal tightening torque | max 1 Nm - max Ibin 0.74 |
| IEC conductor section | max 2.5 mm² |
| Front protection degree IP | IP20 |
There are no reviews
Data sheet
- Type: Coils
