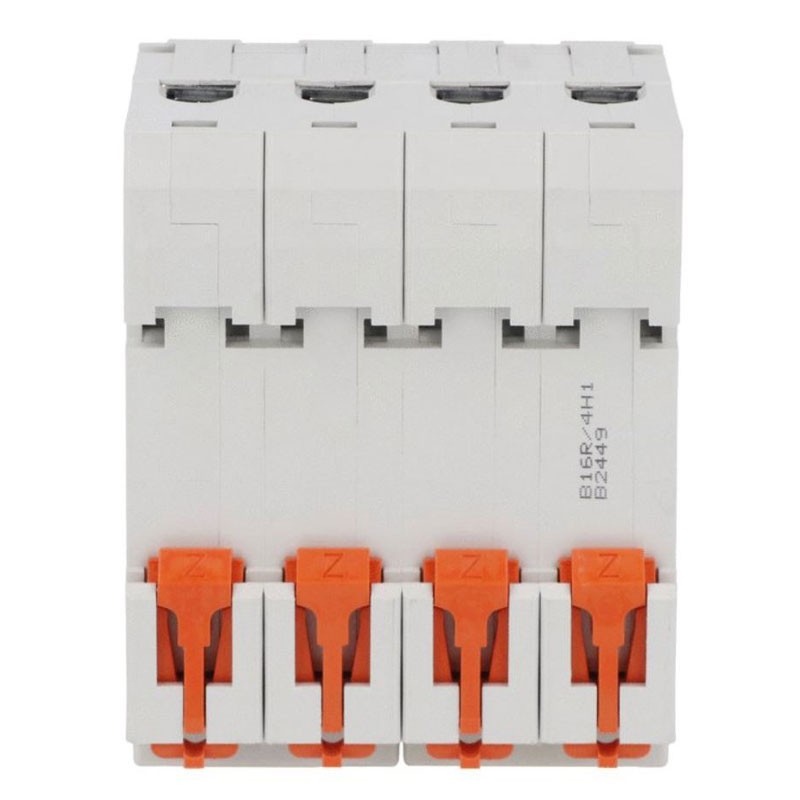

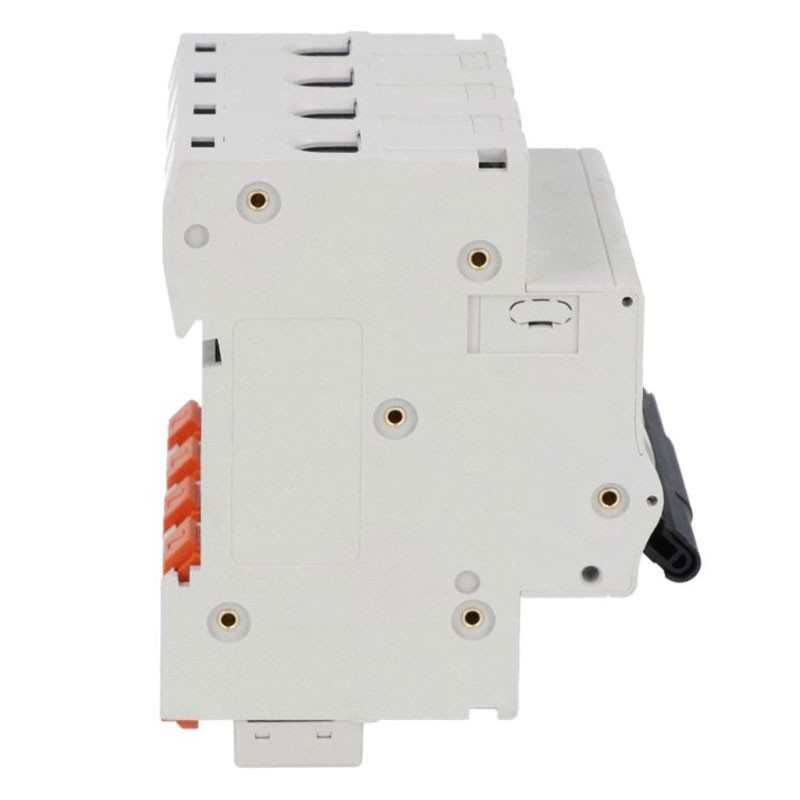

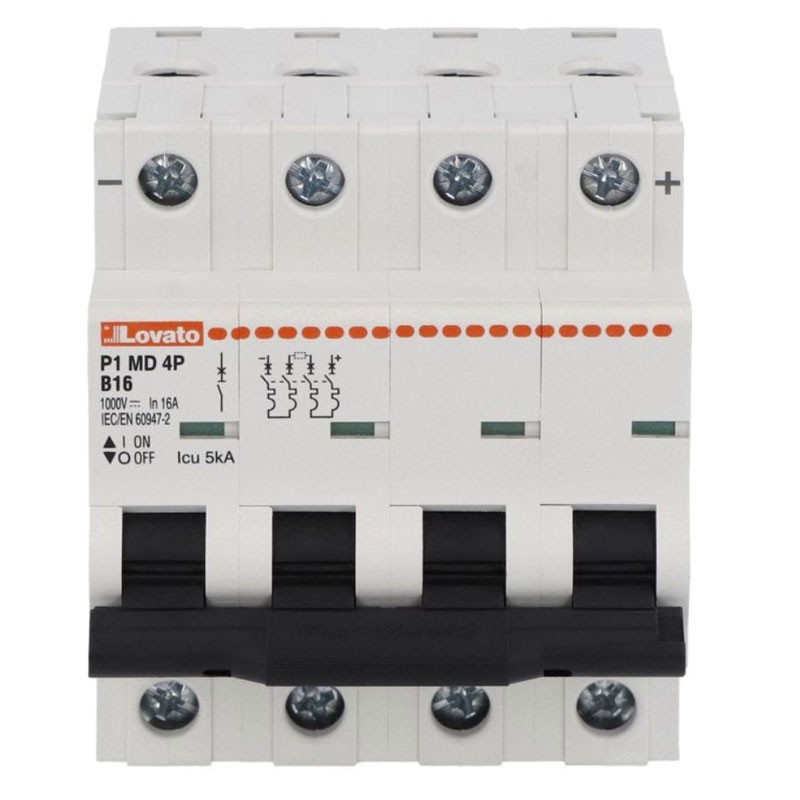

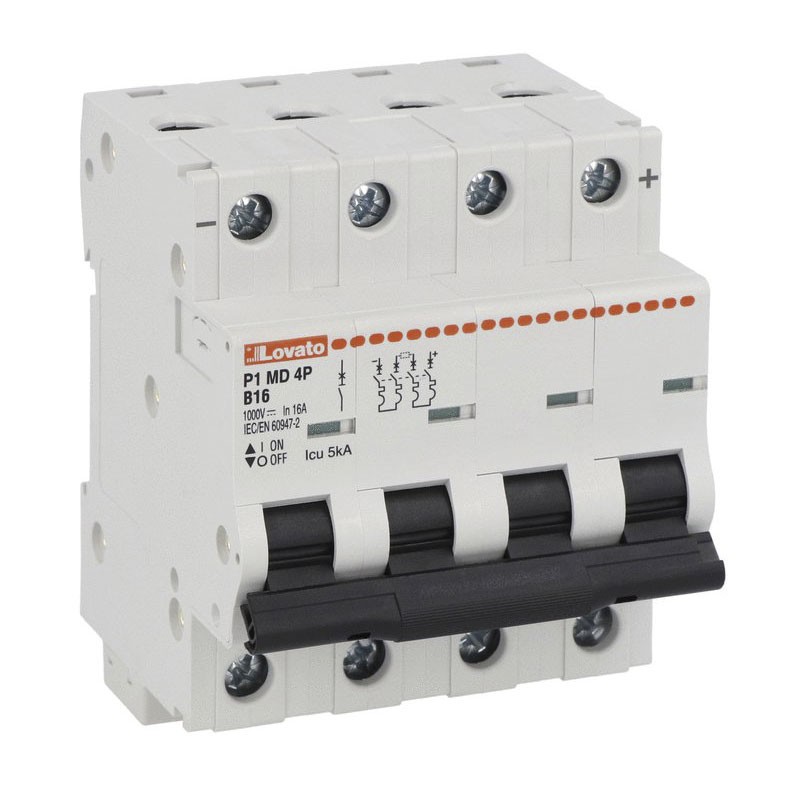

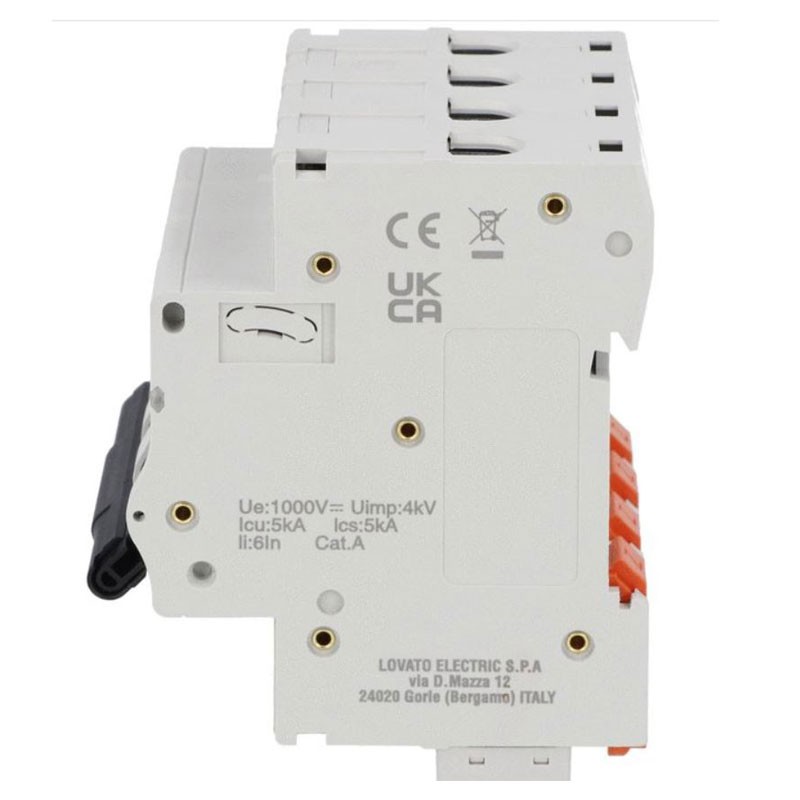

Lovato Circuit breaker P1MD 1000V DC 16A 5kA curve B 4 modules P1MD4PB16
LOV P1MD4PB16
8013975327296
The circuit breaker Lovato P1 MD 1000V DC 16A curve B, is designed for direct current systems up to 1000V DC. With a breaking capacity of 5kA and 4 poles, it is ideal for photovoltaic applications:
-
Nominal voltage 1000V DC
-
4 poles
-
4 DIN modules
-
Nominal current 16 Amperes
-
Curve B – fast protection for resistive loads
-
Breaking capacity 5 kA
-
Front protection degree: IP20
-
Installation on 35 mm DIN rail
-
Dissipated power per pole: 1.69 Watts
-
Operating temperature: -40…+70 °C
-
Conductor section: 1…35 mm²
€95.00
Items Available: 25
: 2
Frequently bought together
Circuit breaker Lovato P1 MD 1000V DC: protection for direct current systems
The circuit breaker Lovato P1 MD 4P 16A 1000V DC curve B is designed for protection against overloads and short circuits in direct current systems, such as photovoltaic installations, storage systems, and industrial DC applications.
Thanks to the nominal operating voltage up to 1000 VDC, it ensures high safety standards in high voltage direct current installations. Compliance with IEC/EN/BS standards ensures reliability and construction quality.
Curve B: fast and selective intervention
The intervention curve B allows for a fast magnetic response, ideal for circuits with predominantly resistive loads or with low inrush currents. It is particularly suitable for photovoltaic string protection lines or DC distribution circuits.
With a short-circuit capacity of 5 kA (IEC), the device offers effective protection in systems with adequate protection coordination.
Electrical and mechanical performance
It can be used in environments with temperatures ranging from -40 °C to +70 °C, with relative humidity up to 95% and a maximum altitude of 2000 m.
Installation and wiring
The device can be installed on a 35 mm DIN rail in a vertical position. The terminals accept conductors from 1 to 35 mm² (IEC) with a tightening torque between 1.8 and 2 Nm.
The front protection degree IP20 makes it suitable for installation in protected electrical panels.
| General data | |
|---|---|
| Number of poles | 4 poles |
| Number of DIN modules | 4 |
| Compliance | IEC/EN/BS |
| Nominal insulation voltage (IEC/EN) | 1000 V |
| Nominal impulse withstand voltage (Uimp) | 4 kV |
| Nominal operating voltage DC | 1000 VDC |
| Nominal current (In) | 16 Amperes |
| Intervention curve | B |
| Short-circuit current (IEC Capacity) | 5 kA |
| Electrical endurance | 2500 cycles |
| Dissipated power per pole | max 1.69 W |
| Operating temperature | min -40 °C / max +70 °C |
| Storage temperature | min -40 °C / max +80 °C |
| Maximum altitude | 2000 m |
| Relative humidity | ≤95% |
| Mounting position | Normal vertical plane |
| Fixing | 35mm DIN rail |
| Terminal tightening torque | min 1.8 Nm / max 2 Nm - min Ibin 16 / max Ibin 17.7 |
| Tool attachments | Pz 2 |
| IEC conductor section | min 1 mm² / max 35 mm² (AWG/Kcmil min 14 - max kcmil 6) |
| Mechanical endurance | 20000 cycles |
| Product weight | 474 g |
| Front IP protection degree | IP20 |
| Pollution degree | 3 |
| Grid distance according to Annex H.1 of IEC/EN60898-1 | 60 mm |
There are no reviews
Data sheet
- Voltage: 1000 Vdc
- Modules: 4
- Poles: 4P
- Curve: B
- Breaking capacity: 5KA
- Degree of protection: IP20
- Amps: 16A
- Circuit Protections: Circuit breakers
