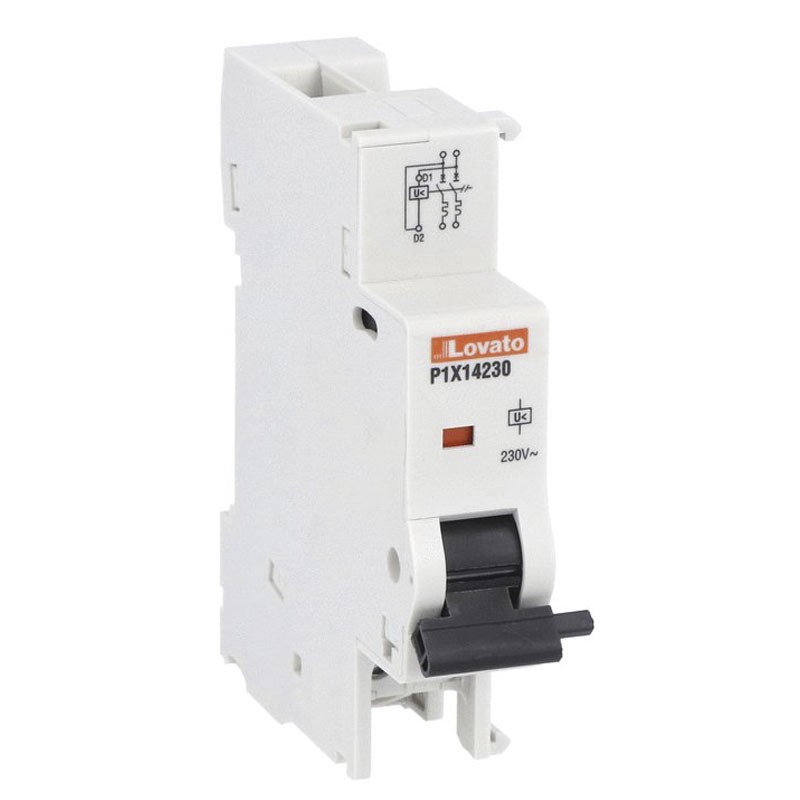

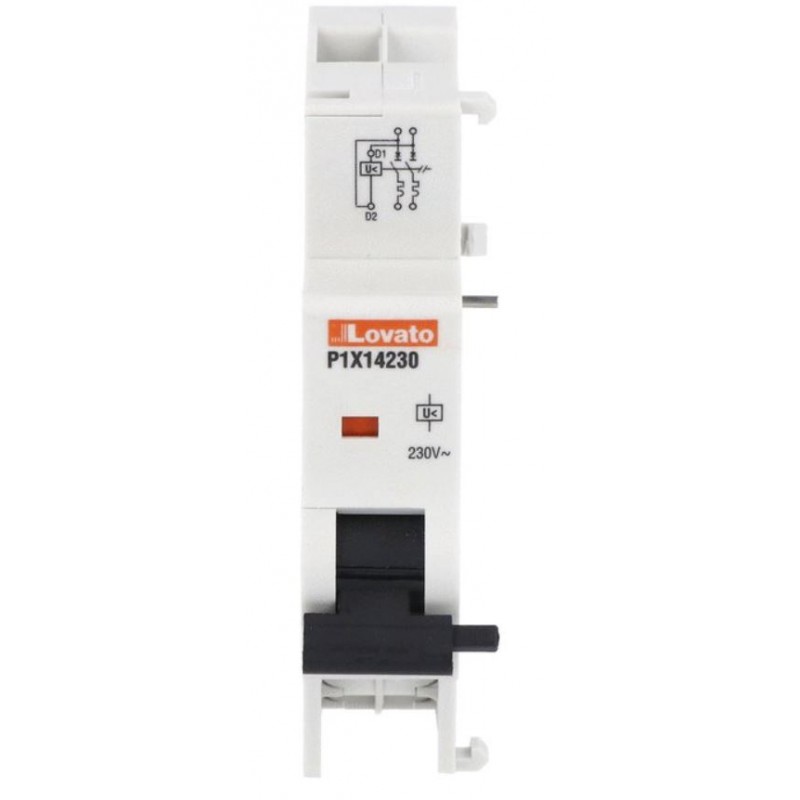

Lovato Undervoltage release 230V 50/60Hz 1 module P1X14230
LOV P1X14230
8013975204924
The undervoltage release P1X14230 230V 50/60Hz, is a 1 module accessory for circuit breakers and residual current devices series P1MB, P1RD, and P1RE. It ensures automatic opening in case of voltage drop or absence:
-
Nominal voltage 230 Vac
-
Frequency: 50/60 Hz
-
Side mounting (1 DIN module)
-
Automatic opening in case of voltage absence
-
Impulse withstand voltage (Uimp): 4 kV
€56.96
Items Available: 8
: 4
Frequently bought together
Undervoltage release P1X14230: safety against accidental restarts
The undervoltage release P1X14230 is a safety device designed to automatically trip the circuit breaker or residual current device in case of a power supply interruption.
Its main function is to prevent the unintentional restart of motors or machinery when the voltage is restored after a blackout or network drop, increasing the safety level for operators and installations.
Operation and applications
Under normal conditions, the release keeps the breaker closed only if the supply voltage is present. In case of absence or drop in voltage, the device causes the automatic opening of the circuit.
It is particularly suitable for:
-
Motor protection and motor circuit breakers
-
Industrial panels
-
Installations with automatic machinery
-
Systems where uncontrolled restart poses a risk
Installation
The device is mounted on the side of the breaker and occupies 1 DIN module, ensuring compact integration in the distribution board.
The side installation allows for easy connection and perfect mechanical integration with devices of the same range.
There are no reviews
Data sheet
- Type: Under-voltage Releases
