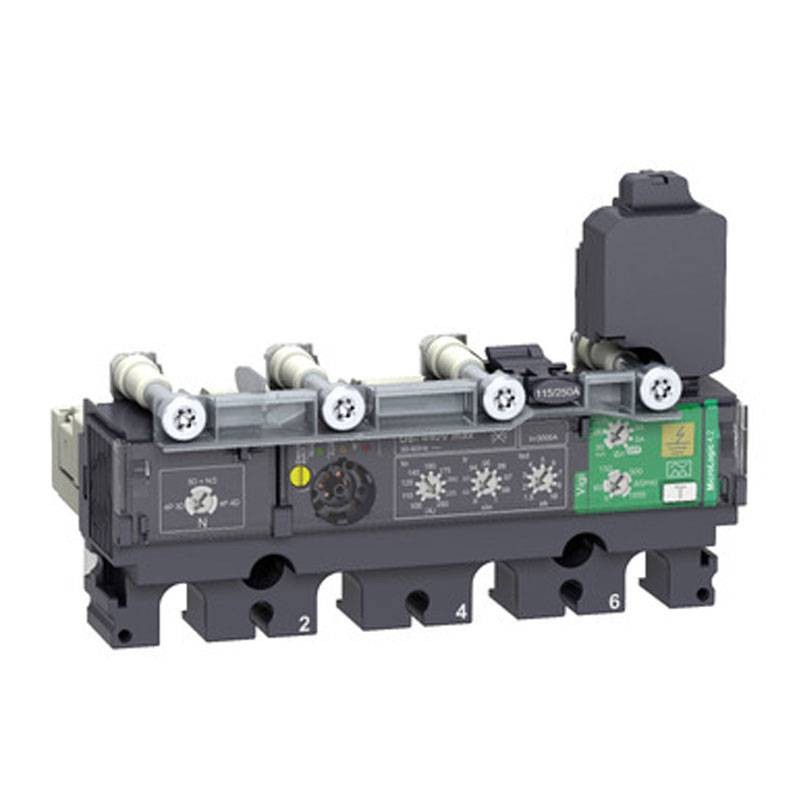

Schneider MicroLogic Under-voltage Release for ComPacT NSX250 4P 250A C2544V250
SNR C2544V250
3606481993878
Schneider MicroLogic Vigi 4.2 Under-voltage Release, is an electronic circuit breaker designed for the ComPacT NSX250 circuit breaker, with built-in differential protection and advanced adjustments to ensure safety and efficiency in electrical systems. Ideal for industrial and tertiary applications, with the following features:
-
Number of poles: 4P
-
Rated current: 250 A
-
Rated operating voltage: 460V AC 50/60 Hz
-
Mains type: AC
-
Switch mounting: Fixed
-
Differential protection type: Class A
-
Electrical protection class: Class II
-
Pollution degree: 3
-
Degree of protection: IP40
€1,600.00
Items Available: 7
: 2
Frequently bought together
MicroLogic Under-voltage Release: flexible adjustments and advanced protection
Advanced protection with flexible adjustments
The MicroLogic Vigi 4.2 releaser has 9 levels of adjustable thermal protection (Ir) to suit the needs of the system. Short delay protection Isd is adjustable, while instantaneous protection Ii is fixed, ensuring quick intervention in case of overloads or short circuits.
Built-in differential protection for superior safety
The MicroLogic Vigi 4.2 offers Class A differential protection, which detects both alternating and pulsating unidirectional fault currents. This makes it ideal for applications where high safety against electrical leakage is required.
Schneider release for NSX250: reliable and easy to install
Reliability in industrial and commercial environments
With its protection class II and pollution degree 3, the MicroLogic Vigi 4.2 is suitable for installations in industrial and tertiary environments, ensuring reliable performance even under harsh operating conditions.
Easy installation and compatibility with ComPacT NSX250
The circuit breaker is designed for fixed mounting on 4-pole ComPacT NSX250 circuit breakers, with the neutral positioned on the left. The rated operating voltage is 460 VAC, with mains frequency 50/60 Hz.
Technical Characteristics.
| Feature | Value |
|---|---|
| Number of poles | 4P |
| Rated current | 250 Amps |
| Rated operating voltage | 460 VAC 50/60 Hz |
| Mains type | AC |
| Mains frequency | 50/60 Hz |
| Neutral position | Left |
| Switch mounting | Fixed |
| Thermal protection adjustment (Ir) | 9 adjustable values |
| Short delay protection (Isd) adjustment | Adjustable |
| Short delay protection timing (tsd) | Fixed |
| Instantaneous protection setting (Ii) | Fixed |
| Differential protection | Integrated |
| Differential protection type | Class A |
| Electrical protection class | Class II |
| Pollution degree | 3 |
| Degree of protection | IP40 |
| Operating environment temperature | -25°C / +70°C |
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Poles: 4P
- Amps: 250A
