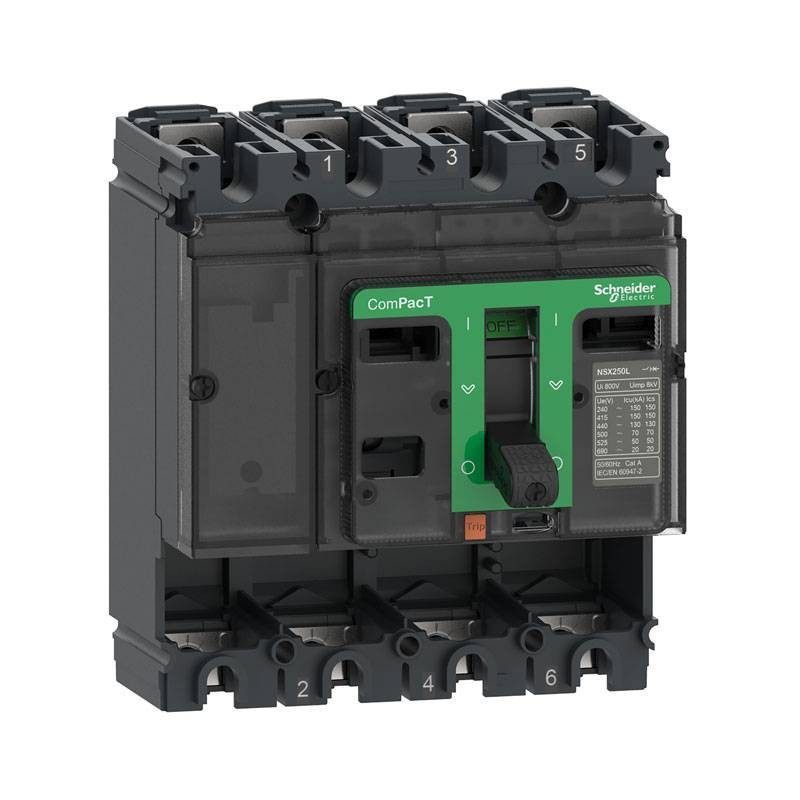

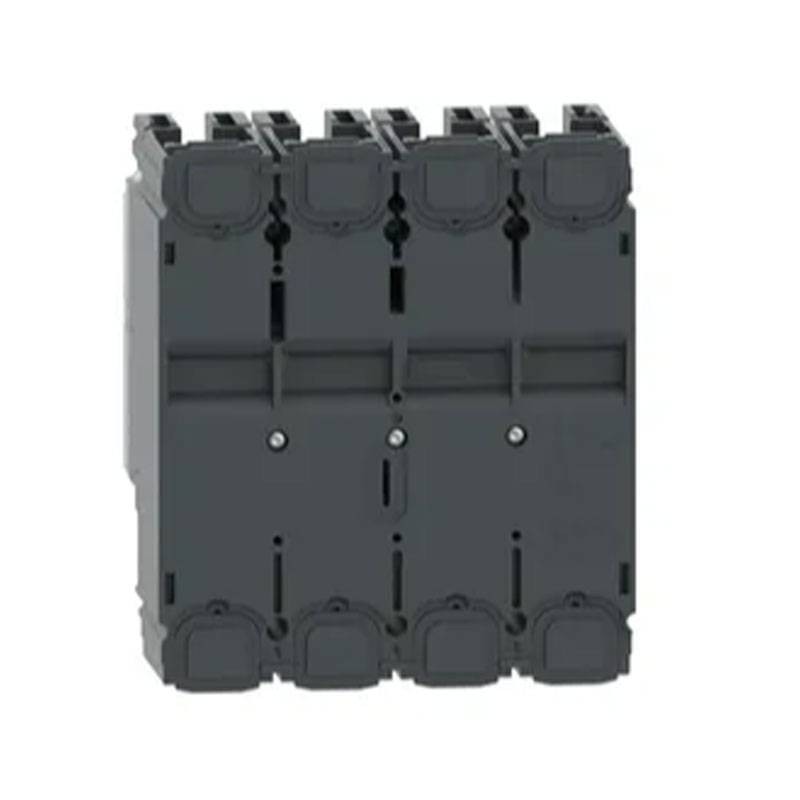

Schneider Circuit Breaker Without Trip ComPacT New Gen NSX250B 25kA 4P C25B4
SNR C25B4
3606481999863
Schneider switch without release ComPacT New Gen with the following features:
- Product type or component: Base breaker
- Performance level: "B" 25 kA 415 V "AC"
- Number of poles: 4
- Rated current: 250A
- Rated operating voltage: 690V AC 50/60 Hz in accordance with IEC 60947-2: Mains type: AC
- Rated insulation voltage: 800V AC 50/60 Hz complying with IEC 60947-2
- Rated impulse withstand voltage: 8 kV complying with IEC 60947-2
- Degree of protection IP40 conforming to IEC 60529
- Degree of protection IK07 complying with IEC 62262
- Operating ambient temperature: -25/+70 degrees
- Storage temperature: -50/+85 degrees
€662.43
Items Available: 27
: 3
Frequently bought together
ComPacT NSX is designed to optimize space and interruption capacity for all standard and specific applications.
Advantages:
- This basic frame is supplied without a breaker, and is compatible with any type of breaker to be ordered separately
- Icu interrupting capacity is 25kA at 415VAC 50/60Hz
- Operating voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if differential protection is present)
- Can be equipped with a variety of optional features and accessories
- Dimensions are 140mm x 161mm x 86mm
- Ensures compliance with international standards (IEC 60947), CCC, EAC and maritime specifications
- ComPacT NSX250B is part of the Schneider Electric EcoStruxure Power architecture
Other technical features:
- Neutral position: Left
- Mounting bracket: Back plate
- Upper attachments: Front side
- Bottom attachments: Front side
- Link pitch: 35mm
- Dimensions: height 161mm - width 140mm - depth 86 mm
- Mechanical life: 20000 cycles in accordance with IEC 60947-2
- Type of control: Lever
- Mounting mode: Fixed
Extreme rated breaking capacity:
- 15 kA Icu conforming to IEC 60947-2 at 500 V "AC" "50/60 Hz"
- 20 kA Icu complying with IEC 60947-2 at 440 V "AC" "50/60 Hz"
- 25 kA Icu complying with IEC 60947-2 at 380/415 V "AC" "50/60 Hz"
- 40 kA Icu complying with IEC 60947-2 at 220/240 V "AC" "50/60 Hz"
Rated service interrupting capacity:
- 20 kA at 440 V "AC" "50/60 Hz" complying with IEC 60947-2
- 25 kA at 380/415 V "AC" "50/60 Hz" complying with IEC 60947-2
- 40 kA at 220/240 V "AC" "50/60 Hz" complying with IEC 60947-2
- 15 kA at 500 V "AC" "50/60 Hz" complying with IEC 60947-2
Electrical life:
- 10000 cycles 440 V "AC" "50/60 Hz" In accordance with IEC 60947-2
- 10000 cycles 690 V "AC" "50/60 Hz" In/2 complying with IEC 60947-2
- 20000 cycles 440 V "AC" "50/60 Hz" In/2 complying with IEC 60947-2
- 5000 cycles 690 V "AC" "50/60 Hz" In complying with IEC 60947-2
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 25KA
- Amps: 250A
