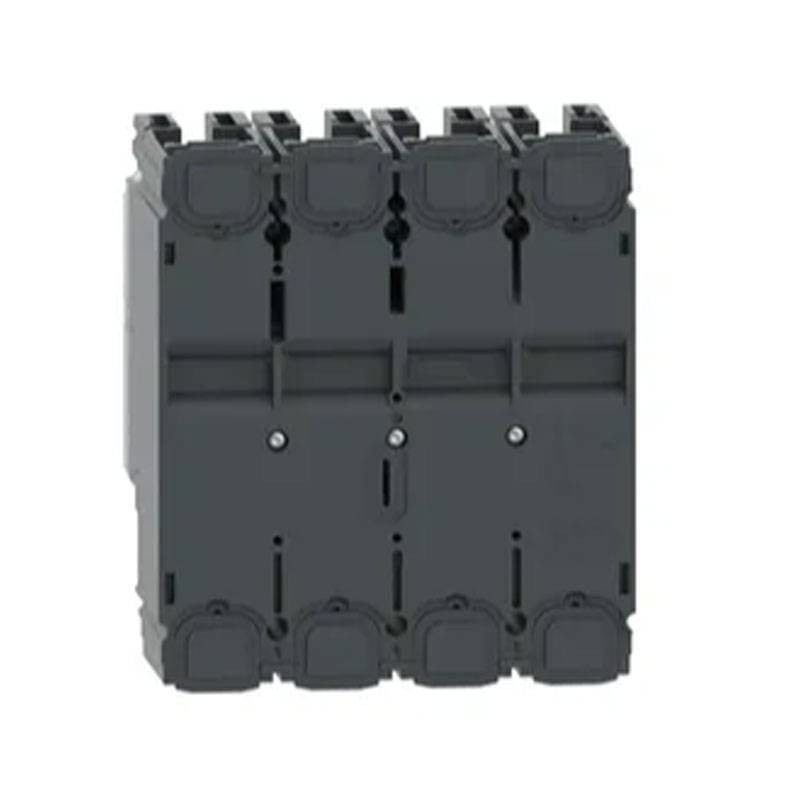

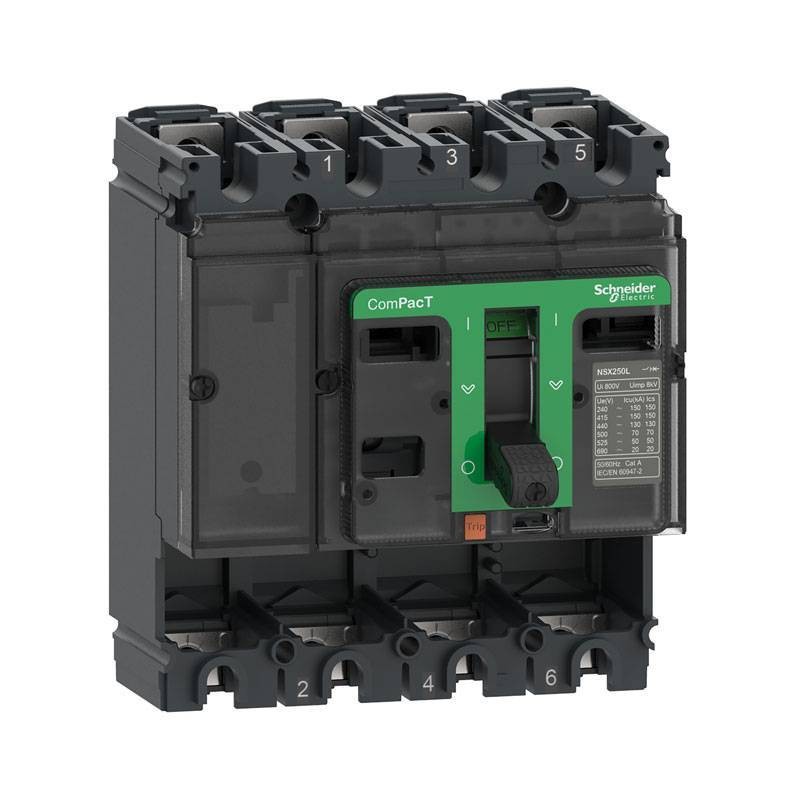

Schneider breaker without release ComPacT New Gen NSX250F 36kA 4P C25F4

Schneider
Schneider
SNR C25F4 3606481999870

Schneider switch without release ComPacT New Gen with the following features:

  • Product type or component: Base breaker
  • Performance level: F 36 kA 415 V "AC"
  • Number of poles: 4
  • Rated current: 250A
  • Rated operating voltage: 690V AC 50/60 Hz in accordance with IEC 60947-2: Mains type: AC
  • Rated insulation voltage: 800V AC 50/60 Hz complying with IEC 60947-2
  • Rated impulse withstand voltage: 8 kV complying with IEC 60947-2
  • Degree of protection IP40 conforming to IEC 60529
  • Degree of protection IK07 in accordance with IEC 62262
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider breaker without release ComPacT New Gen NSX250F 36kA 4P C25F4
€717.89
€717.89

€717.89
Tax included
Calculate shipping cost
Items Available: 16
Further availability of the manufacturer
€717.89

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

ComPacT NSX is designed to optimize space and interruption capacity for all standard and specific applications.

Advantages:

  • This basic frame is supplied without a breaker, and is compatible with any type of breaker to be ordered separately
  • Icu interrupting capacity is 36kA at 415VAC 50/60 Hz
  • Operating voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if differential protection is present)
  • Can be equipped with a variety of optional features and accessories
  • Dimensions are 140mm x 161mm x 86mm
  • Ensures compliance with international standards (IEC 60947), CCC, EAC and maritime specifications
  • ComPacT NSX250F is part of the Schneider Electric EcoStruxure Power architecture

Other features:

  • Neutral position: Left
  • Mounting bracket: Back plate
  • Upper attachments: Front side
  • Bottom attachments: Front side
  • Link pitch: 35mm
  • Dimensions: height 161mm - width 140mm - depth 86mm
  • Control type: Lever
  • Mounting mode: Fixed
  • Mechanical life: 20000 cycles in accordance with IEC 60947-2
  • Operating ambient temperature: -25/+70 degrees
  • Storage temperature: -50/+85 degrees

Extreme rated breaking capacity:

  • 85 kA complying with UL 508 at 240 V "AC" "50/60 Hz"
  • 22 kA Icu complying with IEC 60947-2 at 525 V "AC" "50/60 Hz"
  • 35 kA Icu complying with IEC 60947-2 at 440 V "AC" "50/60 Hz"
  • 36 kA Icu complying with IEC 60947-2 at 380/415 V "AC" "50/60 Hz"
  • 8 kA Icu complying with IEC 60947-2 at 660/690 V "AC" "50/60 Hz"
  • 85 kA Icu complying with IEC 60947-2 at 220/240 V "AC" "50/60 Hz"
  • 35 kA complying with UL 508 at 480 V "AC" "50/60 Hz"
  • 30 kA Icu complying with IEC 60947-2 at 500 V "AC" "50/60 Hz"
  • 15 kA complying with UL 508 at 600 V "AC" "50/60 Hz"

Rated service interrupting capacity:

  • 35 kA at 440 V "AC" "50/60 Hz" complying with IEC 60947-2
  • 36 kA at 380/415 V "AC" "50/60 Hz" complying with IEC 60947-2
  • 85 kA at 220/240 V "AC" "50/60 Hz" complying with IEC 60947-2
  • 22 kA at 525 V "AC" "50/60 Hz" complying with IEC 60947-2
  • 30 kA at 500 V "AC" "50/60 Hz" complying with IEC 60947-2
  • 8 kA at 660/690 V "AC" "50/60 Hz" complying with IEC 60947-2

Electrical durability:

  • 10000 cycles 440 V "AC" "50/60 Hz" In accordance with IEC 60947-2
  • 10000 cycles 690 V "AC" "50/60 Hz" In/2 complying with IEC 60947-2
  • 20000 cycles 440 V "AC" "50/60 Hz" In/2 complying with IEC 60947-2
  • 5000 cycles 690 V "AC" "50/60 Hz" In complying with IEC 60947-2

There are no reviews

Data sheet

Type:
Switches
Poles:
4P
Breaking capacity:
36KA
Amps:
250A
