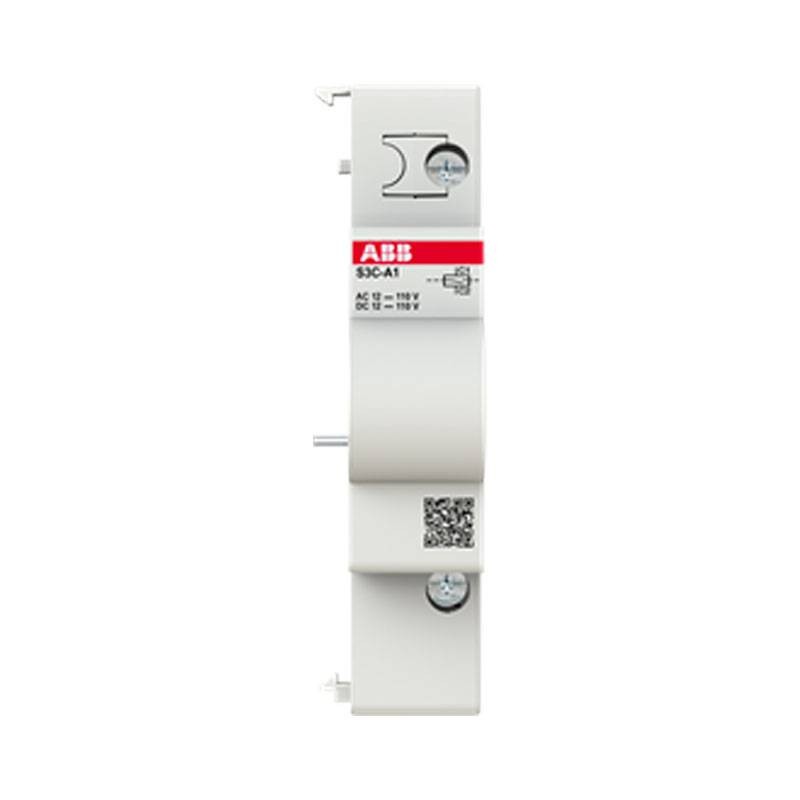

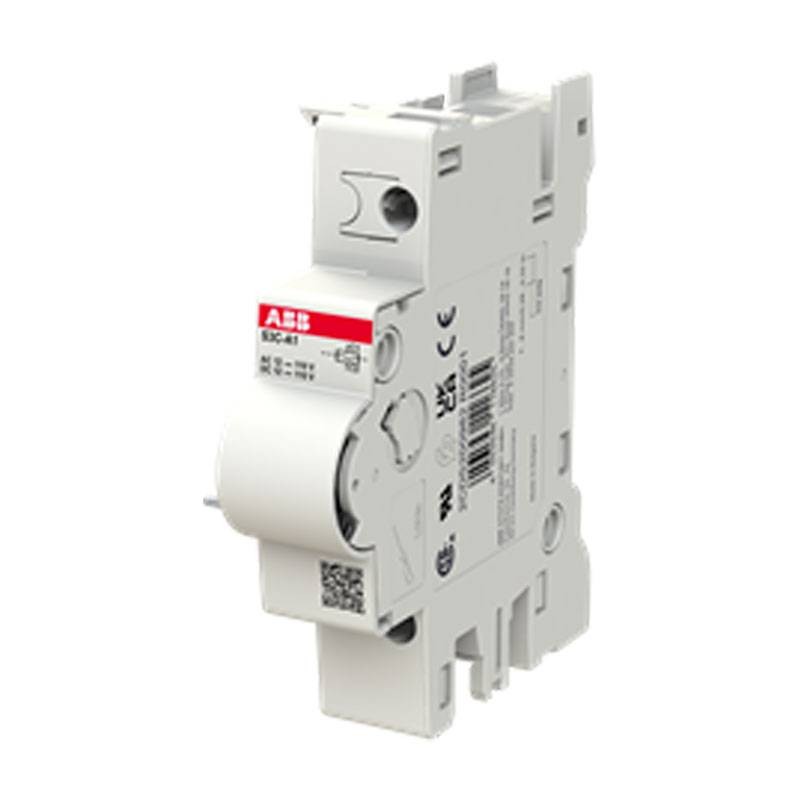

Abb 12-110V AC/DC release coil for 1M modular circuit breakers S3CA1

Abb
Abb
ABB S3CA1 4053546116625

Abb release coil for modular switches, right side mounting, screw terminals, 1 DIN module, with the following features:

  • Operating voltage: 12-110V AC/DC

  • Compatible with: S200, S200 M, S200 MT, S200 MTR, S300 P, F200, DS200, SD200, VY30

  • Mounting: Right side on switches

  • Terminal type: Screw terminals

  • Width: 1 DIN module (17.4 mm)

  • Useful for: Remote opening of the switch

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb 12-110V AC/DC release coil for 1M modular circuit breakers S3CA1
€31.04
€31.04

€31.04
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€31.04

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Abb auxiliary coil for remote opening

The 12110V AC/DC release coil is an essential accessory for remote management of electrical protection, capable of automatically opening the circuit breaker in the presence of a voltage on the control. It is designed to ensure safety and efficiency in civil and industrial electrical systems.

It is quickly installed on the right side of the circuit breaker or differential device, enabling remote control by a simple electrical impulse. Its wide operating voltage range (12÷110V) makes it versatile for multiple uses.

Device compatibility

This coil is compatible with a wide range of Abb devices, including:

  • Circuit breakers S200, S200 M, S200 MT, S200 MTR, S200 P, S200 MUC

  • F200 earth leakage circuit breakers, DS200, DS301C, VY

  • SD200 Disconnect Switches

  • Modular switches S300 P, VY30

Typical applications

  • Residential or industrial switchboard

  • Security systems or remote control

  • Applications with remote control via PLC

  • Home automation, BMS and supervisory systems

  • Protection on lines that are difficult to reach manually

Technical Characteristics Release Coil Abb


Installation and Compatibility

Mounting Right side switch
Compatibility Product Classes Switches/Auxiliary Relays


Electrical Specifications

Operating voltage 12...110 V AC/DC
Voltage type AC/DC


Connections and Wiring

Terminal type Screw type
Tightening torque 0.8 Nm
Connection capacity 0.75 to 2.5 mm² (rigid/flexible)
Cable stripping length 7 mm


Dimensions and Mounting

Number of DIN modules 1
Width 17.4 mm
Height 85 mm
Depth 74.1 mm

There are no reviews

Data sheet

Type:
Coils
Voltage:
12/110V
Model:
Release
