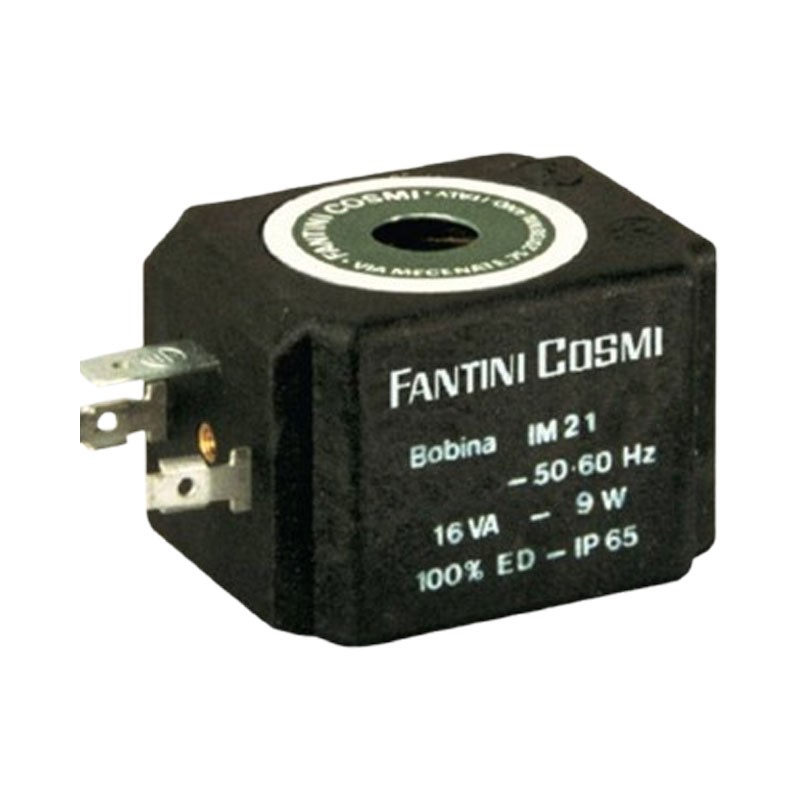

Fantini Cosmi Coil for M20/M23 24Vca Solenoid Valves IM21F
FAN IM21F
8025863008026
The Fantini Cosmi IM21F coil is designed to control M2 and M23 series solenoid valves. Made of high-quality materials, it is ideal for applications requiring reliability, efficiency and resistance to demanding operating conditions:
-
Universal compatibility: Suitable for M2 and M23 series valve bodies.
-
Durable materials: Thermoplastic body with 30% glass fiber for durability
-
Insulation class: F (155°C), ensuring reliability for continuous use (100% ED)
-
Class H for copper wire: Resistant up to 180°C, ideal for intensive working conditions
-
IP65 rating: Resistant to dust and splashing water
-
Wide temperature range: Suitable for environments with maximum temperature up to 50°C.
€12.34
Items Available: 4
: 2
Frequently bought together
Technical Specifications of Fantini Cosmi IM21F Coil
- Model: IM21F.
- Compatibility: M2 and M23 valve bodies.
- Power supply 24 Vac 50/60Hz
- Inrush coil absorption 25VA
- Active power 9W
Materials:
- Body: Thermoplastic with 30% glass fiber
- Copper wire: Class H (180°C)
- Insulation class: F (155°C)
- Degree of protection: IP65
- Maximum ambient temperature: 50°C
Electrical characteristics:
- Operating limits: ±10% (AC), -5% ÷ +10% (DC)
- Connections: Terminals for 2P connector + ground
Recommended applications
- Solenoid valves for hydraulic and pneumatic systems: Reliable and precise control
- Industrial plants: Ideal for applications requiring high strength and safety
- Harsh environments: Perfect for conditions with the presence of dust or moisture, thanks to IP65 rating
There are no reviews
Data sheet
- Type: Coils
