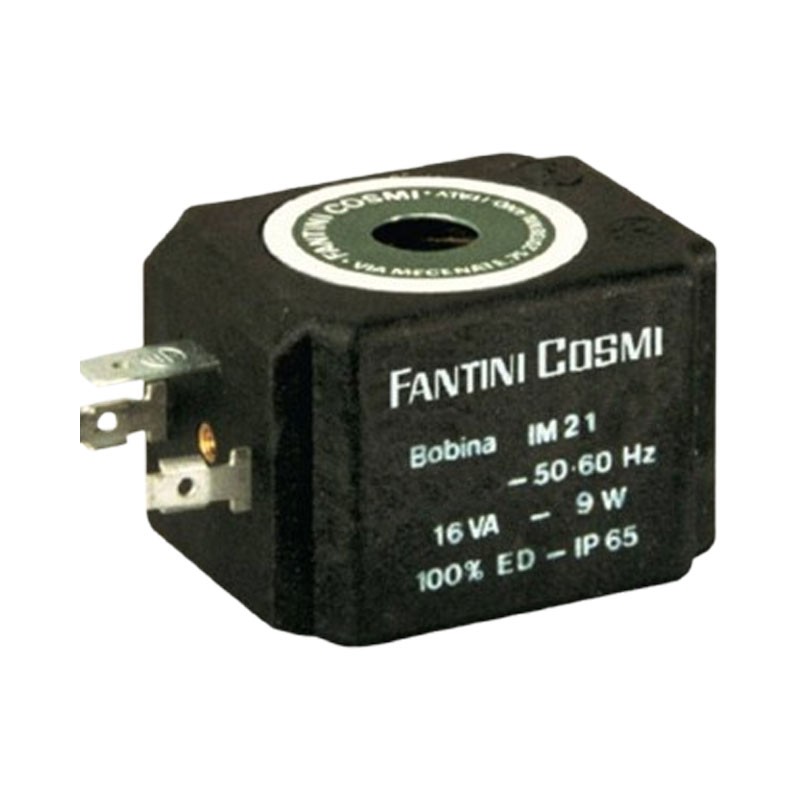

Fantini Cosmi coil for solenoid valves M20/M23 230Vac IM21M

Fantini Cosmi
Fantini Cosmi
FAN IM21M 8025863008040

The Fantini Cosmi IM21M coil is designed to control M20 and M23 series solenoid valves with 230Vac power supply. With high-quality materials and advanced technology, it is ideal for applications requiring reliability, durability and high performance:

  • Suitable for M20 - M23 valves

  • 230 Vac 50/60 Hz power supply

  • Inrush coil power consumption 25VA

  • Active power 9W

  • Thermoplastic body reinforced with 30% glass fiber for added strength and durability

  • Class H copper wire, resistant up to 180°C

  • Insulation class F: Operational up to 155°C, perfect for continuous use (100% ED)

  • IP65 degree of protection: Resistant to dust and splashing water

  • Wide temperature range: Suitable for environments with maximum temperature up to 50°C

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fantini Cosmi coil for solenoid valves M20/M23 230Vac IM21M
€12.34
€12.34

€12.34
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€12.34

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Fantini Cosmi coil for solenoid valves M20/M23 230Vac IM21M

Electrical characteristics

Operating limits:

  • Alternating current (AC) coils: ±10%.
  • Direct current (DC) coils: -5% ÷ +10%
  • Electrical connections: 2P connector terminals + ground

Main advantages

  • Strength and durability: Rugged construction with high-quality materials to cope with intensive applications.
  • Safety: IP65 rating to withstand dusty or humid environments.
  • Operational efficiency: Insulation class F and class H copper wires for reliable performance even under continuous use.
  • Ease of integration: Compatible with M20 and M23 series solenoid valves for quick installation

Fantini Cosmi IM21M Coil Specifications

  • Model: IM21M.
  • Compatibility: M20 and M23 solenoid valves.
  • Materials/Body: Thermoplastic reinforced with 30% glass fiber.
  • Copper wire: Class H (180°C).
  • Insulation class: F (155°C).
  • Degree of protection: IP65.
  • Maximum ambient temperature: 50°C.
  • Electrical characteristics:
  • Operating limits: ±10% (AC), -5% ÷ +10% (DC).
  • Connections: Terminals for 2P connector + ground

Recommended applications

  • Control of solenoid valves: In hydraulic and pneumatic systems
  • Industrial plants: Ideal for environments requiring high strength and reliability
  • Harsh environments: Perfect for operating conditions with the presence of dust or moisture

There are no reviews

Data sheet

Type:
Coils
