TVSAT Coaxial Cable FTE 6,8 mm in PVC skein by 100 meters K290EW

Fte
Fte
FTE K290EW 8055271130026

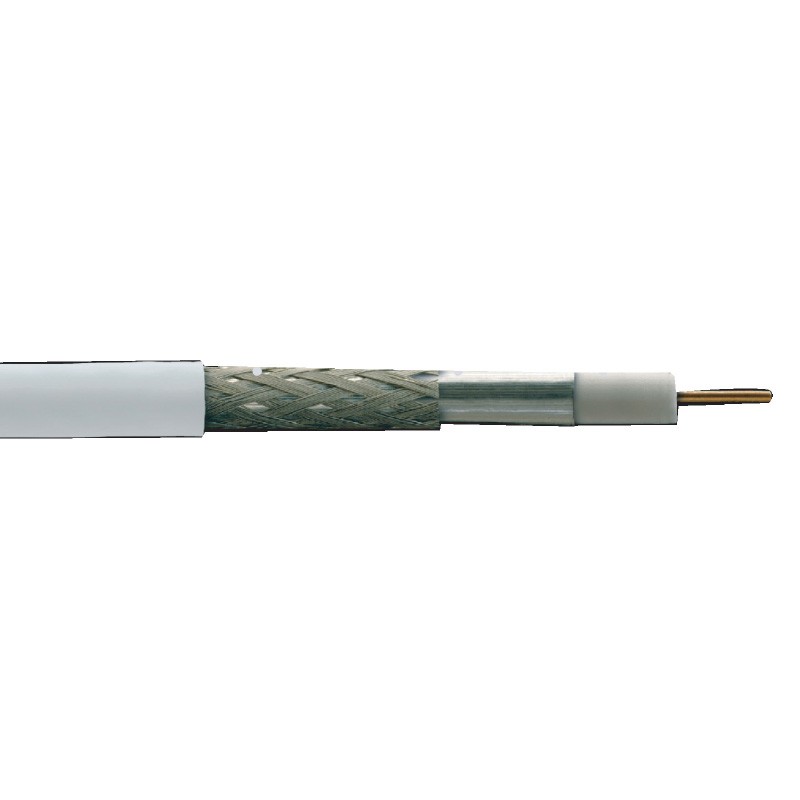

TVSAT FTE K290EW coaxial cable with CCS central conductor, 6.8 mm diameter in class A and built with the appropriate specifications for low toxic gas dispersion in case of fire.

Do you have questions about this product or did you not find what you were looking for? Ask us!
TVSAT Coaxial Cable FTE 6,8 mm in PVC skein by 100 meters K290EW
€0.55
€0.55

The minimum purchase order quantity for the product is 100.

€0.55
Tax included
Calculate shipping cost
Items Available: 4000
Further availability of the manufacturer
€0.55

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Strengths:

  • Inner conductor in copper-plated steel
  • Outer sheath in white PVC
  • Braid coverage 77
  • Excellent shielding, class A
  • CPR Euroclass Eca.

Applications:

  • Suitable for distributing TV and SAT signals over medium distances.

Characteristics:

  • Internal conductor material CCS - Copper plated steel
  • Internal conductor diameter - mm 1,13
  • Dielectric material PE foam
  • Dielectric diameter - mm 4,8
  • Tape material AL/Pet/Al
  • Braid material Al
  • Number of braid wires 128 ( 16 x 8)
  • Braid wire diameter - mm 0,12
  • Braid optical coverage - mm 77
  • Shielding type Double
  • Outer sheath diameter - mm 6,8 ± 0,20
  • Outer sheath material white PVC - UV Resistant
  • Reaction to fire - Class CPR Eca
  • Cable Weight - kg / km 41
  • Minimum Bending Radius - mm 136
  • Impedance - Ohm 75
  • Capacitance - pF/m 53
  • Velocity of propagation - % 84
  • DC resistance inner/outer conductor - Ohm/km <85 / <33
  • Attenuation @ 175 MHz - dB/100m 7.8
  • Attenuation @ 470 MHz - dB/100m 12,1
  • Attenuation @ 862 MHz - dB/100m 16,6
  • Attenuation @ 950 MHz - dB/100m 17,5
  • Attenuation @ 1350 MHz - dB/100m 21,8
  • Attenuation @ 1750 MHz - dB/100m 25
  • Attenuation @ 2150 MHz - dB/100m 28,2
  • Attenuation @ 2400 MHz - dB/100m 30,00
  • Reflection loss @ 5 ÷ 470 MHz - dB >23
  • Reflection loss @ 470 to 1000 MHz - dB >20
  • Reflection loss @ 1000 to 2000 MHz - dB >18
  • Reflection loss @ 2000 to 3000 MHz - dB >15
  • Shielding efficiency Class A
  • Shielding efficiency @ 30 ÷ 1000 MHz - dB >85
  • Shielding efficiency @ 1000 ÷ 2000 MHz - dB >75
  • Shielding efficiency @ 2000 ÷ 3000 MHz - dB >65
  • Minimum installation temperature - ° C -20
  • Operating temperature - ° C -20 ÷ 70

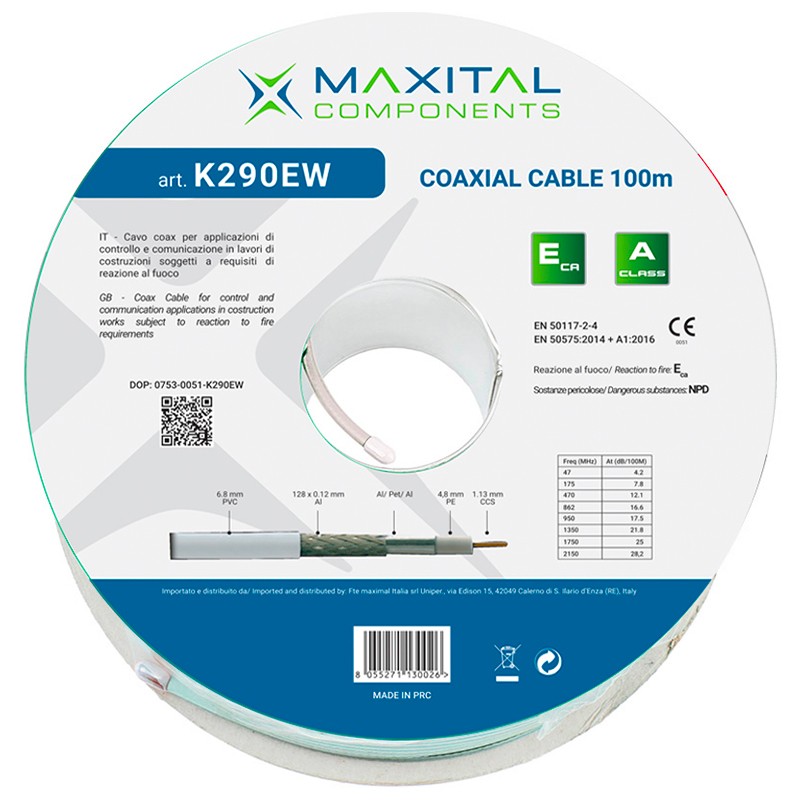

  • Type of single packaging Cardboard reel
  • Unit size - m 100
  • Multiple packaging type Cardboard box.

There are no reviews

Data sheet

Diameter:
6,8mm
Type:
TV/SAT Cables
