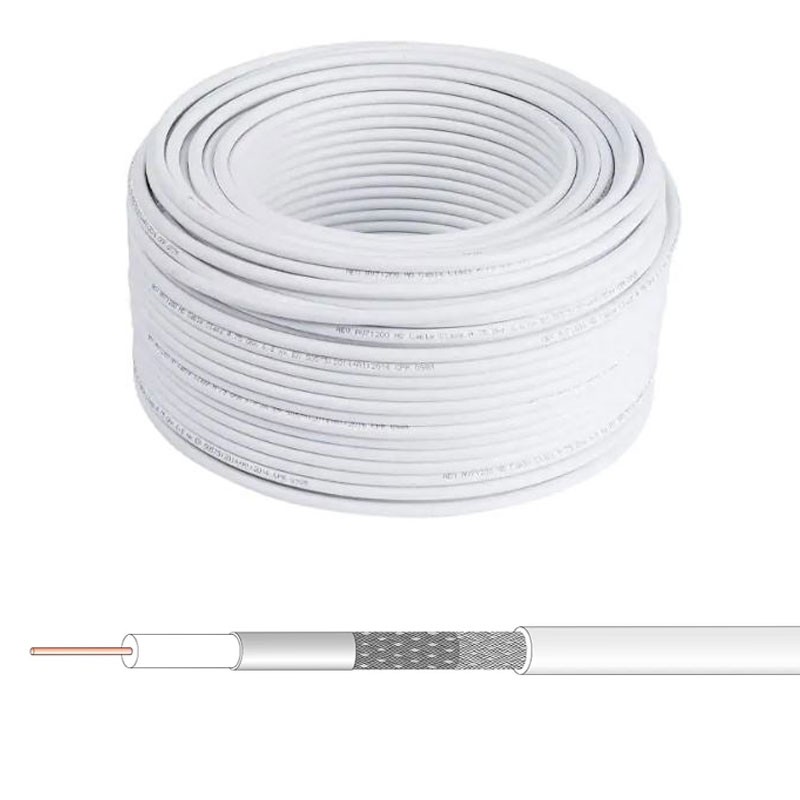

Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102


FRA PAS4016102 8016978052097

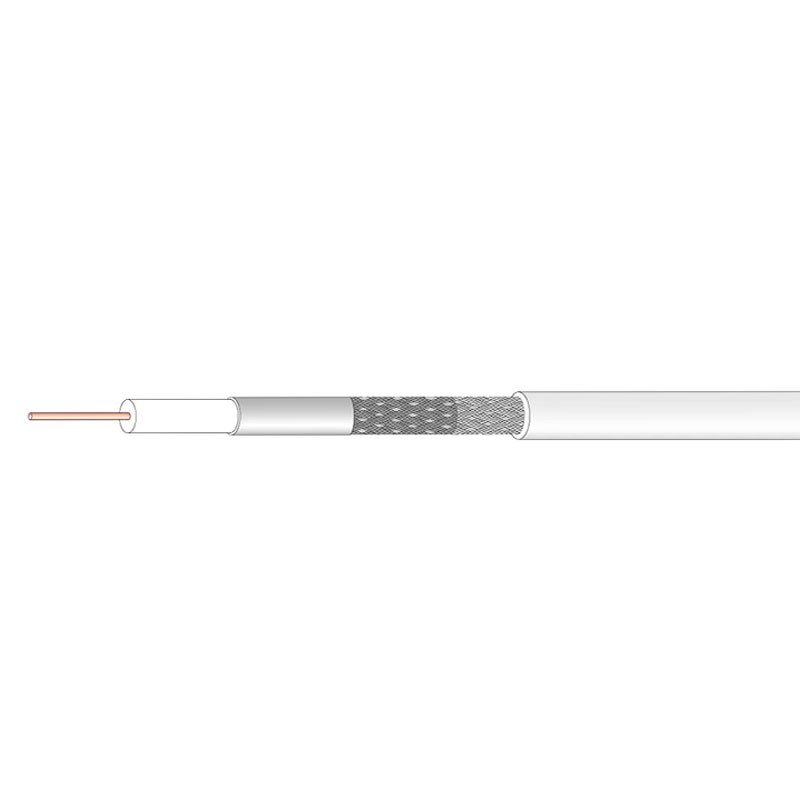

Fracarro 6.7mm indoor coaxial cable with copper (Cu) inner conductor and tinned copper (CuSn) braid; white PVC outer jacket and CPR Eca class.


The selling price is intended per meter.

Minimum saleable quantity: 100 meters.

Request info about this product

Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102

€0.56
€0.56

Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102

The minimum purchase order quantity for the product is 100.

€0.56
Tax included
klarna Pay in installments with Klarna
Items Available: 33900
qty

Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102

€0.56

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Wednesday, 10 April
Two-year warranty
Secure Payment
Easy return within 14 days

Specifications:

  • Capacity: 52
  • Propagation rate: 85%
  • Minimum bending radius mm: 35
  • Resistance: Ohm/Km 22.5
  • Outer conductor resistance: Ohm/Km 27
  • Inner conductor: Material: Cu
  • Dielectric: Material: Pee, Diameter: 4.7
  • First screen foil material: Al/Pet
  • First screen foil coverage: 100%
  • Braid material: CuSn
  • Braid coverage: 40%
  • Anti-migrating foil: Pet
  • Outer sheath: white Pvc material - Diameter 6.7


Attenuation (100m):

  • Attenuation 5 dB 1.6
  • Attenuation 50 dB 4.6
  • Attenuation 200 dB 9.0
  • Attenuation 470 dB 14.5
  • Attenuation 800 dB 18.6
  • Attenuation 1000 dB 21.1
  • Attenuation 1350 dB 25.0
  • Attenuation 1750 dB 27.9
  • Attenuation 2150 dB 31.7
  • Attenuation 2400 dB 33.2
  • Attenuation 2700 dB 35.8

Reflection loss:

  • 30-470 MHz dB >30
  • 470-862 MHz dB >25
  • 862-1750 MHz dB >20
  • 1750-2400 MHz dB >20


Shielding efficiency:

  • 5-30 MHz dB >75
  • 30-1000 MHz dB >85
  • 1000-2150 MHz dB >85
  • Shielding class (EN-50117-9-2): B

Data sheet

Diameter:
6,7mm
Type:
TV/SAT Cables
