TVSAT Coaxial Cable FTE 5mm PVC White 100 Meters K120EE

Fte
Fte
FTE K120EE 8055271130125

TVSAT coaxial cable FTE K120EE with central conductor in CCS, 5 mm section in class B, built with the appropriate specifications for low dispersion of toxic gases in case of fire.

Do you have questions about this product or did you not find what you were looking for? Ask us!
TVSAT Coaxial Cable FTE 5mm PVC White 100 Meters K120EE
€0.21
€0.21

The minimum purchase order quantity for the product is 100.

€0.21
Tax included
Calculate shipping cost
Items Available: 7500
Further availability of the manufacturer
€0.21

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

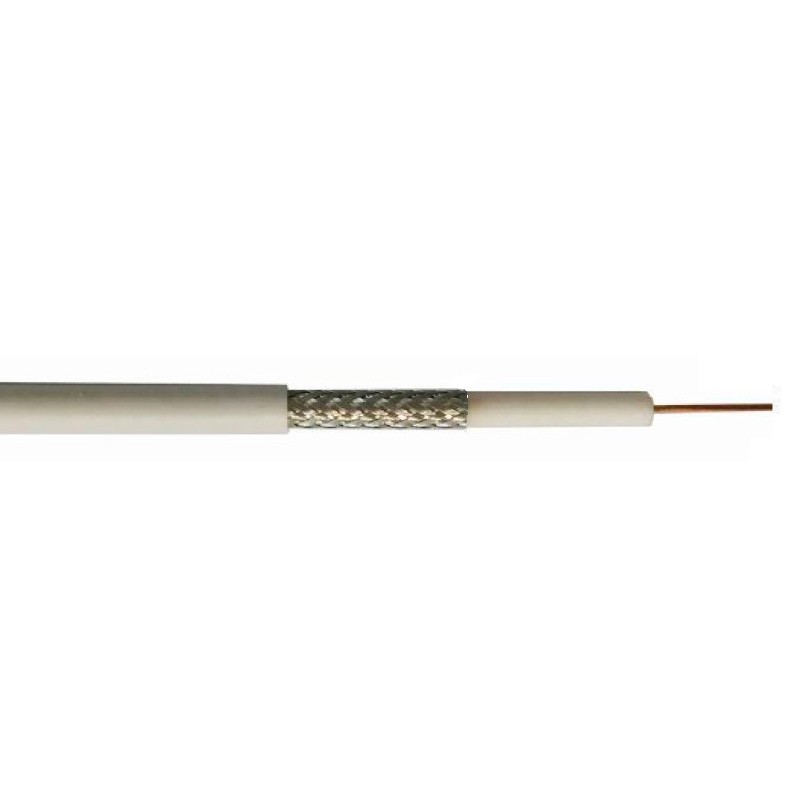

Strengths:

  • Inner conductor in copper-plated steel
  • Outer sheath in white PVC
  • Braid coverage 44
  • Shielding class B
  • CPR Euroclass Eca.

Applications:

  • Suitable for distributing TV and SAT signals along medium/short distances.

Characteristics:

  • Internal conductor material CCS - Copper plated steel
  • Internal conductor diameter - mm 0,8
  • Dielectric material PE foam
  • Dielectric diameter - mm 3,55 ± 0,10
  • Tape material Al/Pet
  • Braid material Al
  • Number of braid wires 48 (16 x 3 )
  • Braid wire diameter - mm 0,12
  • Optical coverage braid - mm 44
  • Shielding type Double
  • Outer sheath diameter - mm 5,2
  • External sheathing material white PVC - UV resistant
  • Reaction to fire - Class CPR Eca
  • Cable weight - kg / km 21
  • Minimum bending radius - mm 100
  • Impedance - Ohm 75
  • Capacity - pF / m 53
  • Velocity of propagation - % 84
  • DC resistance inner/outer conductor - Ohm/km <235 / <70
  • Attenuation @ 175 MHz - dB/100m 18.4
  • Attenuation @ 470 MHz - dB/100m 22,4
  • Attenuation @ 862 MHz - dB/100m 27,1
  • Attenuation @ 950 MHz - dB/100m 28,0
  • Attenuation @ 1350 MHz - dB/100m 32,2
  • Attenuation @ 1750 MHz - dB/100m 36,3
  • Attenuation @ 2150 MHz - dB/100m 40,2
  • Attenuation @ 2400 MHz - dB/100m 41,2
  • Reflection loss @ 5 ÷ 470 MHz - dB >23
  • Reflection loss @ 470 to 1000 MHz - dB >20
  • Reflection loss @ 1000 to 2000 MHz - dB >18
  • Reflection loss @ 2000 to 3000 MHz - dB >15
  • Shielding efficiency Class B
  • Shielding efficiency @ 30 ÷ 1000 MHz - dB >=75
  • Shielding efficiency @ 1000 ÷ 2000 MHz - dB >=65
  • Shielding efficiency @ 2000 ÷ 3000 MHz - dB >=55
  • Minimum installation temperature - ° C -20
  • Operating temperature - ° C -20 ÷ 70

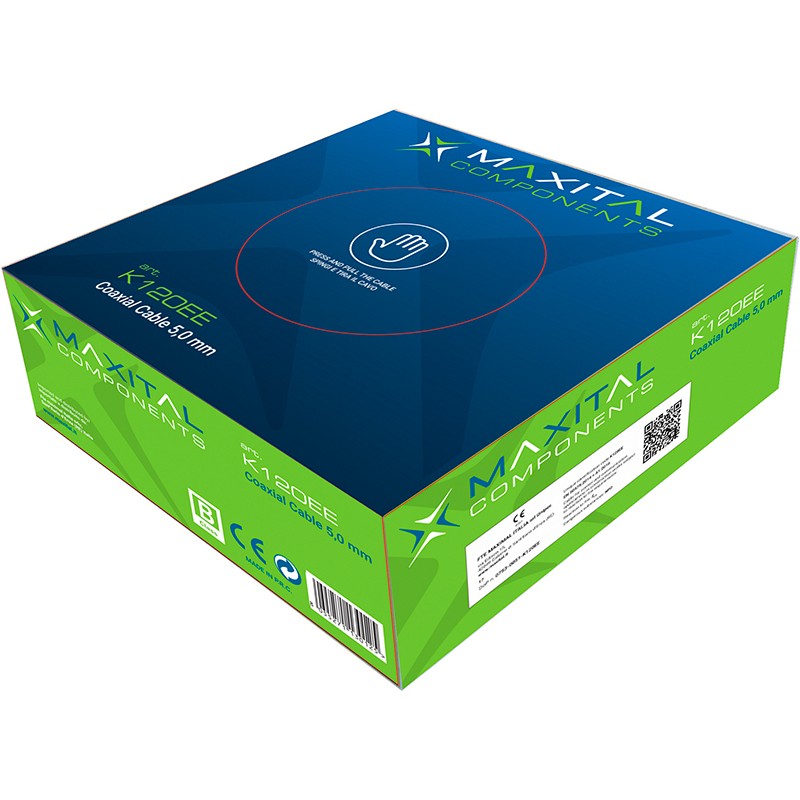

  • Type of packaging single skein in box
  • Unit size - m 100.

Come descrizione Prodotto conforme !!!!

Read all reviews

Data sheet

Diameter:
5mm
Type:
TV/SAT Cables
