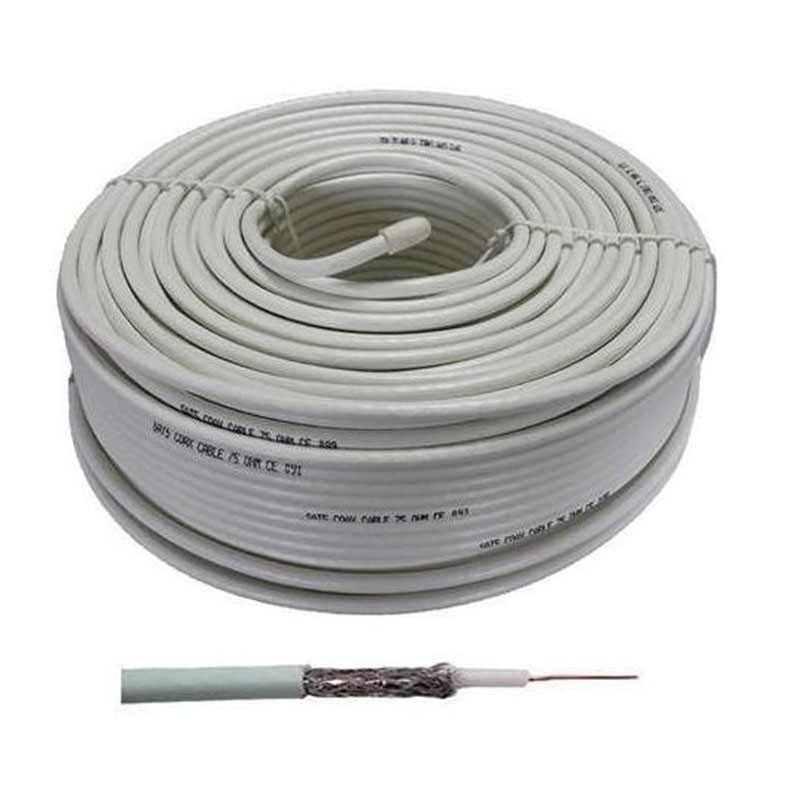

FTE 6.8 mm low-loss gas-injected coaxial cable K200EE
FTE K200EE
8055271130040
TV-SAT Fte coaxial cable, with CCS center conductor, 6.8 mm cross section in Class B, constructed with the appropriate specifications for low toxic gas dispersion in case of fire.
Inner conductor of copper-plated steel, outer sheath of white PVC, braid coverage 36%, shielding class B, CPR Euroclass Eca.
Suitable for distributing TV and SAT signals up to medium distances.
Sale price is per meter, minimum sellable quantity hank of 100 meters.
€0.30
Items Available: 4500
: 200
Specifications:
- Inner conductor material CCS - Copper-plated steel
- Inner conductor diameter - mm 1.0
- Dielectric material PE foam
- Dielectric diameter: 4.6 mm
- Tape material: Al/Pet
- Braid material: Al
- Number of braid wires: 48 (16 x 3 )
- Braid wire diameter: 0.12mm
- Optical coverage braid: 36mm
- Shield type: double
- Outer sheath diameter: 6.8mm
- Outer sheath material: white PVC - UV resistant
- Reaction to fire - CPR class: Eca
- Minimum bending radius:136mm
- Impedance: Ohm 75
- Capacity - pF / m 53
- Propagation rate: 84%.
- DC resistance inner/outer conductor - Ohm/km: <135 / <70
- Attenuation @ 175 MHz - dB/100m 13.8
- Attenuation @ 470 MHz - dB/100m 16.6
- Attenuation @ 862 MHz - dB/100m 20
- Attenuation @ 950 MHz - dB/100m 20.5
- Attenuation @ 1350 MHz - dB/100m 24
- Attenuation @ 1750 MHz - dB/100m 27.5
- Attenuation @ 2150 MHz - dB/100m 30.9
- Attenuation @ 2400 MHz - dB/100m 33.0
- Reflection loss @ 5 ÷ 470 MHz - dB >23
- Reflection loss @ 470 to 1000 MHz - dB >20
- Reflection loss @ 1000 ÷ 2000 MHz - dB >18
- Reflection loss @ 2000 to 3000 MHz - dB >15
- Shielding efficiency: Class B
- Shielding efficiency @ 30 ÷ 1000 MHz - dB >=75
- Shielding efficiency @ 1000 ÷ 2000 MHz - dB >=65
- Shielding efficiency @ 2000 ÷ 3000 MHz - dB >=55
- Minimum installation temperature: -20°C
- Operating temperature: -20/+70°C
Data sheet
- Diameter: 6,8mm
- Type: TV/SAT Cables
