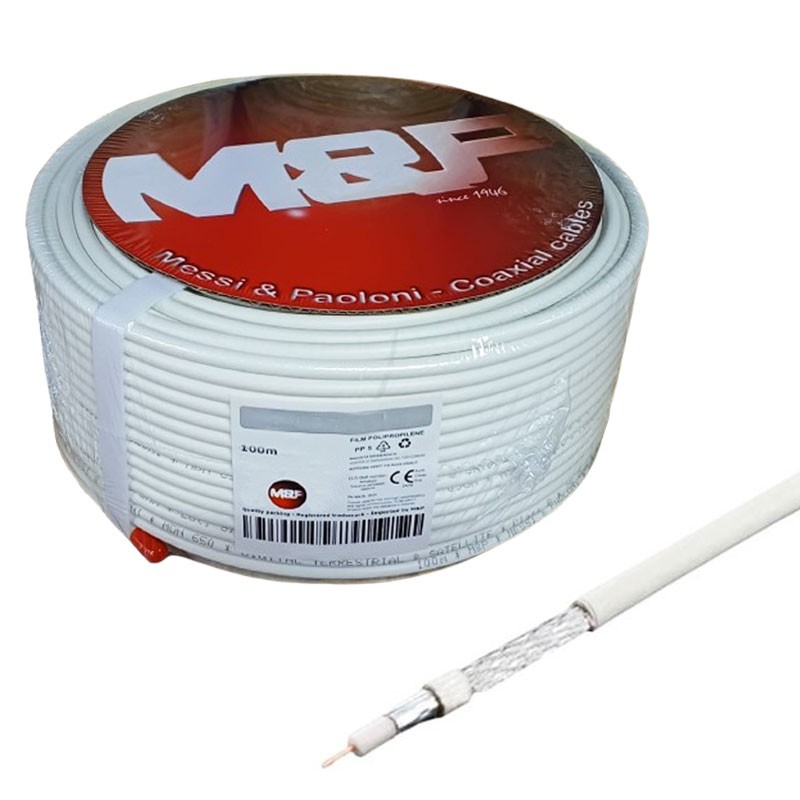

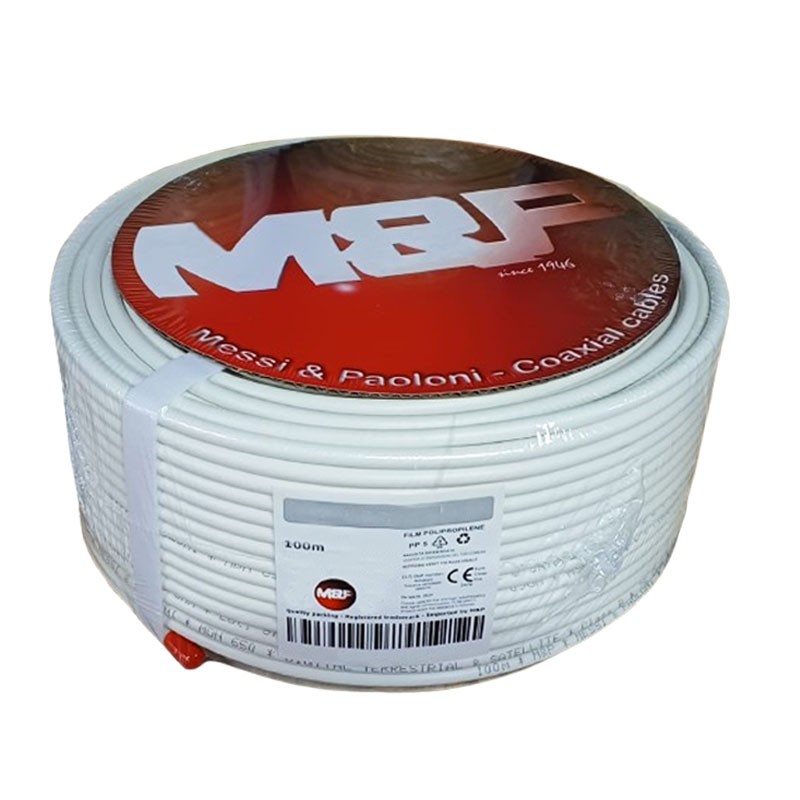

6.5mm Class B coaxial TV cable 100 meters white MDN650AR100

Cavi
MEP MDN650AR100

Insulated shielded coaxial cable for receiving digital terrestrial and satellite TV signal with the following characteristics:

  • Conductor : CCS
  • Class : B
  • Conductor diameter : 1.02 mm
  • Insulation : Aluminum / PET
  • Insulation diameter: 4.70 mm
  • Outer diameter : 6.6mm
  • Impedance: 75 Ohm
  • Propagation speed: 85 %.

100-meter skein.

Do you have questions about this product or did you not find what you were looking for? Ask us!
6.5mm Class B coaxial TV cable 100 meters white MDN650AR100
€0.26
€0.26

The minimum purchase order quantity for the product is 100.

€0.26
Tax included
Calculate shipping cost
Items Available: 12598
Further availability of the manufacturer
€0.26

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Highly effective double-layer shielding tape against high-frequency interference
  • 100% AL-POL coverage
  • Dielectric made of physically expanded polyethylene PEG ø4.6 mm
  • Screen made of tenacious aluminum-magnesium alloy (AIMg)
  • Braiding is operated by 16-spool machines, very effective against impulsive noise
  • Coverage: 40% 48 wires
  • Conductor made of copper-clad steel (CSS) treated by thermal process that ensures its high flexibility in bending
  • Transfer impedance: <10 mOhm/m
  • Inner conductor resistance: 100 Ohm/Km
  • Outer conductor resistance: 55 Ohm/Km
  • Sheath voltage test: 4 Kv
  • Metrication screen-printed on the cable

Cavo di qualità. Prezzo conveniente . sono soddisfatto.

Read all reviews

Data sheet

Diameter:
6,5mm
Type:
TV/SAT Cables
