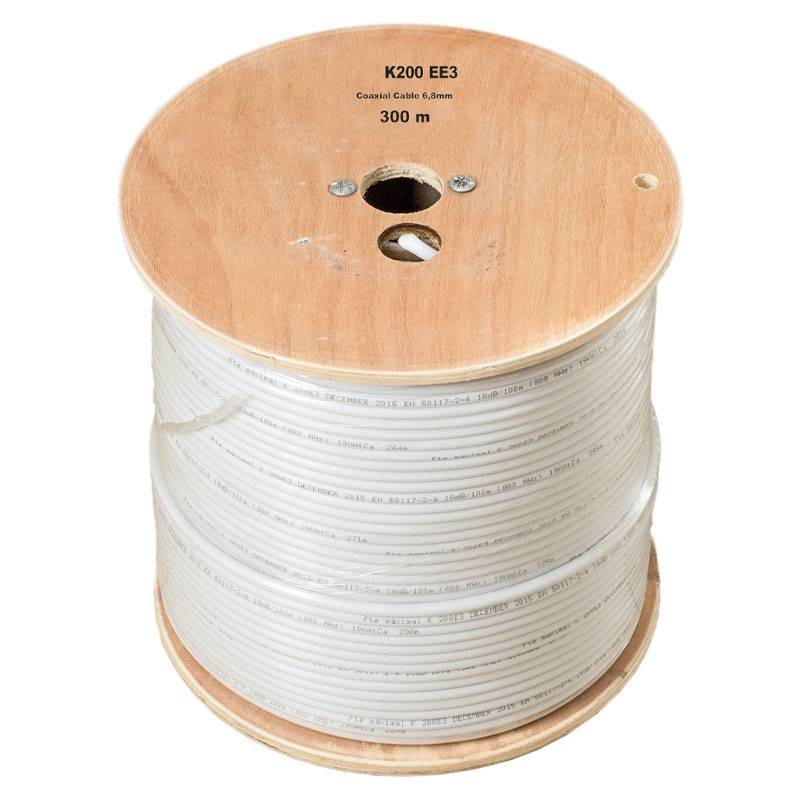

Fte 6.8 mm coaxial cable for TV and SAT PVC white 300 meters K200EE3
FTE K200EE3
8055271130057
Fte coaxial cable, double shielded class B, CCS copper-plated steel conductor. Ideal for TV and SAT signal distribution at medium distances, Euroclass CPR Eca, with the following characteristics:
-
Coaxial cable from: 6.8 mm for TV/SAT signal
-
Conductor: CCS (copper-plated steel), diameter 1.0 mm
-
Outer sheath: white UV-resistant PVC
-
Double shielding: aluminum and Al/Pet Class B tape
-
Low attenuation: up to 2400 MHz
-
Reaction to fire: CPR Euroclass Eca
-
Impedance: 75 Ohm
Sale price is per meter, sellable by 300 meter coil only.
€0.29
Items Available: 300
6.8 mm Fte coaxial cable for TV and SAT
Professional 6.8 mm coaxial cable designed for efficient transmission of TV and satellite signals up to medium distances. With low attenuation and double shielding, it offers stable and durable performance in home, condominium and commercial environments.
Double shielding and Class B: signal protected from interference
Shielding composed of Al/Pet tape and aluminum braid with 48 wires (36% coverage) provides optimal protection against electromagnetic interference. With a shielding efficiency of ?75 dB up to 1000 MHz, it ranks Class B according to EN 50117 standards.
Reliable and durable construction
The 1 mm CCS copper-plated steel inner conductor, combined with the PE foam dielectric and UV-resistant white PVC outer sheath, ensures mechanical strength and electrical stability even in harsh environmental conditions (temperatures from -20 to +70 degrees).
Complies with the CPR Eca standard
The cable complies with the European CPR (Construction Products Regulation) Euroclass Eca, limiting the production of toxic gases in case of fire and ensuring safe use in closed environments.
Technical Characteristics Fte Coaxial Cable
Structure and Construction
| Parameter | Value |
|---|---|
| Outer diameter | 6.8 mm |
| Coil length | 300 m |
| Inner conductor | CCS - copper-plated steel Ø 1.0 mm |
| Dielectric | PE foam Ø 4.6 mm |
| Shielding | Double (Al/Pet tape + Al braid) |
| Braid Coverage | 36% (48 strands - Ø 0.12 mm) |
| Sheath color | UV-resistant white |
Electrical Performance
| Parameter | Value |
|---|---|
| Impedance | 75 Ohms |
| Capacitance | 53 pF/m |
| Propagation rate | 84% |
| Attenuation @ 862 MHz | 20 dB/100 m |
| Attenuation @ 2150 MHz | 30.9 dB/100 m |
| Shielding efficiency (30-1000 MHz) | ≥75 dB |
Environmental and Mechanical Data
| Parameter | Value |
|---|---|
| Reaction to fire | Euroclass CPR Eca |
| Minimum bending radius | 136 mm |
| Installation temperature | -20 °C |
| Operating temperature | -20 ÷ +70 °C |
There are no reviews
Data sheet
- Diameter: 6,8mm
- Type: TV/SAT Cables
