Fracarro indoor 5mm coaxial cable with PVC jacket 200mt 289700
FRA 289700
8016978073955

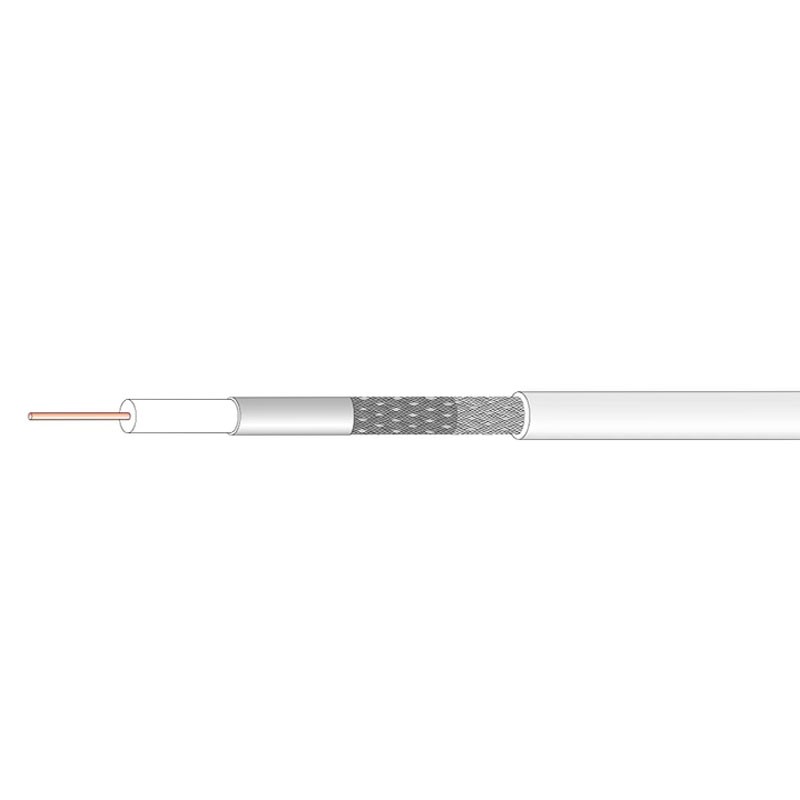

Fracarro indoor 5 mm cable, with copper (Cu) inner conductor; white PVC outer sheath and CPR Eca class.
Specifications:
- Capacity: 52
- Velocity of propagation: 85%.
- Minimum bending radius: 35 mm
- Resistance Ohm/Km: 35
- Outer conductor resistance: Ohm/Km 33
- Inner conductor: Cu material
- Dielectric: Pee material - Diameter 3.5
- Anti-migrating sheet: Pet
- Outer sheath Material: white Pvc, Diameter 5

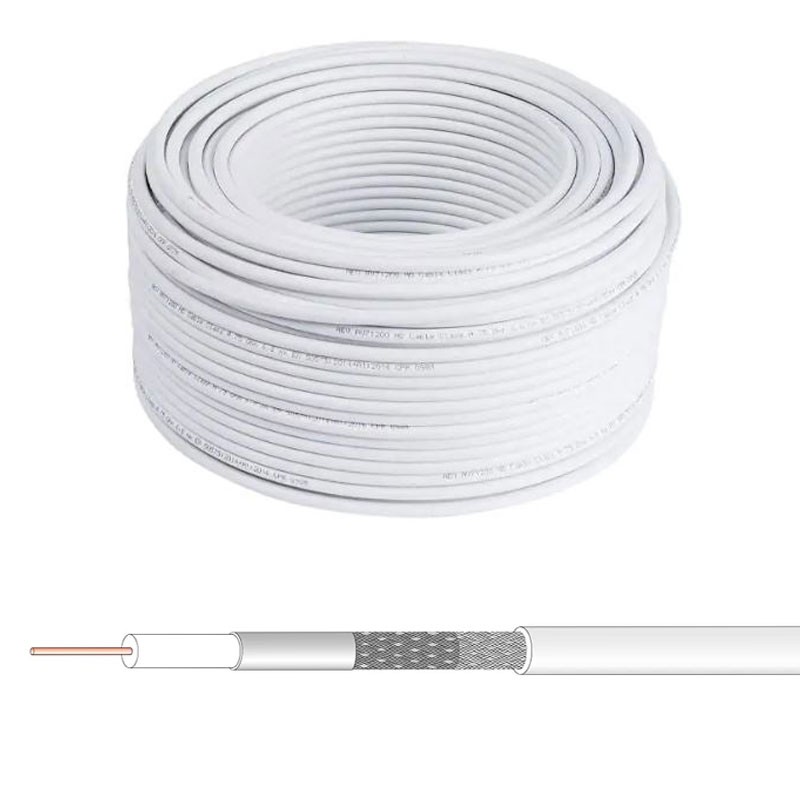

Sold by hank of 200 meters only.
€0.28
Items Available: 42000
: 4600
Screen:
- First screen foil material: Al/Pet
- First screen foil coverage: 100%
- Braid material: CuSn
- Braid coverage: 40%
Attenuation (100m):
- Attenuation 5 dB 2.0
- Attenuation 50 dB 5.9
- Attenuation 200 db 11.3
- Attenuation 470 dB 17.6
- Attenuation 800 dB 23.3
- Attenuation 1000 dB 26.3
- Attenuation 1350 dB 30.8
- Attenuation 1750 dB 35.6
- Attenuation 2150 dB 40.0
- Attenuation 2400 dB 42.2
- Attenuation 2700 dB 45.2
Reflection loss:
- 30-470 MHz dB >28
- 470-862 MHz dB >26
- 862-1750 MHz dB >20
- 1750-2400 MHz dB >20
Shielding efficiency:
- 5-30 MHz dB >65
- 30-1000 MHz dB >80
- 1000-2150 MHz dB >85
There are no reviews
Data sheet
- Diameter: 5mm
- Type: TV/SAT Cables
