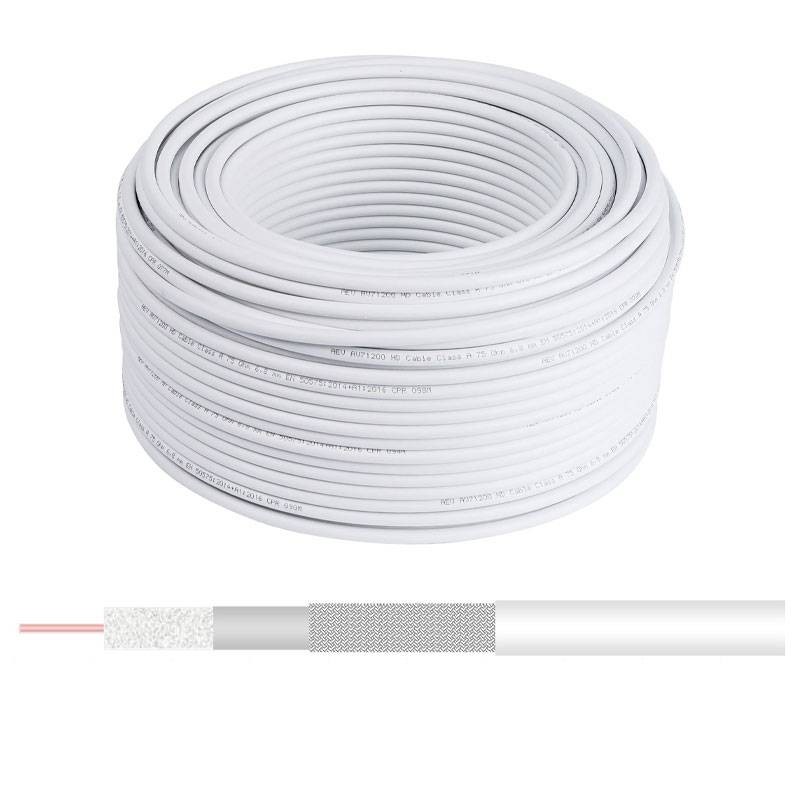

Cavel Double Shielded Tv Sat Coaxial Cable D 6.6 mm 100 meters
ICO DG113-100
8000003910100
Double Shielded Coaxial Cable for Digital Terrestrial Reception for descent Cavel DG113 75 Ohm with the following characteristics:
- Application: DOCSIS 3.1 (Data Over Coax System), Satellite Internet (VSAT) 4K-UHD Indoor Laying
- Diameter: 6.6 mm
- Polyvinyl chloride outer sheath
- Red copper inner conductor
- Colour: White
The selling price is intended per meter.
Minimum saleable quantity: 100-meter heat shrinkable hank.
€0.84
€0.84
The minimum purchase order quantity for the product is 100.
Items Available: 4400
€0.84
The minimum purchase order quantity for the product is 100.
Buy it within and receive it from Monday, 22 December
Features:

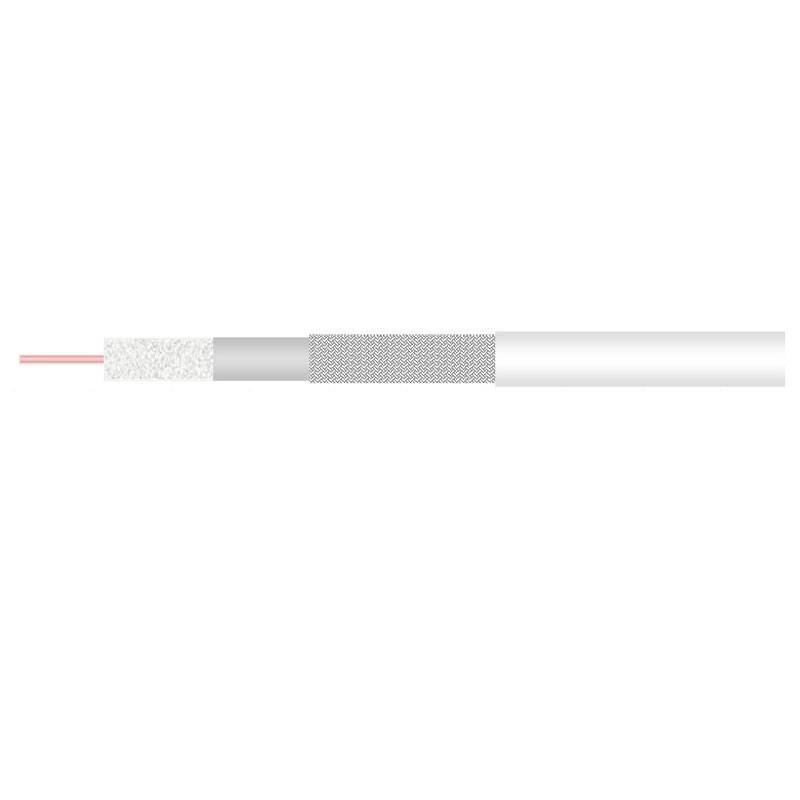

- Red copper inner conductor
- Gas-expanded polyethylene dielectric
- Aluminum/polyester/aluminum tape wrapped
- Tinned copper wire braid
- Diameter above Braid: 5.3 mm
- Polyvinyl chloride outer sheath - white - lead-free
- Minimum bending radius (single/repeat bending) 35/70 mm
- Maximum cable tensile force 150 N
- Minimum temperature during laying -5 °C
- Operating temperature -20 / +70 °C
- Inner conductor resistance 18 Ohm/km
- Outer conductor resistance 13.90 Ohm/km
- Loop resistance 31.90 Ohm/km
- Sheath insulation voltage (spark test) 2.50 kV
- Maximum current (Ieff) 8 A
Data sheet
- Diameter: 6,6mm
- Type: TV/SAT Cables
