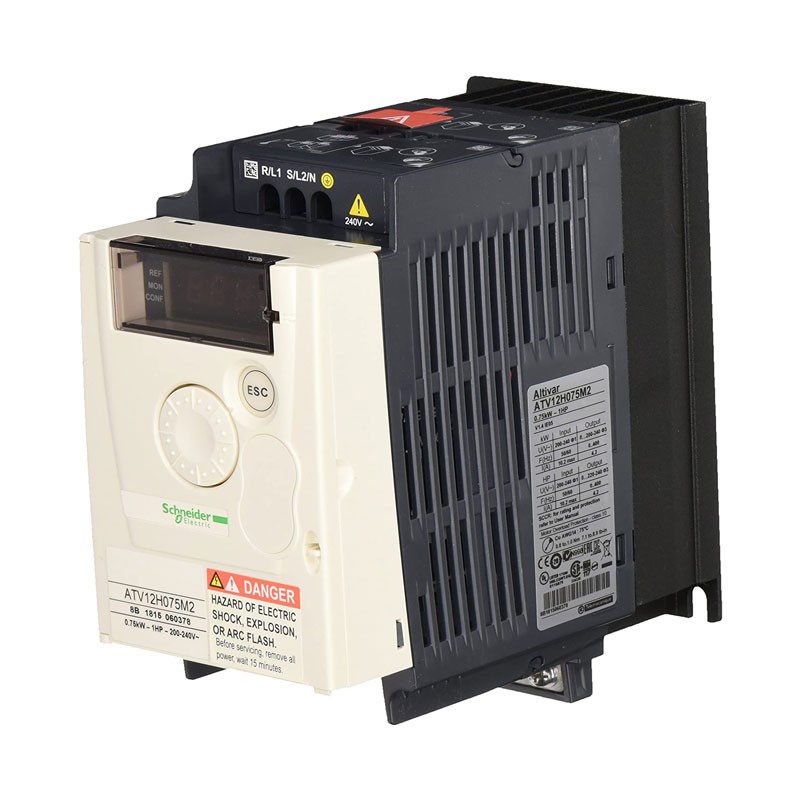

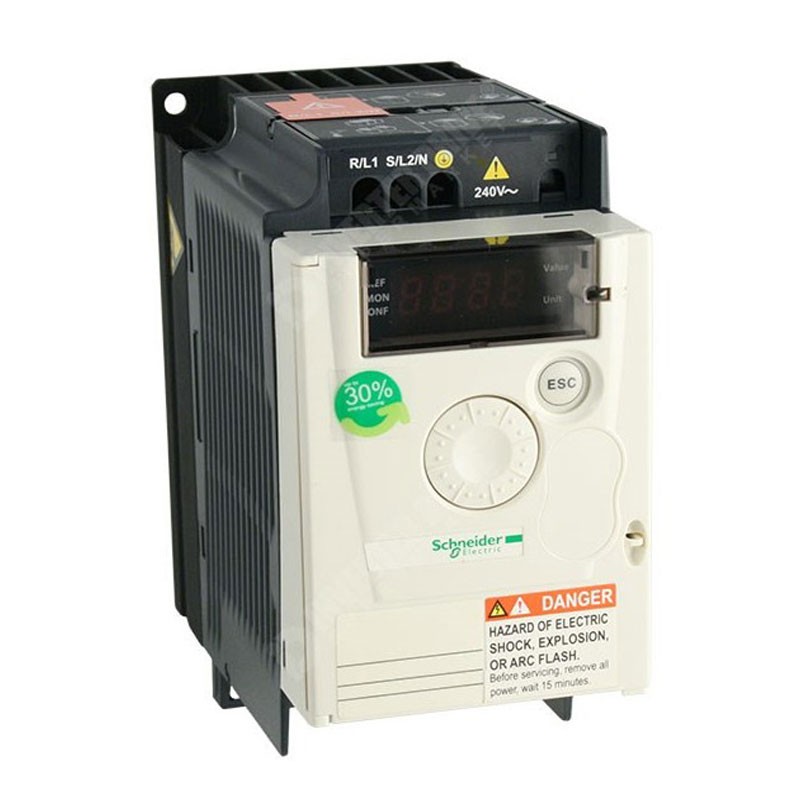

Telemecanique Inverter ATV12 0.75KW 240V 1HP ATV12H075M2
SNR ATV12H075M2
3606480071072
Inverter Variable Speed Drive Telemecanique Schneider ATV12 0.75KW 240V 1HP Altivar 12 range:
- For asynchronous motors
- With heat sink
- Integrated EMC filter
- Without integrated fan
- One phase network
- Protection class IP20
- Frequency 50/60 Hz +/- 5
- Connector 1 RJ45 Modbus on front side, 2 RS 485 Modbus cables
- Output voltage 200...240 V
- 3 phases
€198.50
Items Available: 9
: 2
The ATV12H075M2 VFD from Schneider Electrics is a single-phase asynchronous motor unit with variable speed. This model consists of an EMC filter, has a power rating of 0.75 kW and a supply voltage of 230 V. The dimensions of the variable frequency inverter are: length 143 mm, width 72 mm and overall depth 132 mm.
Altivar ATV12 series
The Altivar ATV12 series consists of variable speed drives for 240 V 0 three-phase machines. Asynchronous motors from 18 to 4 kW. This type of VFD has low voltage, high performance and excellent power. The Altivar 12 series features Plug-and-Play installation, built-in features and alternative baseplate versions making it ideal for simple machine applications.
Benefits:
- Thermal sensing of the unit is provided by a PTC probe integrated into the power module
- The ATV12 is compatible with the ATV11 but there are some differences between the two units
- Variable speed drive for asynchronous motors
- Increased productivity thanks to advanced and intelligent functions
- Easy communication with other machine components thanks to the integrated Modbus universal serial connection
- Provides a high quality unit for system settings from the first activation
- High dynamic performance when stopping or accelerating
- Excellent speed regulation on machine load peaks
- Created and designed for easy installation and wiring
- Super-fast detection and protection against motor current peaks
- Three level menu structure - Reference, monitoring and configuration modes
- Bluetooth option available for downloading or accessing settings with a PC or mobile phone
- Small size but powerful high performance.
Where is the inverter unit used?
- This series can be used for mechanical and electrical installations, please refer to the user manual for more information
- Material handling - small conveyor belts
- Packaging
- Labelling and small bagging machines
- Pumping applications - suction pumps, centrifugal pumps and recirculation pumps
- Fan machines - for air or smoke extraction, plastic film machines, ovens and boilers
- Simple consumer machines such as access barriers and rotating billboards
- Health sector, such as medical beds and treadmills
- They are also used in the food and beverage industry in machines such as grinders, mixers and kneaders.
ATV12 Series VFD Maintenance and Control
- The Altivar 12 does not require any preventive maintenance, although some regular checks are recommended to ensure optimal delivery
- Check the condition and tightness of the connections
- Ensure that the temperature around the unit remains at an acceptable level and that ventilation is good. The average life span of the fans is ten years
- Ensure that any dust present is removed
- Ensure that the fans are always working properly and that the covers are not physically damaged.
Technical specifications:
- Rated power 0.75 W
- Phase 1
- Supply voltage 230 V AC
- Nominal current 8.5 A
- Output Frequency 400Hz
- For use with AC Motors ATV 12 Series
- IP Grade IP20
- Communication type ModBus field bus
- Control Panel Yes
- Filter Included Yes
- Overall depth 132mm
- Overall width 72mm
- Overall length 143mm
There are no reviews
Data sheet
- Type: Inverter
- Voltage: 240VAC
- Degree of protection: IP20
