Telemecanique TM3 8-input analog input module TM3AI8
SNR TM3AI8
3606480648861
Schneider Telemecanique analog input module, with the following characteristics:
- Rated supply voltage [Us]: 24V DC
- Supply voltage limits: 20.4...28.8V
- Type of cables: twisted shielded cable <30 m per circuit input
- Number of analog inputs: 8
- Analog input resolution: 12 bits - 11 bits + sign
- Continuous allowable overload: 13V, analog input type: voltage - 40 mA, analog input type: current
- Input impedance: <= 50 Ohm current, >= 1 MOhm voltage
- Conversion time: 1 ms + 1 ms per channel + 1 controller cycle time
- Sampling time: 1 ms
- Local signaling: 1 LED (green) PWR

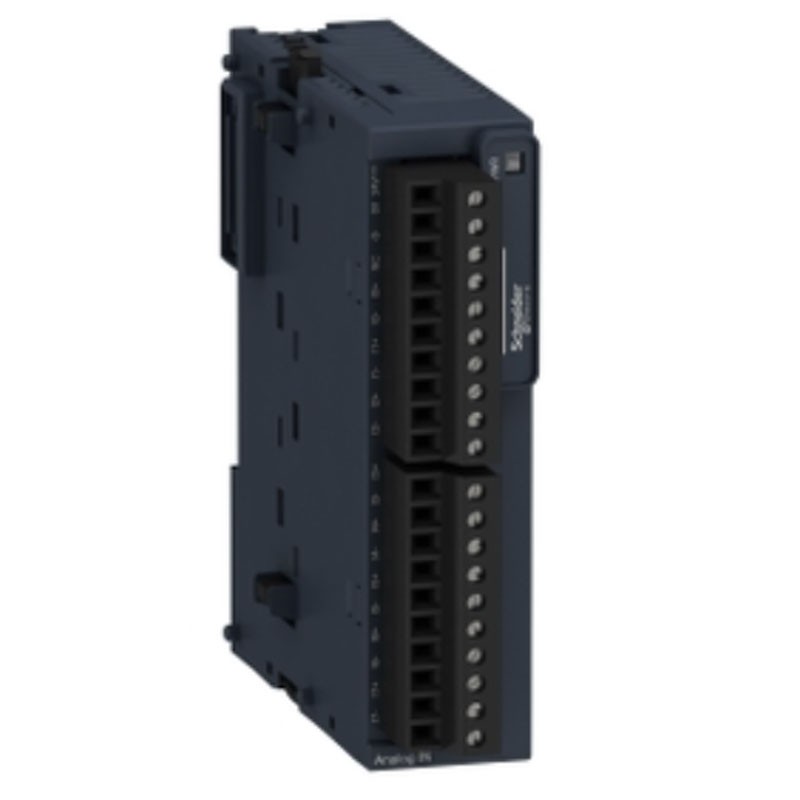

![](https://www.elettronew.com/48746-large_default/analog-input-module-telemecanique-tm3-8-inputs-tm3ai8.jpg)
Telemecanique TM3 8-input analog input module TM3AI8
€321.35
€321.35
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 2
Other technical features:
- Absolute accuracy error: +/-1% of full scale, +/-0.2% of full scale at 25 °C
- Temperature drift: +/-0.01 %FS/°C
- Repeat accuracy: +/- 0.5 %FS
- Non-linearity: +/- 0.2 %FS
- Cross talk: <= 1 LSB
- Magnetic field resistance: 30 A/m in accordance with EN/IEC 61000-4-8
- Fast transient resistance: 1 kV in accordance with EN/IEC 61000-4-4 (I/O)
- Microinterruption immunity: 10 ms
- Ambient operating temperature: -10/+55 °C , horizontal installation: -10/+35 °C vertical installation
- Storage temperature: -25/+70 °C
- Relative humidity: 10/95 %, non-condensing (operating), 10...95 %, non-condensing (storage)
- IP degree of protection: IP20
- Pollution degree: 2
- Operating altitude: 0...2000 m
- Storage altitude: 0...3000 m
- Vibration resistance: 3.5 mm at 5...8.4 Hz on DIN rail, 3 gn at 8.4...150 Hz on DIN rail
- Shock resistance: 15 gn for 11 ms
- Resistance to conducted disturbances, induced by radio frequency fields 10V 0.15...80 MHz complying with EN/IEC 61000-4-6 3V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) complying with Marine specification (LR, ABS, DNV, GL)
- Height 90 mm
- Depth 70 mm
- Width 23.6 mm
- Weight: 0.11 kg
Electromagnetic emission:
- Radiated emissions 40 dBμV/m QP class A ( 10 m) at 30...230 MHz complying with EN/IEC 55011
- Radiated emissions 47 dBμV/m QP class A ( 10 m) at 230...1000 MHz complies with EN/IEC 55011
Overvoltage resistance:
- 1 kV common-mode supply complies with EN/IEC 61000-4-5
- 0.5 kV differential mode power supply complies with EN/IEC 61000-4-5
- 1 kV common mode input complies with EN/IEC 61000-4-5
Mounting bracket:
- Top hat type TH35-15 guide complies with IEC 60715
- Top hat type TH35-7.5 rail complying with IEC 60715
- Plate or panel with mounting kit
Current consumption:
- 40 mA at 5 V DC Via bus connector full load
- 35 mA at 5 V DC Via bus connector no load
- 30 mA at 24 V DC via external power supply without load
- 40 mA at 24 V DC via external power supply full load
Electrical connection:
- 10 1.5 mm² terminal block removable screw with 3.81 mm pitch adjustment for inputs
- 10 1.5 mm² pluggable screw terminal block with 3.81 mm pitch adjustment for inputs
Insulation:
- Between input and power supply at 1500 V "AC"
- Between input and internal logic at 500 V "AC"
Analog input type:
- Current 4...20 mA
- current 0...20 mA
- voltage 0...10 V
- voltage - 10...10 V
LSB value:
- 2.44 mV 0...10 V voltage
- 4.88 mV - 10...10 V voltage
- 4.88 µA 0...20 mA current
- 3.91 µA 4...20 mA current
Data sheet
- Type:
- Analog Input Modules
- Voltage:
- 24V
