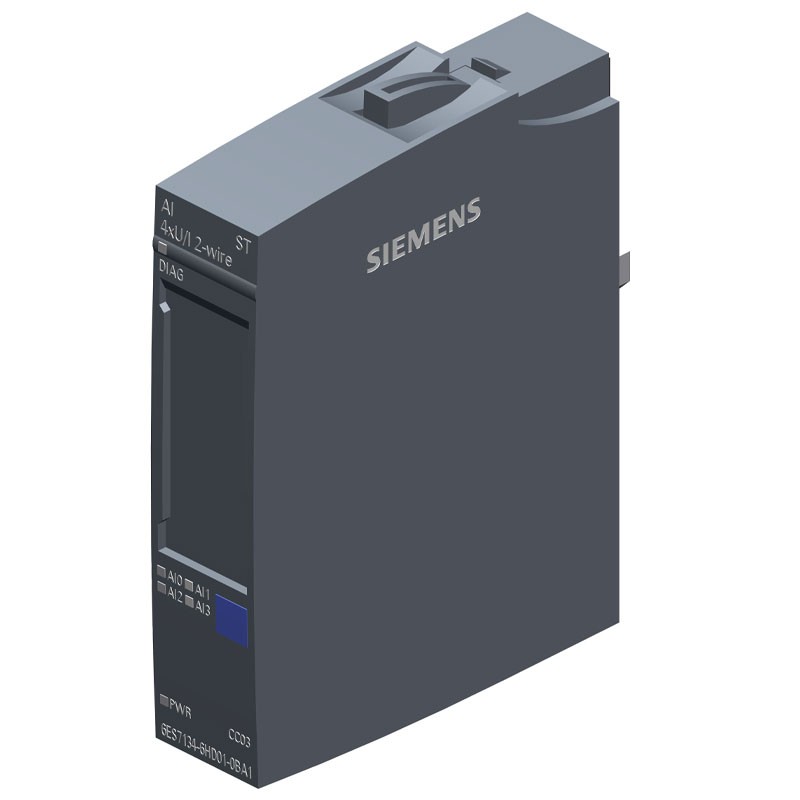

Siemens SIMATIC ET 200SP AI 4XU/I Analog Input Module 6ES71346HD010BA1

Siemens
Siemens
SIE 6ES71346HD010BA1 4047623409236

Siemens SIMATIC ET 200SP AI 4XU/I analog input module with the following features:



  • AI 4XU/I 2-wire standard
  • Hardware version: From FS02
  • Nominal value: 24 V DC
  • Max. current consumption: 37 mA without transducer power supply
  • Power dissipation: 0.85 W without transducer supply voltage
  • Type of mechanical coding element: Type A
  • Number of analog inputs: 4 Differential inputs
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens SIMATIC ET 200SP AI 4XU/I Analog Input Module 6ES71346HD010BA1
€206.78
€206.78

€206.78
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€206.78

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Product type designation AI 4 x U/I 2-wire
  • Hardware version From FS02
  • Possible FW upgrade Yes
  • Rated value (DC) 24 V
  • Allowable range, lower limit (DC) 19.2 V
  • Allowable range, upper limit (DC) 28.8 V
  • Reverse polarity protection Yes
  • Addressing space per module, max. 8 bytes; + 1 byte for QI information
  • Number of analog inputs 4; Differential inputs
  • Allowable input voltage per voltage input (destructive limit), max. 30 V
  • Allowable input current for current input (destructive limit), max. 50 mA
  • Cycle time (all channels), min. Sum of basic conversion times and additional processing times (depending on parameterization of activated channels)
  • Installation altitude max. s.l.m. 5 000 m; Limitations for installation altitudes > 2 000 m, see manual
  • Width 15 mm
  • Height 73 mm
  • Depth 58 mm

There are no reviews

Data sheet

Type:
Analog Input Modules
Voltage:
24V
