Siemens AI Analog Input Module 2xI 2-/4 6ES71346GB000BA1

Siemens
Siemens
SIE 6ES71346GB000BA1 4047623406655

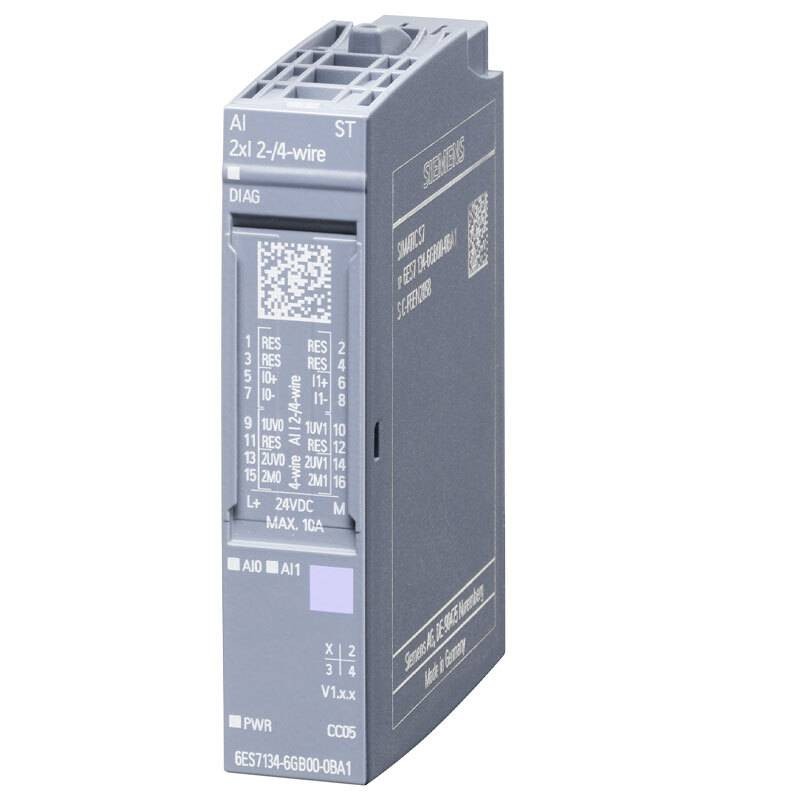

Siemens SIMATIC ET 200SP AI 2xI 2-/4-Wire Standard analog input module with the following characteristics:

  • Nominal value: 24V DC
  • Allowable range, lower limit: 19.2 V DC
  • Allowable range, upper limit: 28.8 V DC
  • Reverse polarity protection
  • Max. current consumption: 45 mA without transducer power supply
  • Number of analog inputs: 2
  • Addressing space per module max: 4 bytes + 1 byte for QI information
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens AI Analog Input Module 2xI 2-/4 6ES71346GB000BA1
€180.25
€180.25

€180.25
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€180.25

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Hardware version from FS04
  • Firmware version: possible FW upgrade Yes
  • Usable Base Units: BU type A0, A1
  • Color code for module-specific color coding plate: CC05
  • Allowable input current for current input (destructive limit), max. 50 mA
  • Cable length: with shielding max. 200 m
  • With diagnostic function
  • Insulation tested with DC 707V (Type Test)
  • Max installation altitude above sea level: 5,000 m; Limitations for installation altitude > 2,000 m
  • Dimensions: width 15 mm - height 73 mm - depth 58 mm

Environmental conditions/Environmental temperature in operation:

  • Horizontal mounting position, min. -30 °C; < 0 °C from FS04
  • Horizontal mounting position, max. 60 °C
  • Vertical mounting position, min. -30 °C; < 0 °C from FS04
  • Vertical mounting position, max. 50 °C
