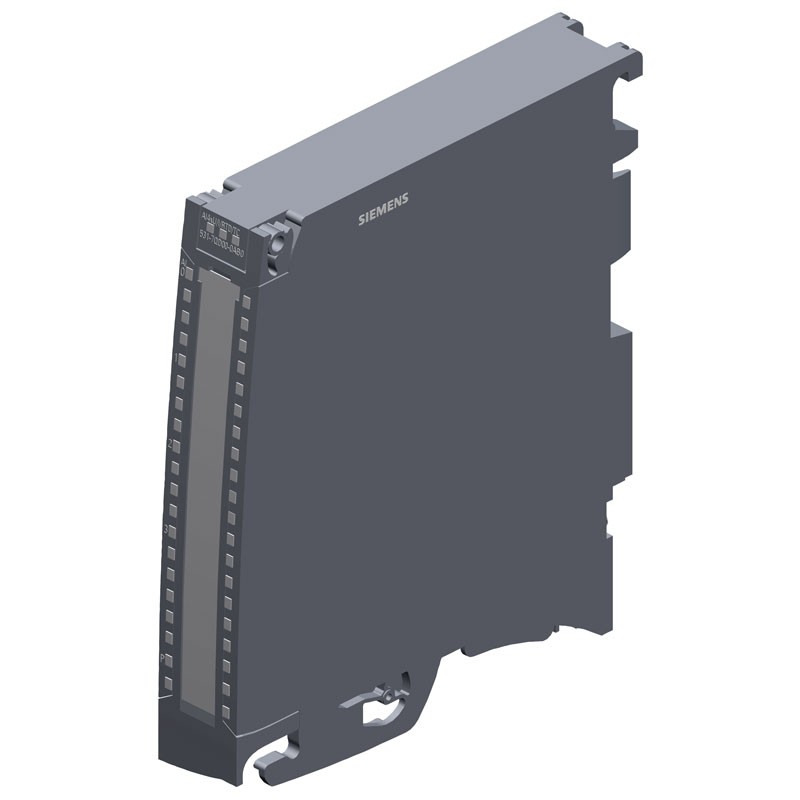

Siemens Simatic S7-1500 AI 4xU/I/RTD/TC ST Analog Input Module 6ES75317QD000AB0
SIE 6ES75317QD000AB0
4047623403425
Siemens Simatic S7-1500 AI 4xU/I/RTD/TC ST Analog Input Module:
- 16 bit resolution
- Accuracy 0.3 %.
- 4 channels in groups of 4
- 2 channels for RTD measurement
- Common mode voltage 10V
- Diagnostics
- Process interrupt
- Delivery including front push-in connector
- Power supply element
- Screen bracket and screen clamp.
€439.10
Items Available: 11
: 9
Features:
- AI 4 x U/I/RTD/TC ST product type designation.
- Hardware version From FS01
- Firmware version V1.0.0
- FW upgrade possible Yes
- Product function I&M data Yes; I&M0 ... I&M3
- Engineering with: STEP 7 TIA Portal design/integrated from version V13 / V13.0.2 - STEP 7 design/integrated from version V5.5 SP3 / - PROFIBUS from version GSD / GSD revision V1.0 / V5.1 - PROFINET from version GSD / GSD revision V2.3 / -
- Oversampling operating mode No - MSI Yes
- CiR - Configuration in RUN: Reparameterization in RUN possible Yes - Calibration in RUN possible Yes
- Supply voltage: Nominal value (DC) 24 V - Permissible range, lower limit (DC) 19.2 V - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
- Current consumption, max. 140 mA; with DC 24 V power supply
- Power withdrawal from the backplane bus 0.7 W
- Power loss, typ. 2,3 W
- Analog inputs: Number of analog inputs 4 - for current measurement 4 - for voltage measurement 4 - for resistance/temperature measurement 2 - for thermocouple measurement 4
- Permissible input voltage for voltage input (destructive limit), max. 28.8 V
- Permissible input current for current input (destructive limit), max. 40 mA
- Technical unit for temperature measurement settable Si; °C / °F / K
- Dimensions: Width 25 mm - Height 147 mm - Depth 129 mm
- Weight approx. 210 g.
There are no reviews
Data sheet
- Type: Analog Input Modules
- Voltage: 24V
