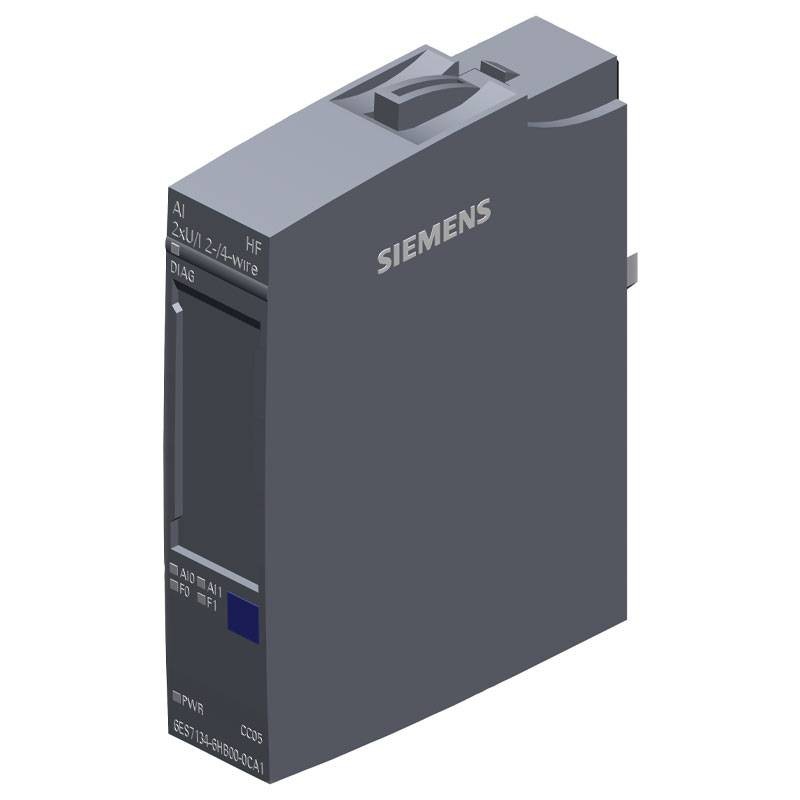

Siemens Simatic Analog Input Module ET 200SP AI 2x U/I, 2 6ES71346HB000CA1

Siemens
Siemens
SIE 6ES71346HB000CA1 4047623403357

Simatic ET 200SP AI 2x U/I Analog Input Module designed to provide accurate acquisition of analog signals in industrial applications. It supports 2- or 4-wire connections, with a measurement accuracy of 16 bits and an error margin of just +/-0.1% with the following features:



  • BU type: A0, A1
  • Rated supply voltage: 24 V DC
  • Rated current consumption: 39 mA (without transducer power supply)
  • Typical power dissipation: 0.95 W (without transducer power supply)
  • Number of analog inputs: 2



It is compatible with Base Unit types A0 and A1 and is color-coded CC05 for easy identification. Equipped with channel diagnostics and reverse polarity protection, it is ideal for applications requiring precision and reliability.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Simatic Analog Input Module ET 200SP AI 2x U/I, 2 6ES71346HB000CA1
€291.26
€291.26

€291.26
Tax included
Calculate shipping cost
Items Available: 95
Further availability of the manufacturer
€291.26

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Siemens Simatic ET 200SP AI 2x U/I, 2 Analog Input Module



This Simatic ET 200SP module is designed to acquire analog signals with extreme precision, offering 16-bit resolution and a maximum measurement error of +/-0.1 percent. The module supports two inputs for voltage and current and is compatible with 24V-powered transducers, making it ideal for advanced industrial applications.



Compact design and rugged protection



With compact dimensions, the module integrates easily into electrical panels without taking up too much space. The device includes reverse polarity protection and withstands maximum input voltages of 30 V for voltage and 50 mA for current, ensuring safe and durable operation.



Detailed technical specifications



  • Rated supply voltage: 24 V DC (range 19.2 to 28.8 V)
  • Protection: From reverse polarity
  • Rated current consumption: 39 mA (without transducer power supply)
  • 24 V transducer power supply (2 wires): Max. 20 mA (50 mA for <10 s)
  • 24 V transducer power supply (4-wire): Max. 100 mA (150 mA for <10 s)
  • Typical power dissipation: 0.95 W (without transducer power supply)
  • Number of analog inputs: 2
  • Destructive voltage input limit: Max. 30 V
  • Destructive current input limit: Max. 50 mA
  • Cable length with shielding: Max. 1,000 m (200 m for voltage measurement)
  • Insulation tested: DC 707 V (Type Test)
  • Dimensions: Width 15 mm, Height 73 mm, Depth 58 mm
