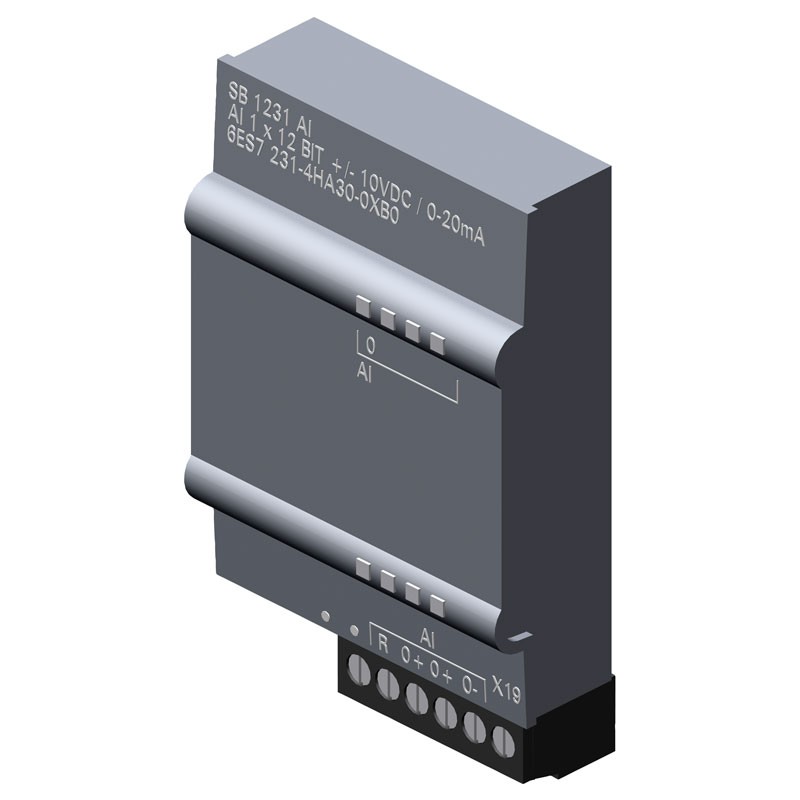

Siemens Simatic S7-1200 Analog Input Unit 6ES72314HA300XB0

Siemens
Siemens
SIE 6ES72314HA300XB0 6940408100909

Analog input unit Siemens SIMATIC S7-1200 SB 1231, 1 AI, +/- DC 10 V (12 bit resolution) or 0-20mA.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Simatic S7-1200 Analog Input Unit 6ES72314HA300XB0
€83.10
€83.10

€83.10
Tax included
Calculate shipping cost
Items Available: 21
Further availability of the manufacturer
€83.10

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Power supply Nominal value (DC) 24V
  • Input current from backplane bus DC 5 V, typ 55mA
  • Power dissipation, typ 0.4W
  • Number of analog inputs 1; Current or voltage differential inputs
  • Permissible input voltage for current input (destructive limit), max. ±35 V
  • Permissible input voltage for voltage input (destructive limit), max. 35V
  • Allowable input current for voltage input (destructive limit), max. 40mA
  • Allowable input current for current input (destructive limit), max. 40mA
  • Cycle time (all channels), max. 156.25µs; 400Hz suppression.

Input ranges:

  • Voltage Si; ±10 V, ±5 V, ±2.5 VC Current Si; 0 ... 20 mA
  • Thermocouple No
  • Resistance thermometer No
  • Resistance No.

Integration and conversion time/resolution per channel:

  • Resolution with override range (bits incl. sign), max. 11 bits; + sign
  • Parameterizable integration time Yes
  • Disturbance voltage suppression per disturbance frequency f1 in Hz 40 dB, DC up to 60 Hz.

Dimensions

  • Width 38 mm
  • Height 62 mm
  • Depth 21 mm
  • Plastic material
  • Weight 0.35 gr
  • Housing material (on the front side)

There are no reviews

Data sheet

Type:
Analog Input Modules
Voltage:
24V
