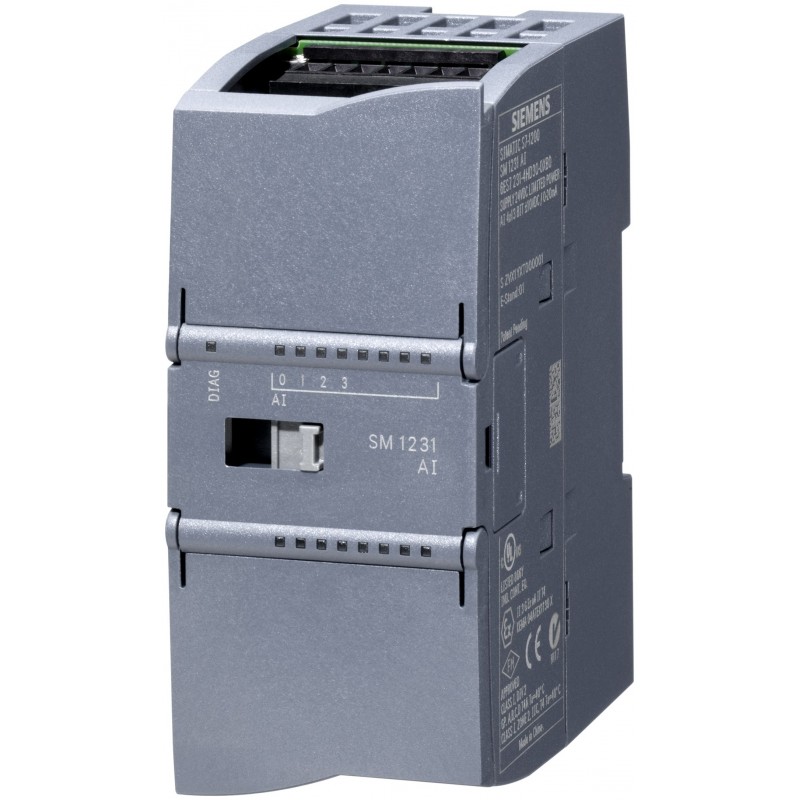

Siemens SIMATIC S7-1200 Analog Input Module 6ES72315QD320XB0
SIE 6ES72315QD320XB0
6940408101890
Siemens SIMATIC S7-1200 analog input module, with the following characteristics:
- Nominal value (DC) 24V
- Input current Current consumption, typ. 40 mA - from backplane bus DC 5 V, typ. 80 mA
- Power dissipation Power dissipation, typ. 1,5 W
- Number of analog inputs 4; Thermocouples
- Input voltage allowed for voltage input (destructive limit), max. ±35V
- Technical unit for temperature measurement settable Degrees Celsius / degrees Fahrenheit
- Degree of protection IP20
- Ambient temperature for operation: -20/+60°C
- Ambient temperature for storage/transportation: -40/+70°C
- Relative humidity: operation at 25°C without condensation, max. 95 %
- Housing material (on the front side): Plastic
- Dimensions: Width 45 mm - Height 100 mm - Depth 75 mm
- Weight: 180 grams approx.
![](https://www.elettronew.com/68030-large_default/analog-input-module-siemens-simatic-s7-1200-6es72315qd320xb0.jpg)
Siemens SIMATIC S7-1200 Analog Input Module 6ES72315QD320XB0
€414.57
€414.57
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 28
Data sheet
- Type:
- Analog Input Modules
- Voltage:
- 24V
- Degree of protection:
- IP20
