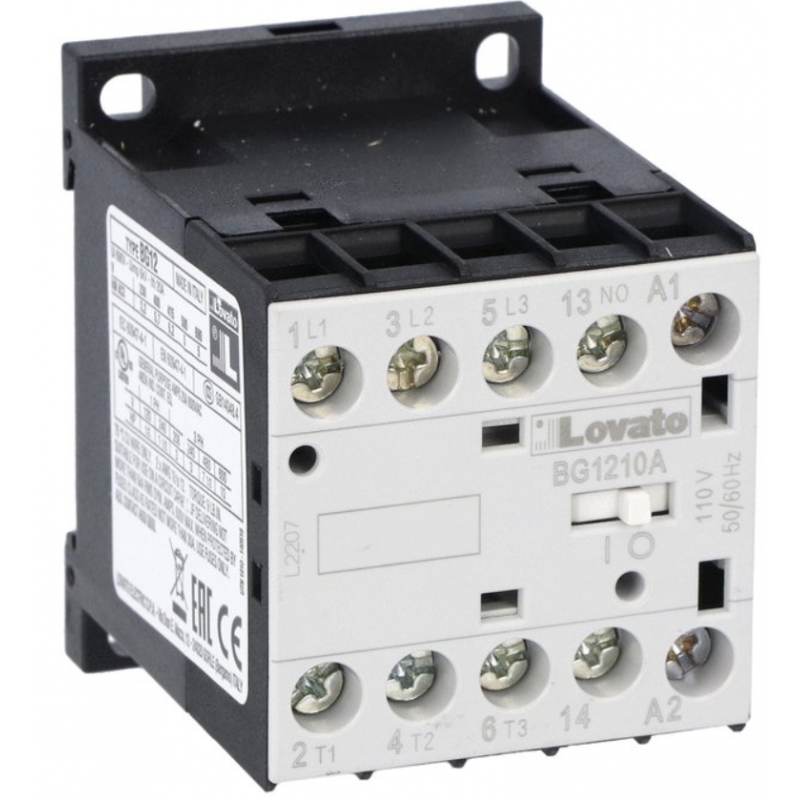

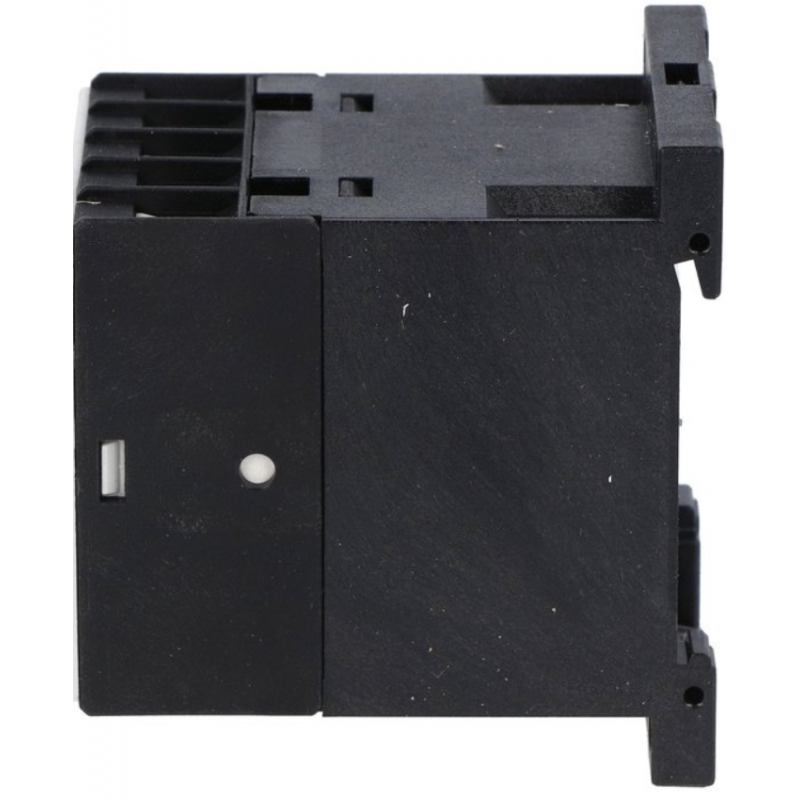

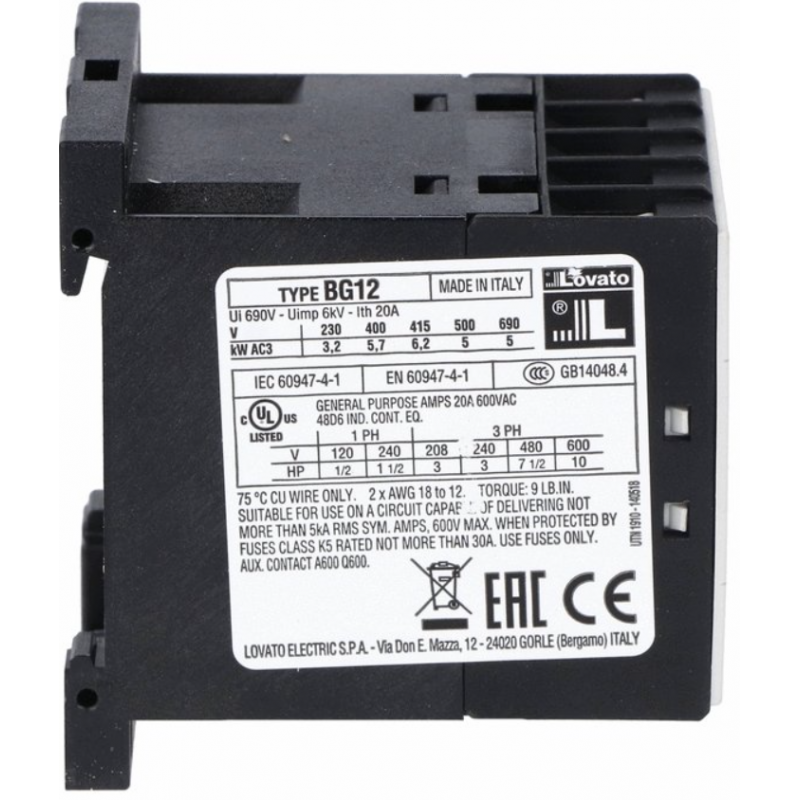

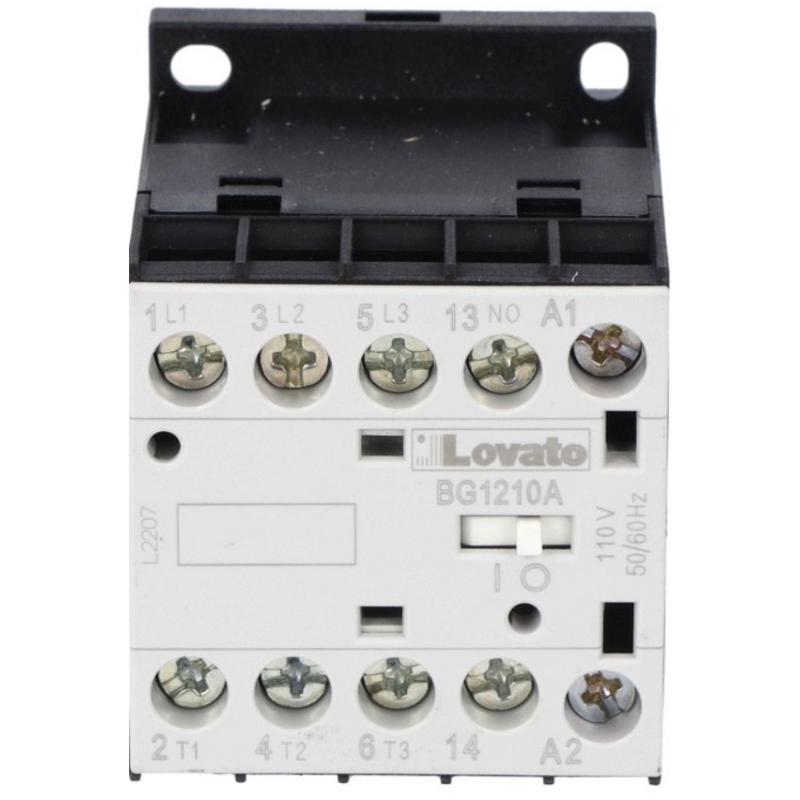

Lovato three-pole contactor 12A 230V AC 1NA IP20 11BG1210A230
LOV 11BG1210A230
8013975080153
Lovato three-pole contactor, compact, reliable and ready to use in demanding industrial environments, with the following features:
-
AC3 rated current: 12A (power up to 5.7 kW at 400V)
-
AC coil: 50/60Hz with rated voltage 230VAC
-
Built-in auxiliary contact: 1NA
-
Versatile mounting: 35mm DIN rail or screw mounting
-
High isolation: Ui 690V, Uimp 6kV
-
Long operating life: 20 million mechanical cycles
€32.98
Items Available: 8
: 4
Three-pole contactor optimal performance for motor control
The Lovato contactor is designed for the efficient and safe operation of electric motors in AC3 applications, providing an operating current of up to 12A and a power rating of 5.7 kW at 400V. Ideal for industrial plants, switchgear and automation, it offers stable performance even under high load conditions.
230V AC coil safety and reliability
The integrated coil operates at a nominal voltage of 230V at 50/60Hz, with a low power consumption (VA 30 in inrush, VA 4 in service) that increases its energy efficiency. Operating limits (75-115% for closure and 20-55% for release) ensure reliability even with voltage fluctuations.
Versatility and simplified installation

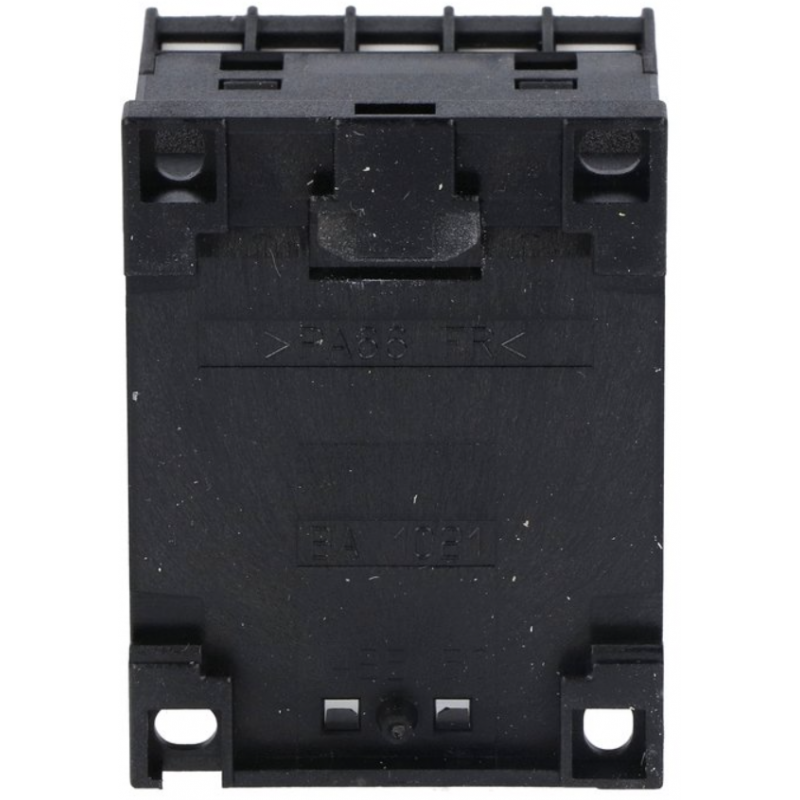

With screw or 35mm DIN rail mounting, the contactor easily fits into different types of electrical panels. The compact body weighing only 200g allows installation in small spaces, while IP20 protection (when wired) ensures its safe use in industrial environments.
Durability and high duty cycles
Designed for durability, the contactor guarantees:
-
20 million mechanical cycles
-
500,000 electrical cycles
-
Maneuvering frequency of up to 3600 cycles/hour
Ideal for continuous automation and installations with high durability requirements.
Technical Specifications Lovato Contactor
Electrical Data
| Parameter | Value |
|---|---|
| Operating current AC3 | 12A (5.7 kW at 400V) |
| Thermal current AC1 | 20A |
| Coil voltage | 230V AC 50/60Hz |
| Auxiliary contact type | 1NA |
| Isolation voltage (Ui) | 690V |
| Impulse withstand voltage (Uimp) | 6kV |
| Closing power | 120A |
| Opening power at 440V | 96A |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Terminal protection | IP20 |
| Terminal tightening torque | 0.8 to 1 Nm |
| Flexible conductor section | 0.8 - 2.5 sq. mm |
| Mechanical life span | 20,000,000 cycles |
| Electrical service life | 500,000 cycles |
| Operating temperature | -50/+70 degrees |
| Maximum altitude | 3000 m |
| Mounting | Screw-on / 35mm DIN rail |
| Weight | 200 g |
| Performance level B10d | 500,000 rated cycles |
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230V
- Poles: 3P
- Amps: 12A
