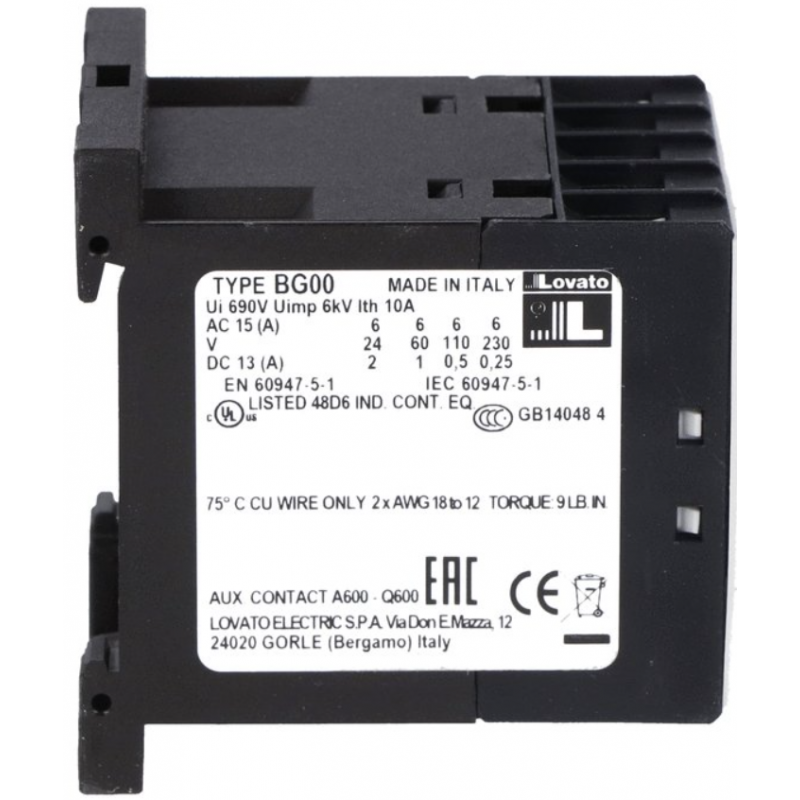

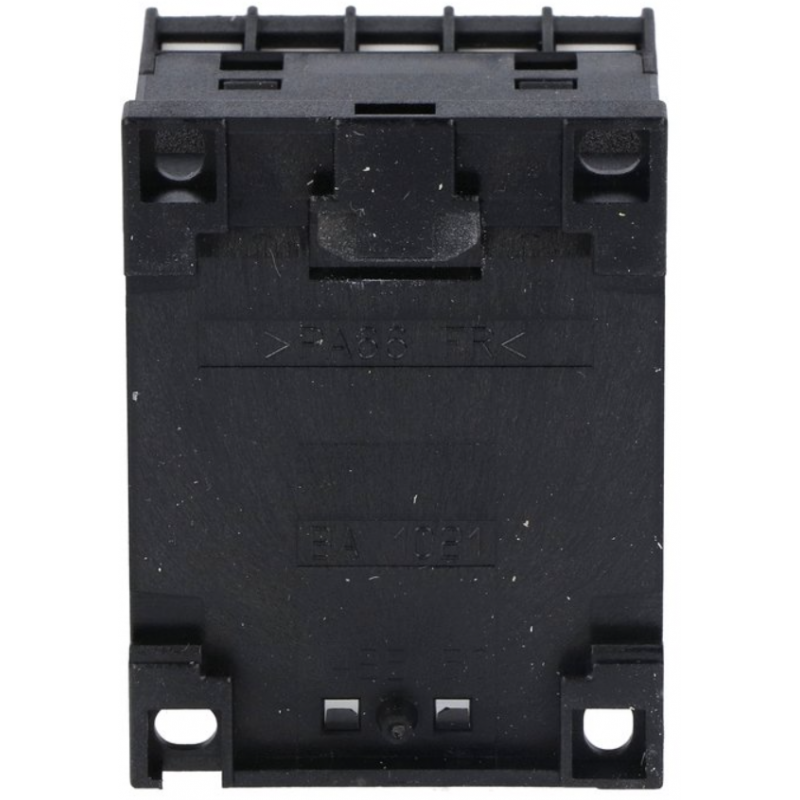

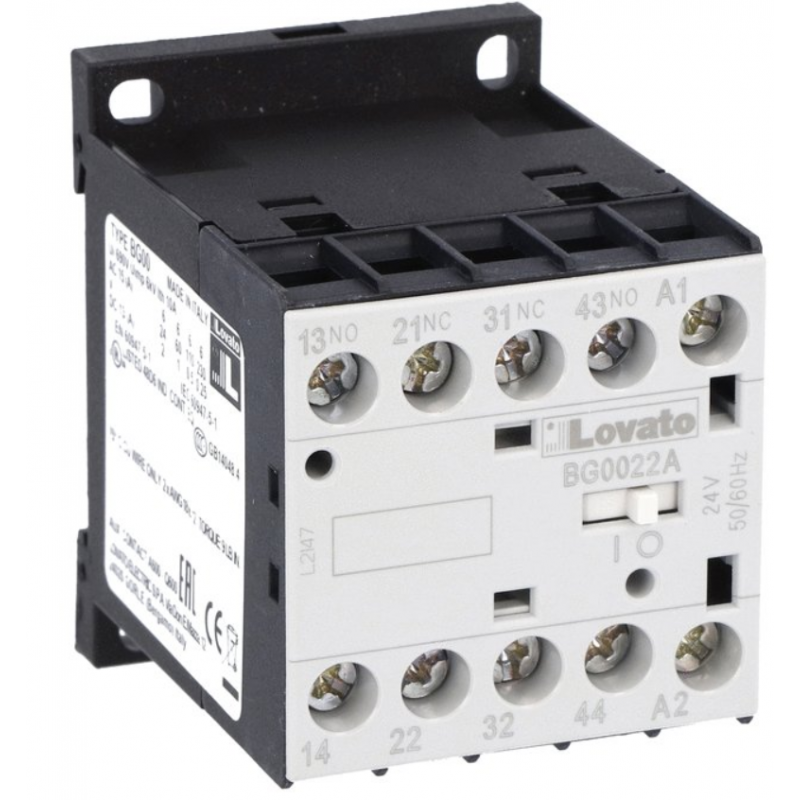

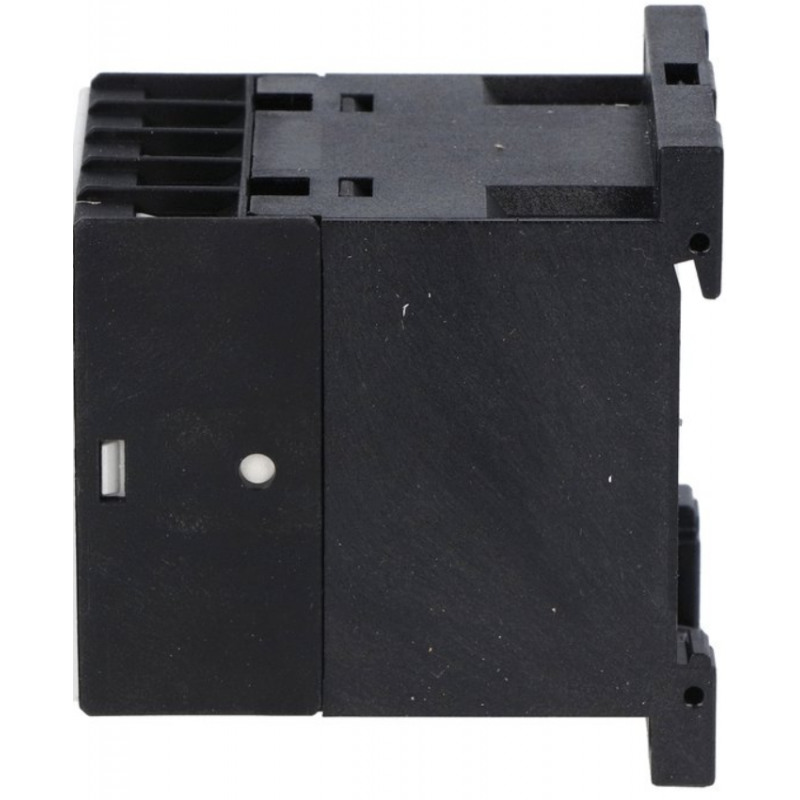

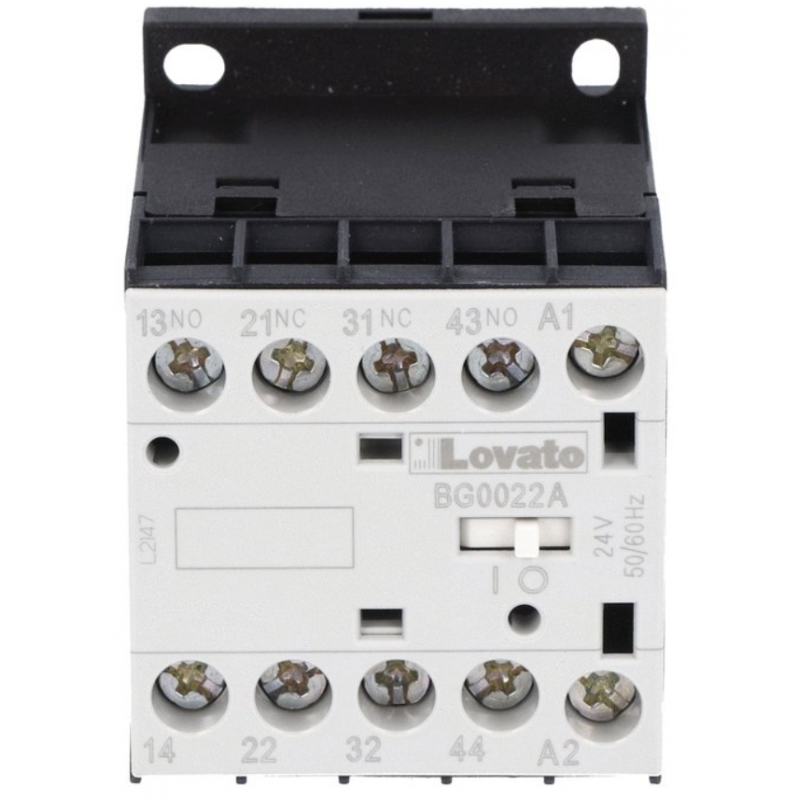

Lovato mini contactor coil ac-24V 2NA AND 2NC 11BG0022A024
LOV 11BG0022A024
8013975080979
Lovato auxiliary mini contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Number of poles: 4
- Operating frequency: Min Hz 25 - Max Hz 400
- IEC Conventional free air thermal current: Ith UN 10
- Protective fuse: gG (IEC) UN 16
- Maximum number of wires that can be connected simultaneously: 2
- Conductor cross section AWG/Kcmil max 12
- Power terminal protection according to IEC/EN 60529: IP20
- Operating AC coil: rated AC voltage at 50/60 Hz: 24V
€29.19
Items Available: 1
Other technical features:
- Operating position: normal vertical plane - Allowable ±30°.
- Screw fixing / 35mm DIN rail
- Weight: 200 grams
- Thermal Current Ith UN 10
- IEC/EN 60947-5-1 designation: A600 - Q600
- Dissipation at maintenance =20°C 50 Hz: 0.9W
- Maximum cycle frequency: mechanical operation cycles/h 3600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24V
- Poles: 4P
