Lovato DMG100 Multimeter Kit + 3 100/5A Transformers DMGKIT100100

Lovato
Lovato
LOV DMGKIT100100 8013975215197

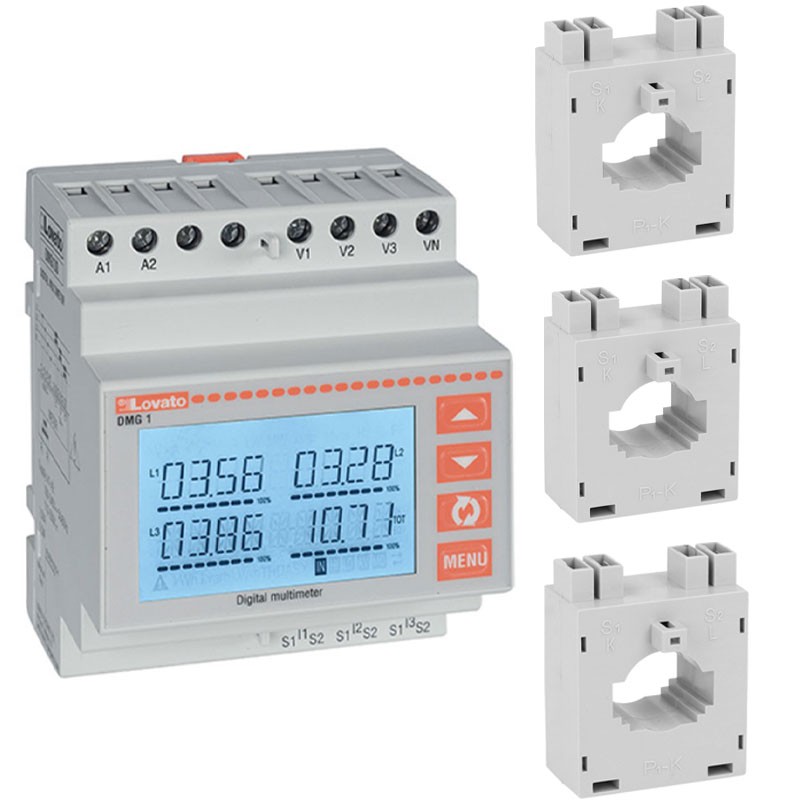

Lovato kit consisting of:



  • 1 backlit icon LCD multimeter, not expandable code DMG100
  • 3 100/5A toroidal current transformers for Ø22mm cables code DM2T0100
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato DMG100 Multimeter Kit + 3 100/5A Transformers DMGKIT100100
€161.42
€161.42

€161.42
Tax included
Calculate shipping cost
Items Available: 28
Further availability of the manufacturer
€161.42

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

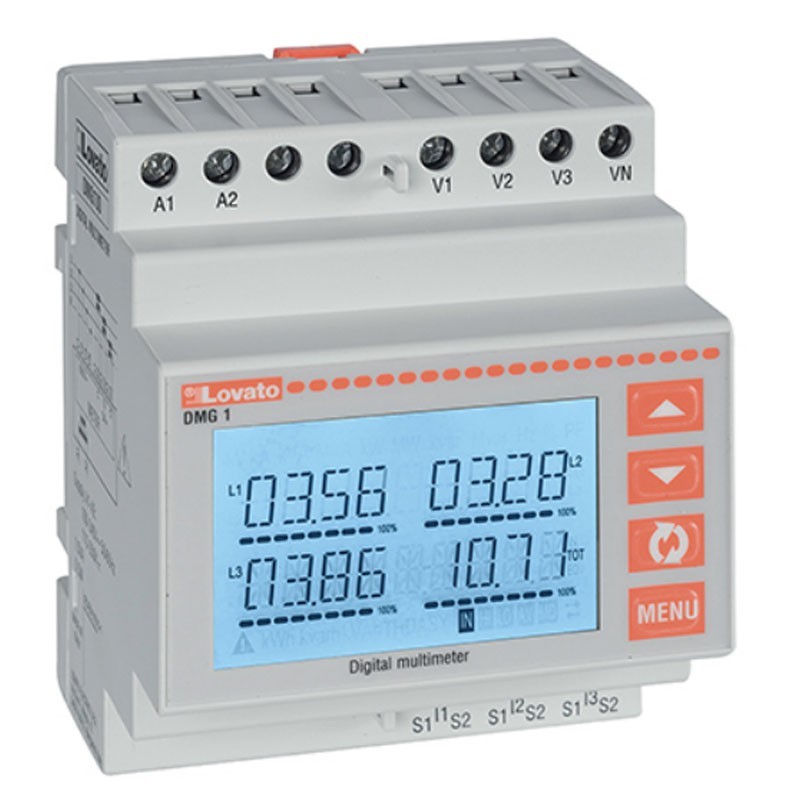

1 multimeter code DMG100:

  • Multilingual: Italian, English, French, German, Spanish and Portuguese
  • Type DMG100
  • Type Three phase + neutral
  • Number of DIN modules 4
  • Rated auxiliary AC voltage: VAC 100...240
  • Rated auxiliary voltage DC: VDC 110...250
  • IEC/EN rated insulation voltage: 690V
  • Rated impulse withstand voltage (Uimp): kV 9.5
  • Withstand voltage at operating frequency: kV 5.2
  • Operating frequency: min 45 Hz - max 66 Hz
  • Rated current: 5 amps
  • Measuring range: 0.01...6
  • Measurement method: TRMS
  • Degree of protection: IP30
  • Overload capacity: +20% Ie from external CT with secondary 5A
  • Short-term thermal limit: 50A for 1s
  • Power consumption: Max VA 1.5
  • Maximum power dissipation: 0.5W
  • Housing type: polyamide
  • Connections Type: Fixed
  • Tightening torque (Max): Nm 0.8 - lbin 7
  • Mounting: DIN rail
  • Weight: 294 grams
  • Operating temperature min -25 °C max 60 °C
  • Storage temperature min -30 °C max 80 °C
  • Relative humidity: <90%
  • Maximum pollution degree: 2

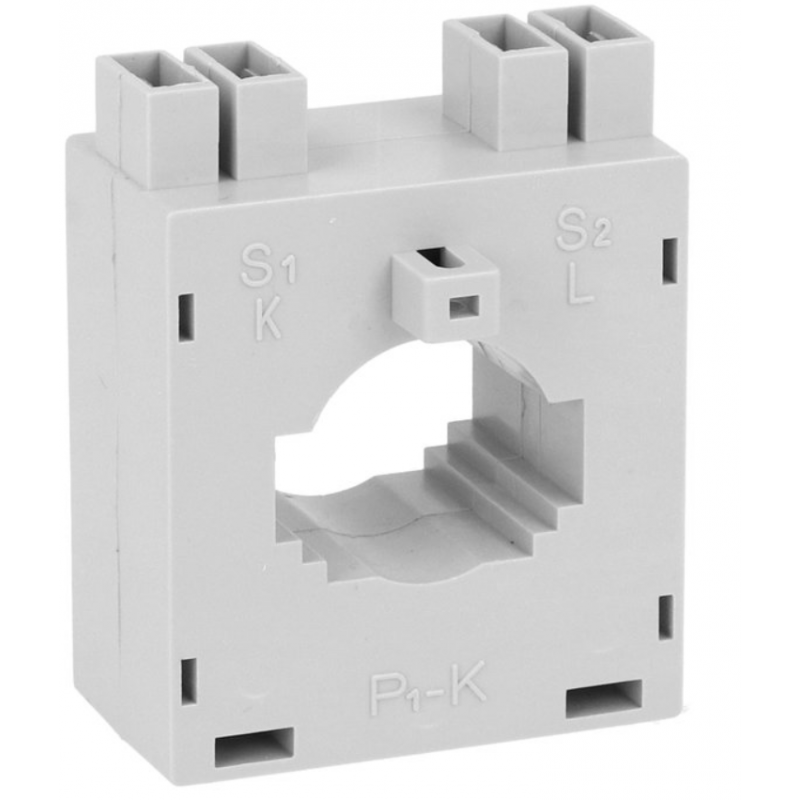

3 100/5A toroidal current transformers for Ø22mm cable code DM2T0100:

  • 23 mm through cable
  • 23 mm diameter
  • Frequency of use min 50 Hz - max 60 Hz
  • Primary current Ipn 100A
  • Secondary current 5A
  • Rated insulation voltage IEC/EN 720V
  • Faston type connections
  • DIN rail or screw mounting
  • Degree of protection IP30
  • Primary current Ipn 100A
  • Secondary current 5A
  • Permanent overcurrent Ipn 120%
  • Performance cl.1 1.5 VA
  • Rated insulation voltage IEC/EN 720V
  • Rated short-time thermal current Ith for s 40...60
  • Rated dynamic current Idyn Ith for s 2.5
  • Insulation in air class E
  • Faston connections
  • DIN rail or screw mounting
  • Product weight 130gr
  • Operating temperature min -25°C - max +50°C
  • Storage temperature min -40°C - max +80°C
  • Relative humidity 90%
