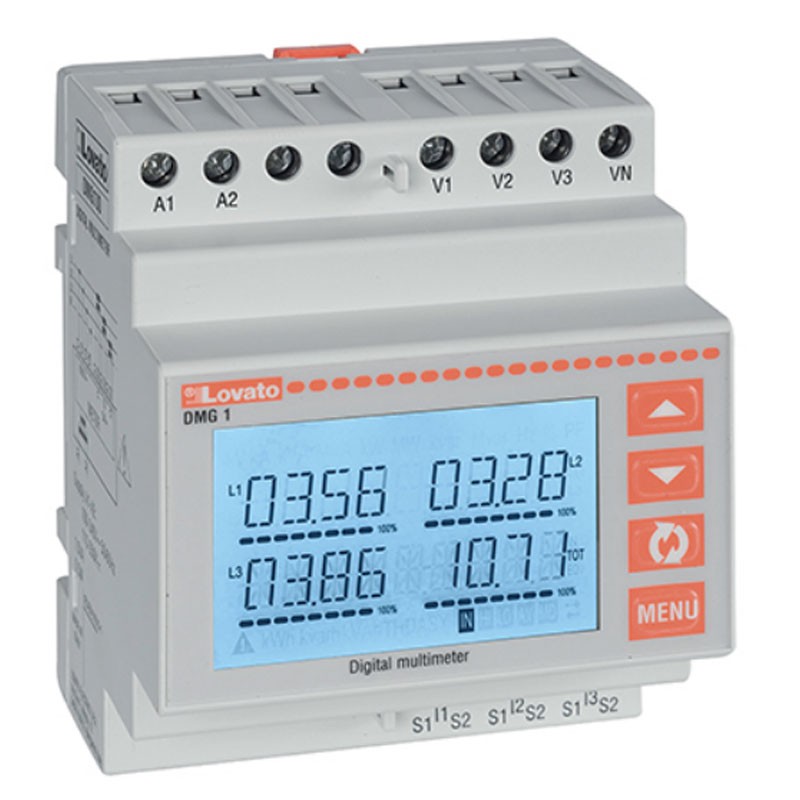

Lovato modular LCD multimeter 100-240VAC 115-250VDC DMG100
LOV DMG100
8013975214862
Lovato non-expandable backlit icon LCD modular multimeter with the following features:
- Multilingual: Italian, English, French, German, Spanish and Portuguese
- Type DMG100
- Type Three-phase + neutral
- Number of DIN modules 4
- Rated auxiliary AC voltage: VAC 100...240
- Rated auxiliary voltage DC: VDC 110...250
- IEC/EN rated insulation voltage: 690V
- Rated impulse withstand voltage (Uimp): kV 9.5
- Withstand voltage at operating frequency: kV 5.2
- Operating frequency: min 45 Hz - max 66 Hz
- Rated current: 5 amps
- Measuring range: 0.01...6
- Measurement method: TRMS
€140.21
Items Available: 12
: 2
Other technical features:
- Overloadability: +20% Ie from external CT with secondary 5A
- Short-term thermal limit: 50A for 1s
- Power consumption: Max VA 1.5
- Maximum power dissipation: 0.5W
- Housing type: polyamide
- Connections Type: Fixed
- Tightening torque (Max): Nm 0.8 - lbin 7
- Mounting: DIN rail
- Weight: 294 grams
- Operating temperature min -25 °C max 60 °C
- Storage temperature min -30 °C max 80 °C
- Relative humidity: <90%
- Maximum pollution degree: 2
There are no reviews
Data sheet
- Type: Multimeters
- Voltage: 110/240V
- Degree of protection: IP30
