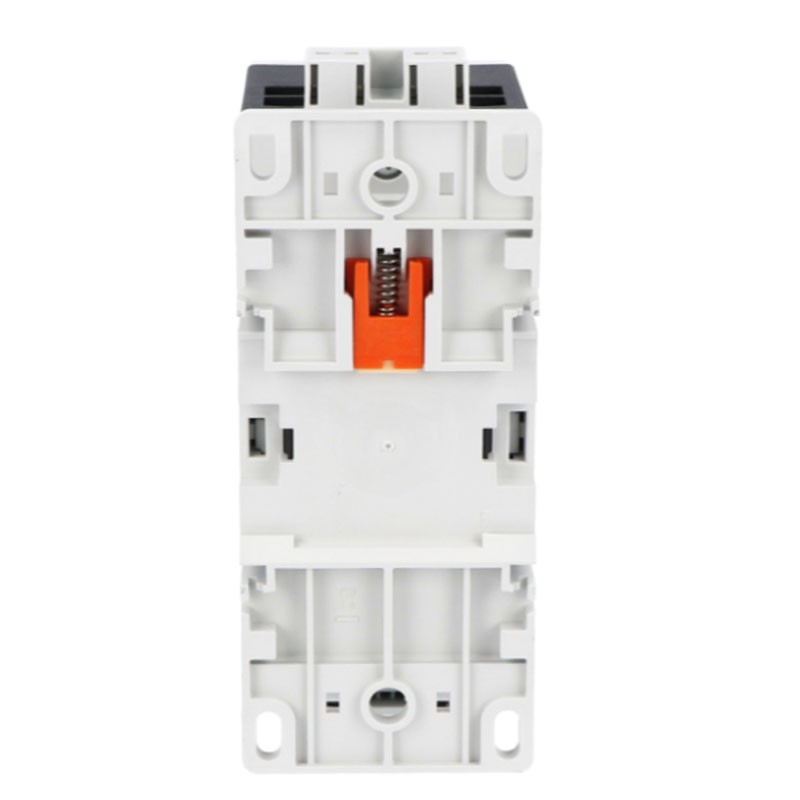

Lovato 3-Pole Contactor 3 Poles 65A AC3 230V BF6500A230


LOV BF6500A230 8013975223284

Lovato three-pole power contactor, with the following characteristics:

  • Number of poles: 3
  • IEC/EN rated insulation voltage Ui: 1000V
  • Rated impulse withstand voltage Uimp: kV 8
  • Operating frequency: min Hz 25 - max Hz 400
  • IEC Conventional free air thermal current Ith: UN 100
  • Short-time allowable current for 10 s (IEC/EN60947-1): UN 640
  • Protective fuse: gG (IEC) UN 125 - aM (IEC) UN 80
  • Production capacity (rms value): UN 650
  • Resistance per pole (average value); m? 0.8
  • Maximum number of wires that can be connected simultaneously: 2
  • Protection of power terminals according to IEC/EN 60529: IP20 frontal
  • Operating position: normal vertical plane - Allowable ±30°
Request info about this product

Lovato 3-Pole Contactor 3 Poles 65A AC3 230V BF6500A230

€193.73
€193.73

Lovato 3-Pole Contactor 3 Poles 65A AC3 230V BF6500A230

€193.73
Tax included
klarna Pay in installments with Klarna
qty

Lovato 3-Pole Contactor 3 Poles 65A AC3 230V BF6500A230

€193.73

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Fixing: screw-on / 35mm DIN rail
  • Weight: 1.020kg
  • Mechanical life: cycles 150000
  • Electrical life: cycles 1400000
  • Safety related data
  • Mirror contact according to IEC/EN 609474-4-1: yes
  • EMC compatibility: yes
  • Operating AC coil: rated AC voltage at 50/60Hz: 230V
  • Dissipation at holding ≤20°C 50Hz: 5W
  • Maximum cycle frequency: mechanical operation cycles/h 3600
  • Operating temperature: -50/+70°C
  • Storage temperature: -60+80°C
  • Maximum altitude: m 3000
  • Pollution degree 3

Data sheet

Type:
Contactors
