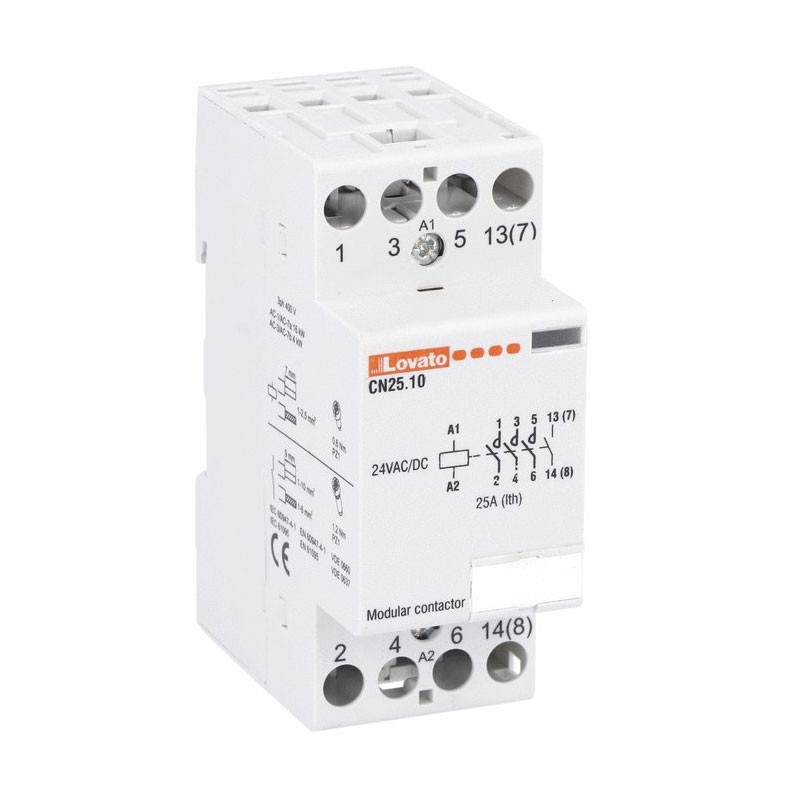

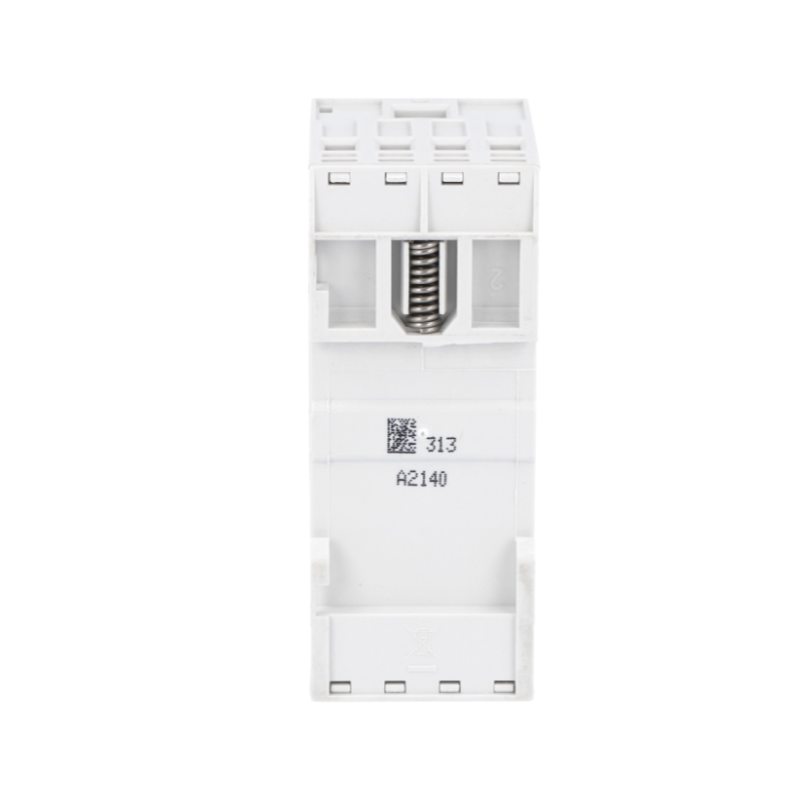

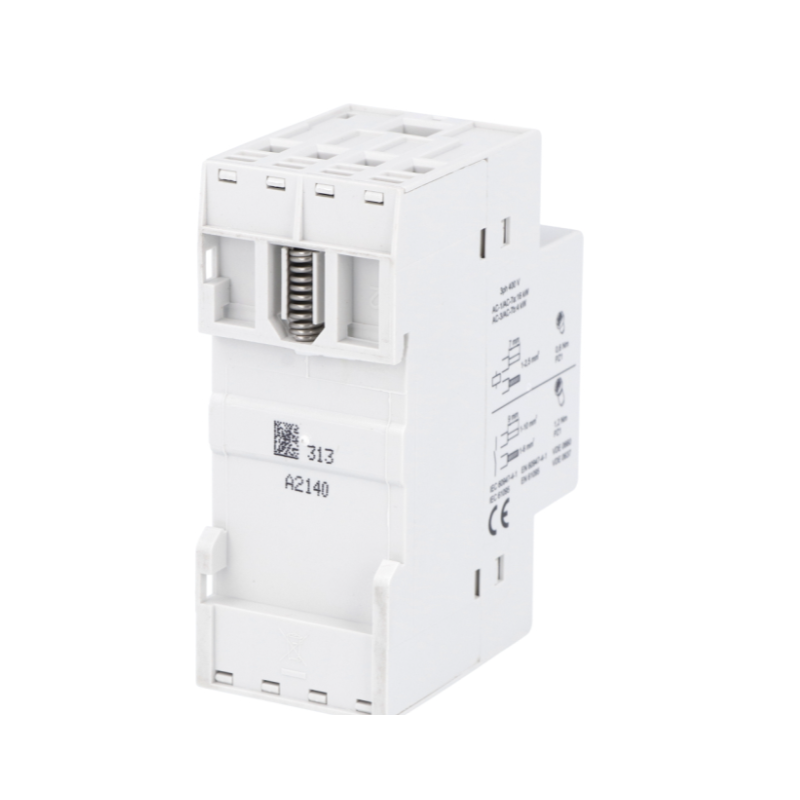

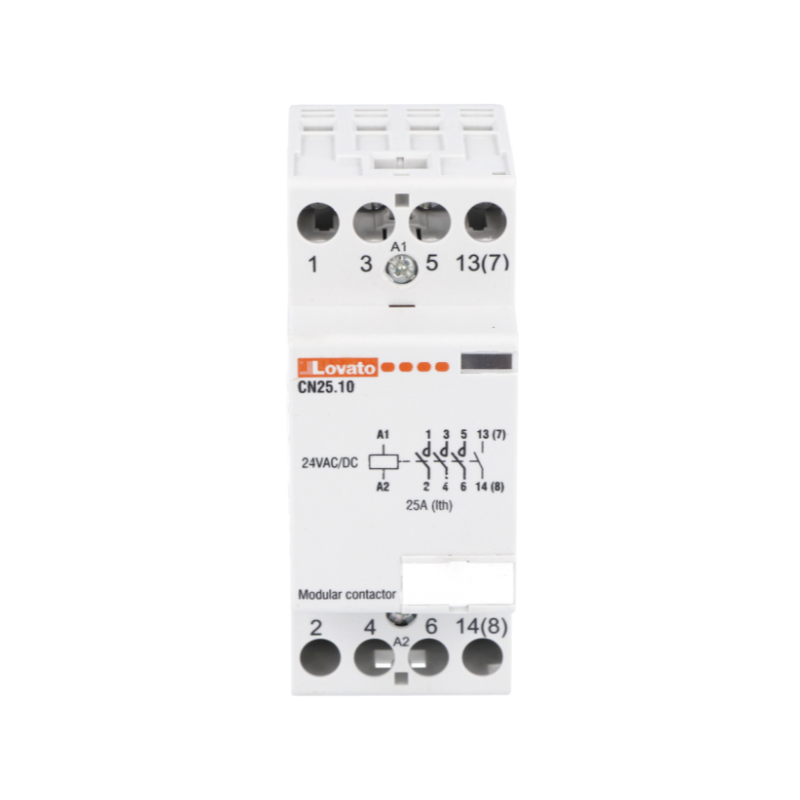

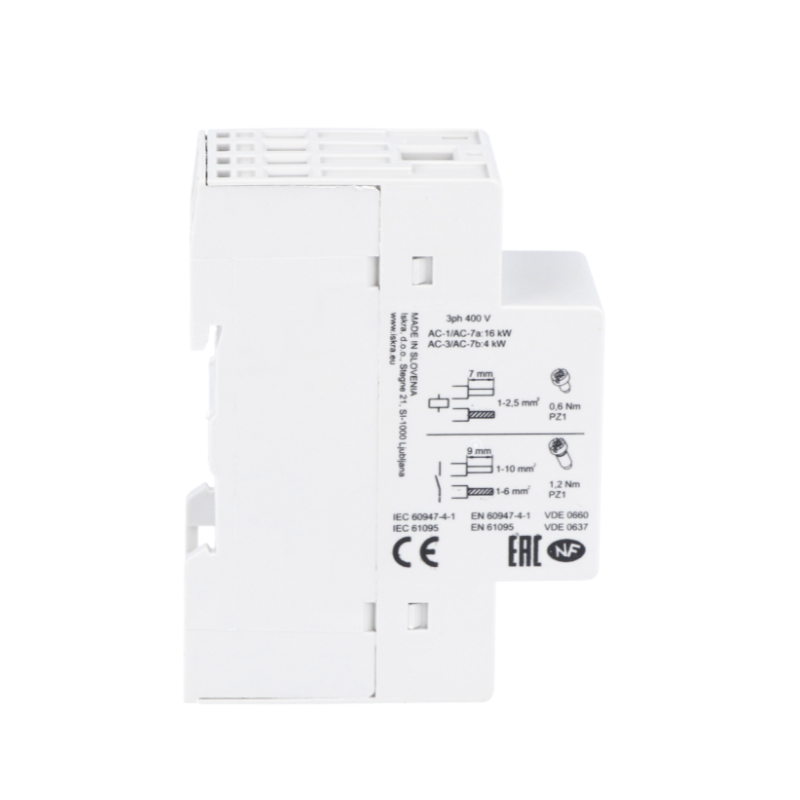

Lovato Modular Contactor 25A AC1 4NO 24VAC/DC 2 Modules CN2510024
LOV CN2510024
8013975143766
Lovato modular contactor, with the following characteristics:
- Rated auxiliary voltage Us : 24V AC/DC
- Rated insulation voltage Ui IEC/EN 440V
- Rated impulse withstand voltage Uimp Kv 4
- Minimum switching capacity : ≥17V ≥50mA
- Power dissipation per pole (average value) Ith 2W
- Auxiliary contacts : 4
- Type of operating voltage AC/DC
- Number of poles 4
- Number of DIN modules 2
- IEC Conventional free air thermal current Ith UN 25
- Operating current AC1 and AC-7a ≤400V UN 25A
- Operating current AC3 and AC-7b ≤400V UN 8.5
€31.58
Items Available: 10
: 3
Other technical features:
- Mechanical life cycles 3000000
- Electrical life AC3 cycles 500000
- Electrical life AC1 cycles 200000
- Operating temperature: -25/+70°C
- Storage temperature: -30/+80°C
- Maximum altitude: m 2000
- Fixing: 35mm DIN rail
- Instrument Terminals PZ2
- Weight 260 grams
- Front IP rating IP20
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Poles: 4P
- Degree of protection: IP20
- Amps: 25A
